Operation
23.2 VOIS and CAPDIS indications
DANGER
Hazardous voltage
Will cause death, injury or property damage.
Only valid for voltage indicators CAPDIS-S1+/S2+.
➭ Do not modify the factory setting of the C2 module in the voltage detecting system
CAPDIS-S1+/S2+ except with consultation with the regional Siemens representative.
➭ If the setting of the C2 module was modified by mistake, re-establish the factory setting as
follows:
- Pull out the C2 module at the rear side of CAPDIS-S1+/S2+.
ATTENTION: Open printed circuit board may be energized.
- Plug the C2 module into CAPDIS-S1+/S2+ so that the marked arrow on the housing
points to the marking on the C2 module.

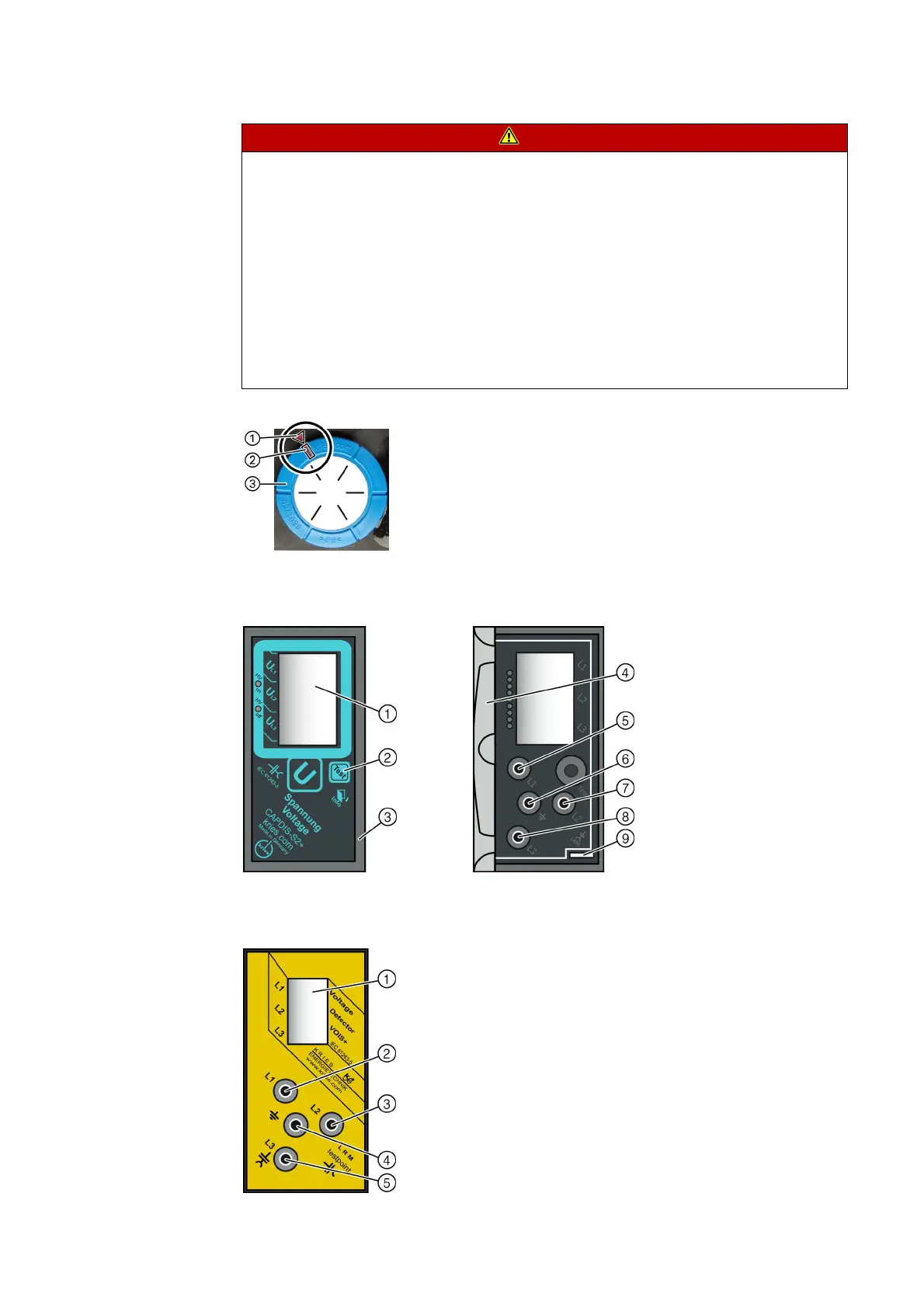

Fig. 169: Marking of the factory setting on
the C2 module (example)
①
Arrow
②
Marking on the C2 module
③
C2 module
Fig. 170: CAPDIS-S2+: Cover
closed
Fig. 171: CAPDIS-S2+: Cover
opened
①
LC display
②
"Test" button
③
Cover
④
Short instructions
⑤
Test socket L1
⑥
Earth socket
⑦
Test socket L2
⑧
Test socket L3
⑨
Duct for signaling
cables CAPDIS-M
Fig. 172: VOIS+: Cover opened
①
LC display
②
Test socket L1
③
Test socket L2
④
Earth socket
⑤
Test socket L3
