Siemens NXPLUS C User Manual

Operation
204/293 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • 802-9081.9
➭ Refit the covers on the plug-in sockets.
The marking for documentation of the repeat test of the interface condition is located next to
the LRM plug-in sockets:

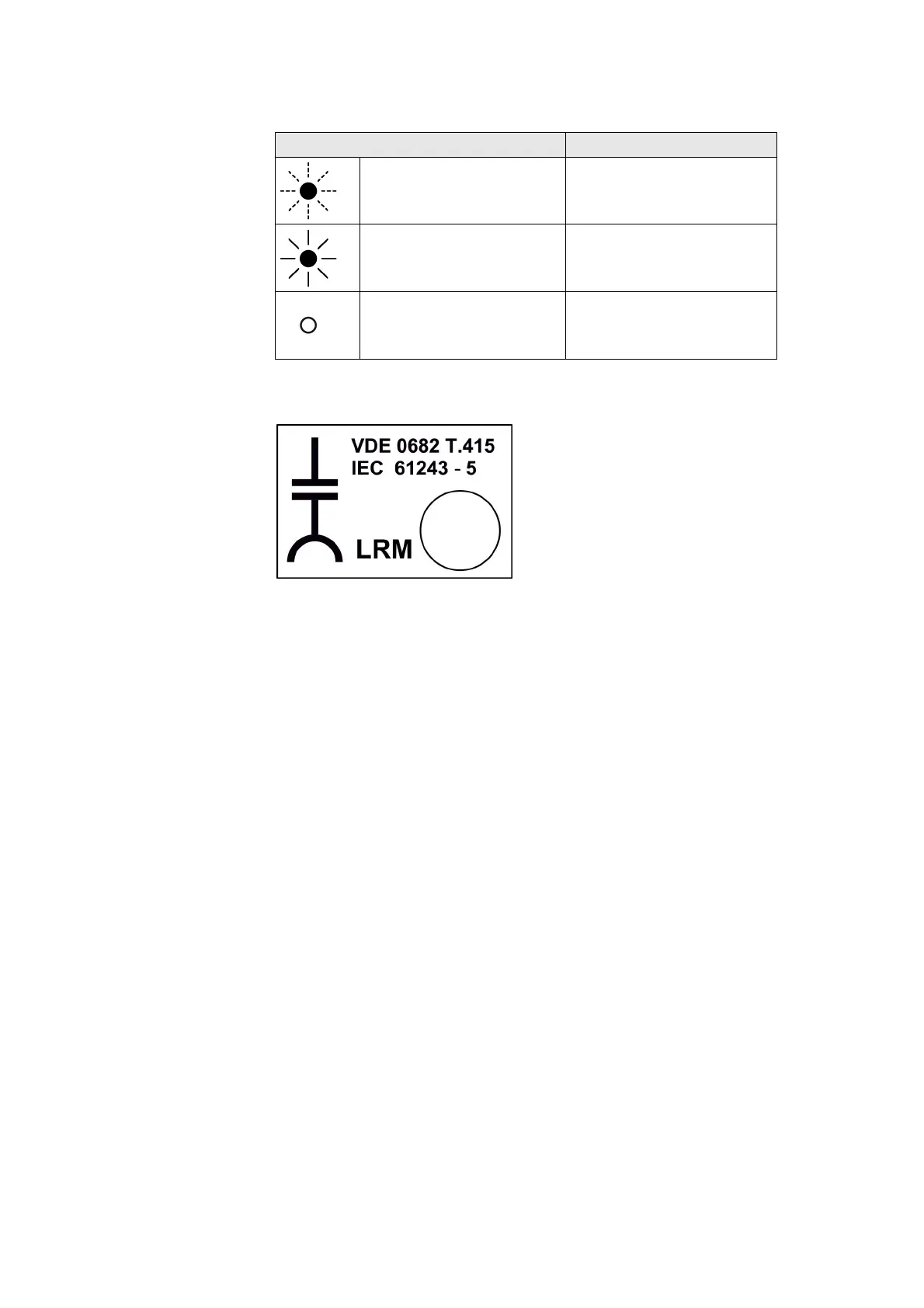

Fig. 168: Documentation to repeat test of interface condition
Indication of LRM voltage indicator Description of the indication
Indication flashes Phase not isolated from supply
Indication lights up Phase not isolated from supply
No lighting up or flashing of the
indication
Phase isolated from supply

Siemens NXPLUS C Specifications

General

Rated voltage	Up to 24 kV
Rated frequency	50/60 Hz
Protection degree	IP4X
Insulation medium	SF6
Standards	IEC 62271-200
Operating mechanism	Spring-operated
