26.2 Operating circuit breaker panels (900 mm panel width)

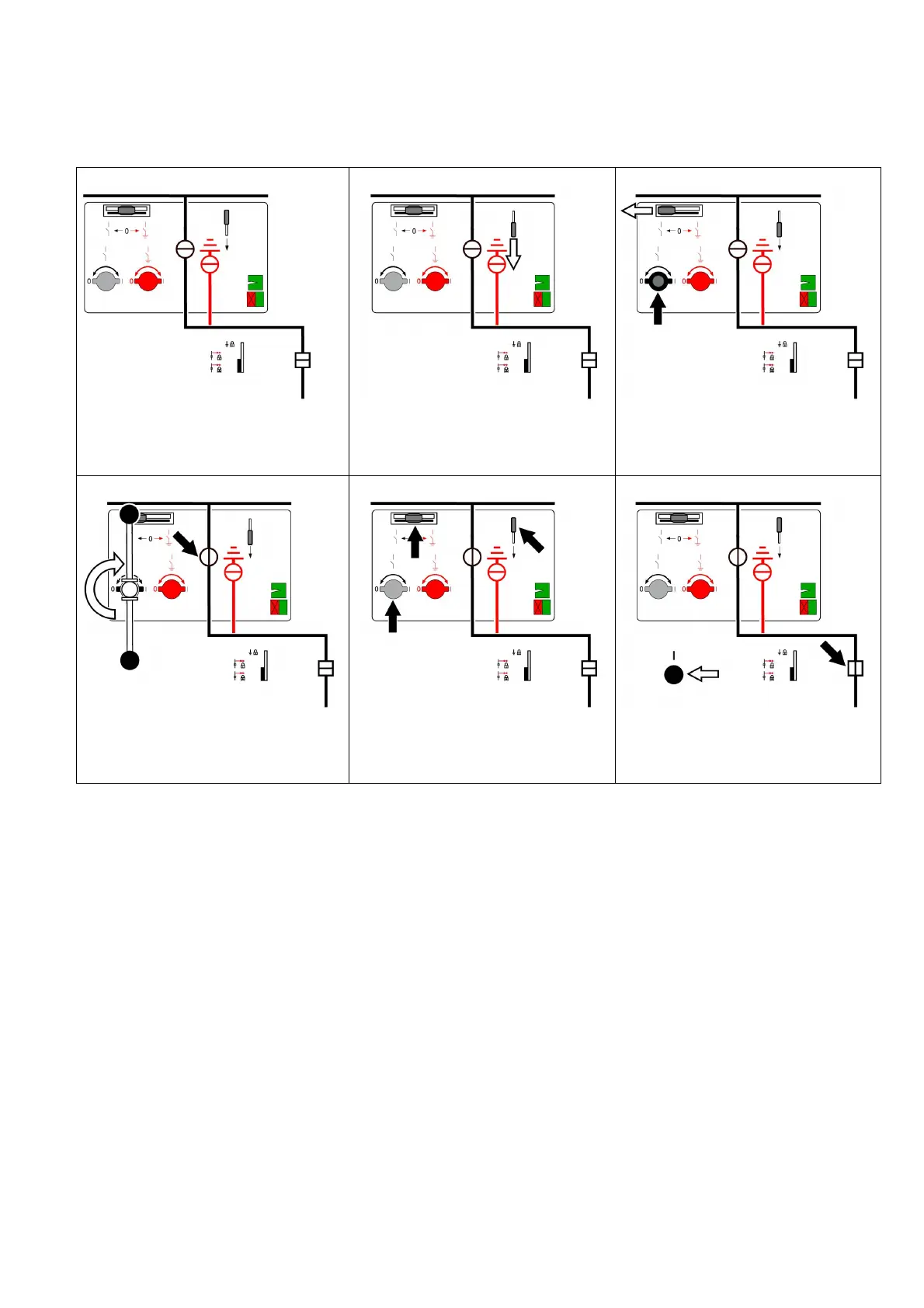

Circuit-breaker panel: Connecting the feeder to the busbar
1
Initial situation
2
➭ Push the interrogation lever downwards
and hold it.
3
➭ Push the control gate to the left and hold it
(the interrogation lever locks in lower
position. The actuating opening for the
DISCONNECTING function opens).
4
➭ Switch the three-position disconnector to
CLOSED position (insert the operating lever
and turn 90° clockwise).
5
➭ Remove the operating lever (the
interrogation lever and the control gate
return to their initial position. The actuating
opening closes).
6
➭ To connect the feeder to the busbar, close
the circuit-breaker.
