Siemens NXPLUS C User Manual

802-9081.9 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • Revision 11 219/293
Operation

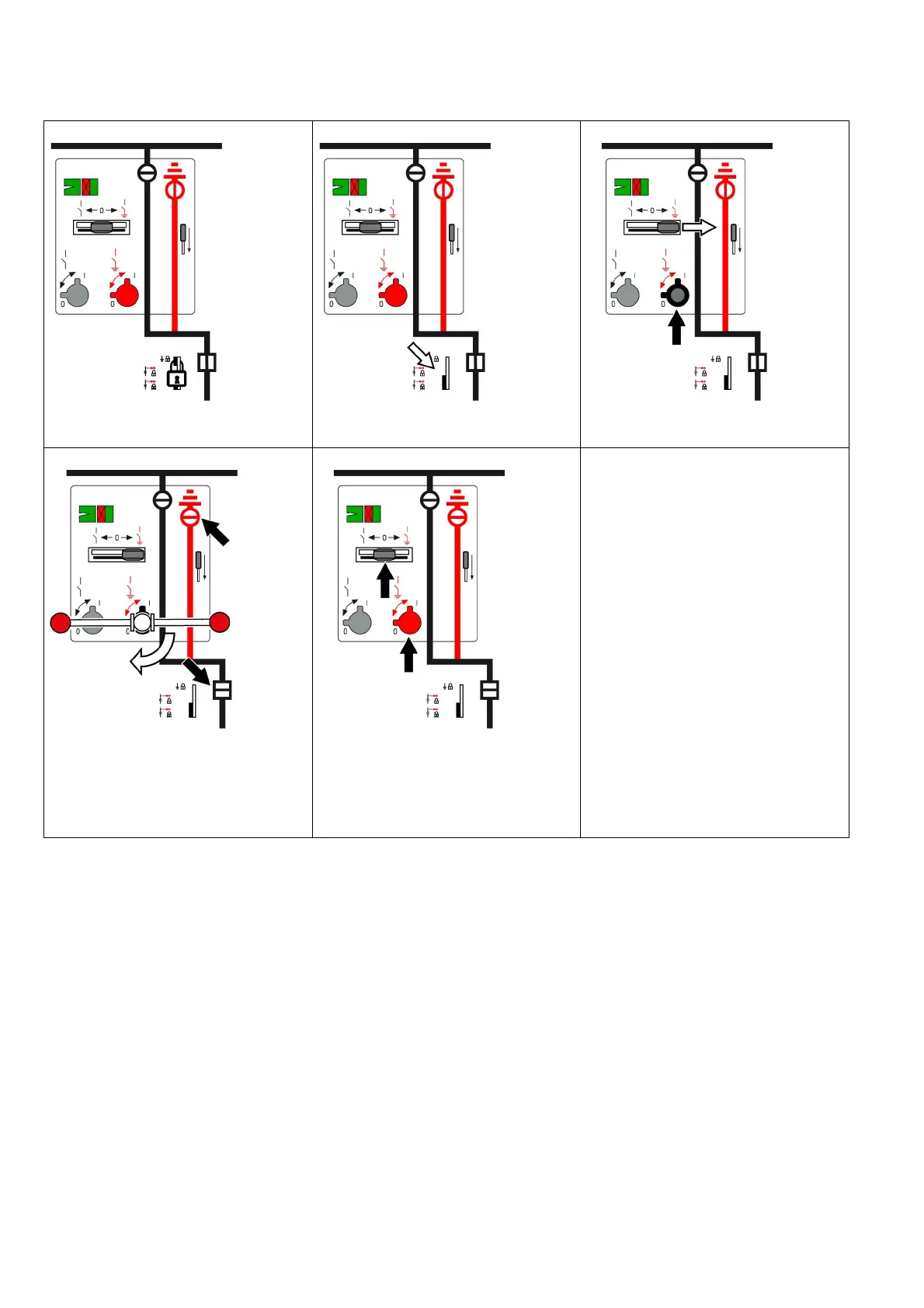

Circuit-breaker panel: De-earthing the feeder with forced sequence circuit
1
Initial situation
2
➭ Remove the padlock (the locking device
goes down).
3
➭ Push the control gate to the right and hold
it.
4
➭ Switch the three-position disconnector from
READY-TO-EARTH to OPEN position (turn
operating lever 90° counter-clockwise).The
circuit-breaker opens automatically
before the three-position disconnector
opens.
5
➭ Remove the operating lever (the control
gate returns to its initial position).
