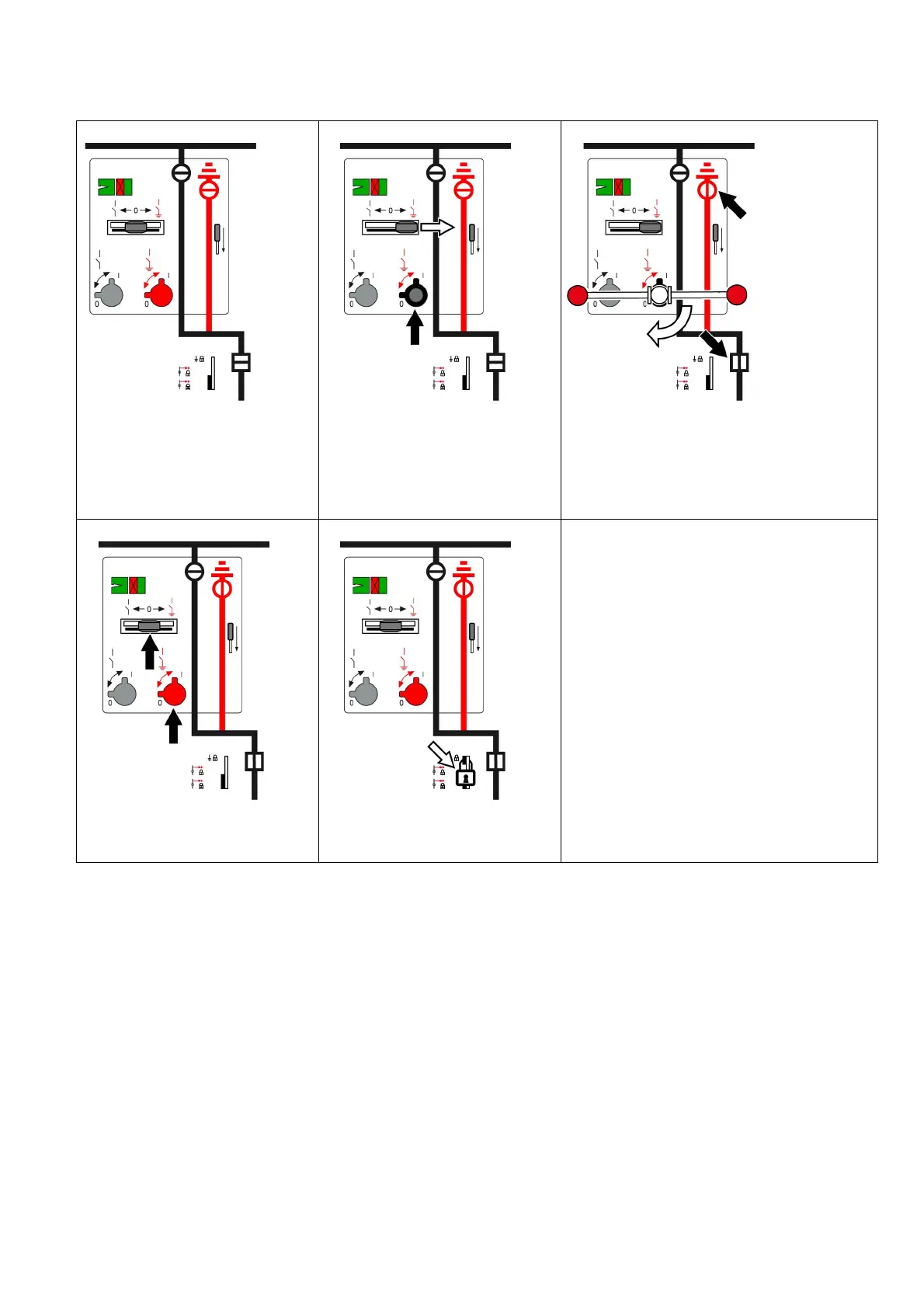

Circuit-breaker panel: Earthing the feeder with forced sequence circuit
1
Initial situation
2
➭ Push the control gate to the right and
hold it (the actuating opening for the
READY-TO-EARTH function opens).
3
➭ Switch the three-position disconnector to READY-TO-
EARTH position (insert the operating lever and turn
90° clockwise).
The circuit-breaker closes automatically (time relay
adjustable; factory setting: 1 s).
The feeder is earthed.
4
➭ Remove the operating lever (the
control gate returns to its initial
position).
5
➭ Push the locking device upwards and fit
a padlock.
