Siemens NXPLUS C User Manual

802-9081.9 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • Revision 11 217/293

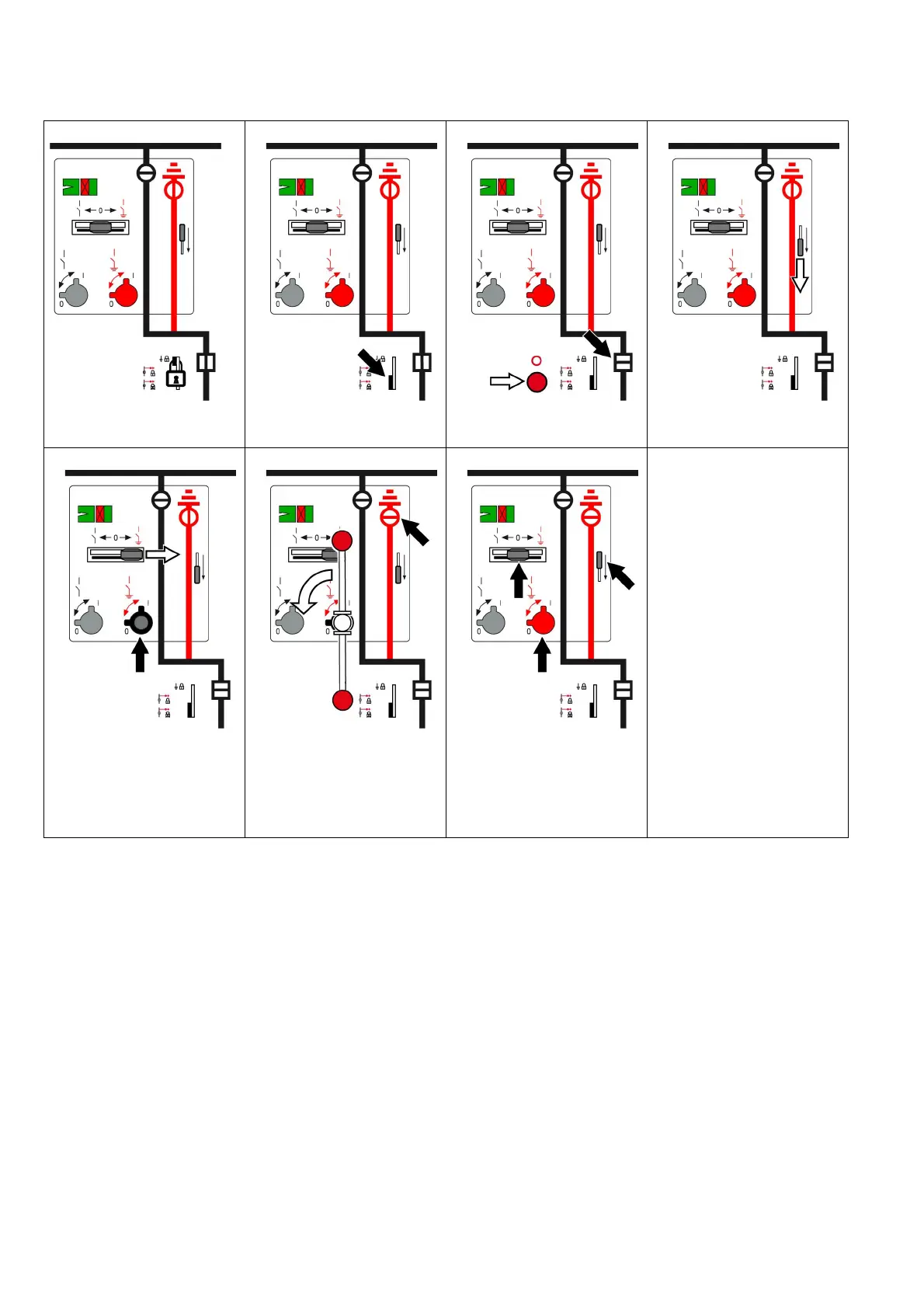

Operation
Circuit-breaker panel: De-earthing the feeder
1
Initial situation
2
➭ Remove the padlock (the
locking device goes down).
3
➭ To de-earth the feeder, open
the circuit-breaker.
4
➭ Push the interrogation lever
downwards and hold it.
5
➭ Push the control gate to the
right and hold it (the
interrogation lever locks in
lower position. The actuating
opening for the READY-TO-
EARTH function opens).
6
➭ Switch the three-position
disconnector from READY-TO-
EARTH to OPEN position (insert
the operating lever and turn
90° counter-clockwise).
7
➭ Remove the operating lever
(the interrogation lever and the
control gate return to their
initial position).
