Installation
122/293 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • 802-9081.9
15.5 Mounting the busbar support
Busbar 1250 A Mount the busbar support:
• On panels of 31.5 kA design
• On panels with a busbar length > 700 mm.
Do not mount the busbar support:
• On panels with busbar current transformers
Busbar 1600 A,
2000 A, 2500 A
Mount the busbar support:
• On all panels of 31.5 kA design
• Mount the busbar support at the upper busbar level according to the enclosed installation
instructions
Do not mount the busbar support:
• On bus sectionalizer panels
• On right-hand end panels
• On panels with busbar current transformers
Circuit-breaker panel (450 mm) and auxiliary transformer panel

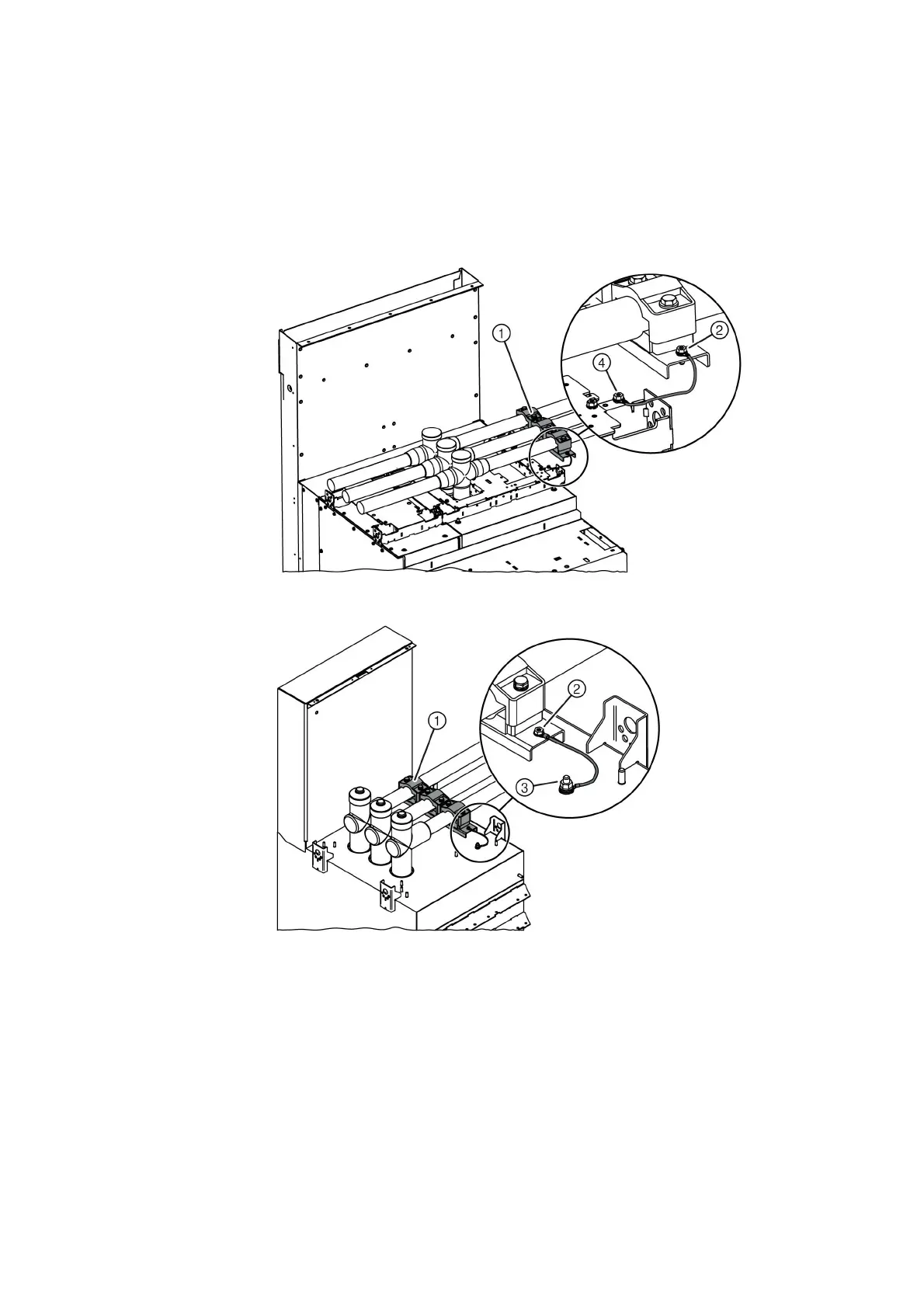

Fig. 79: Busbar support in the auxiliary transformer panel
All other panel types
Fig. 80: Busbar support 1250 A
①
Busbar support
②
Earthing connection at the busbar support
③
Earthing connection of switchgear vessel (welded stud)
④
Earthing connection at the transformer mounting plate (with bolts)
