Installation
Fig. 137: Completed protection against vertically falling water drops
Mounting the protection against vertically falling water drops on end panels
INFORMATION
In end panels, the angle plate must be mounted underneath the termination angle.
➭ If the termination angle is pre-assembled, remove the termination angle in advance.
➭ After mounting the angle plate, refit the termination angle.

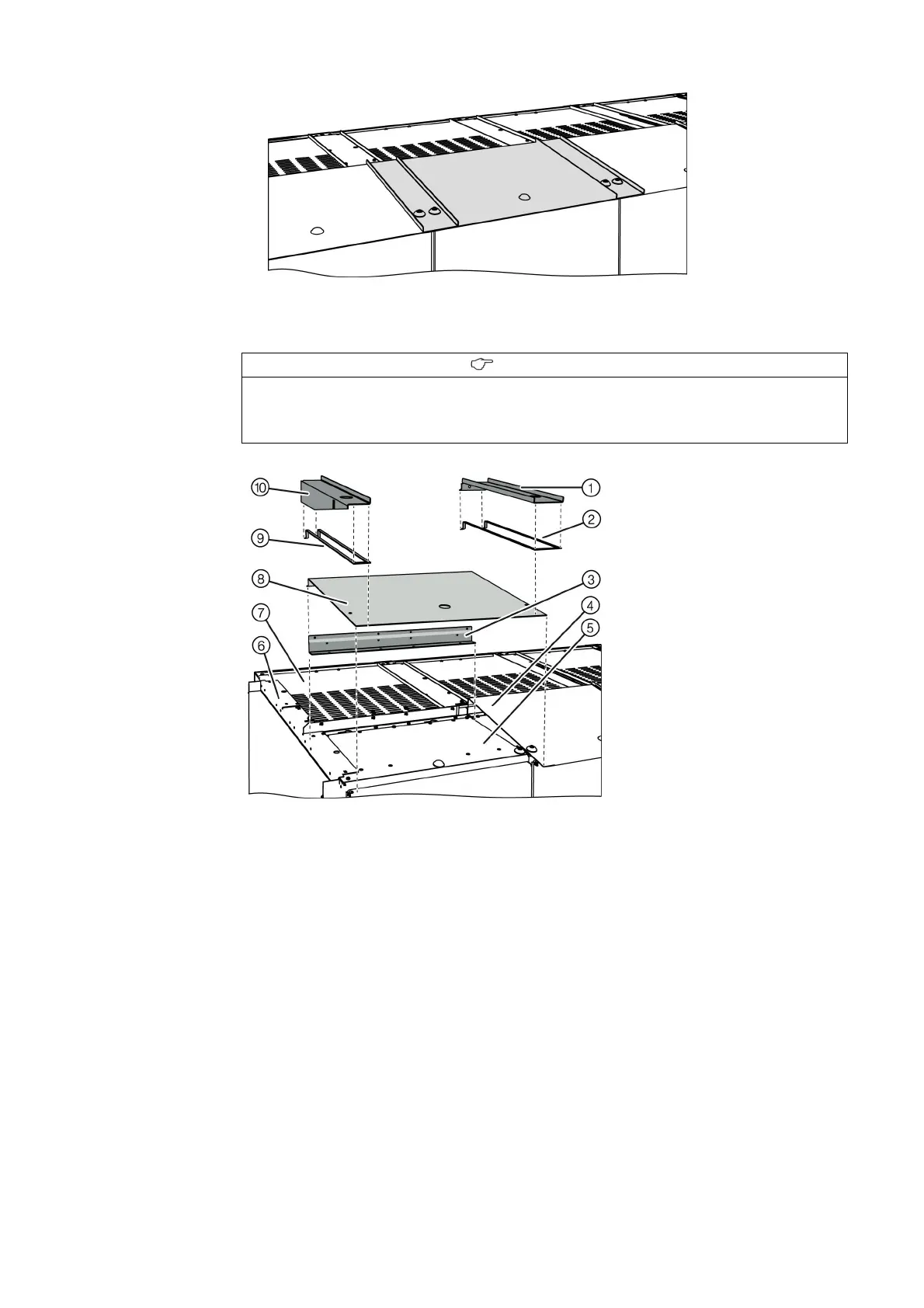

Fig. 138: Mounting the protection against vertically falling
water drops on the left end panel
①
Connecting plate
②
Sealing strap for connecting
plate
③
Angle plate with sealing strap
④
Mounted roof plate
⑤
Low-voltage compartment
⑥
Termination angle
⑦
Busbar cover
⑧
Roof plate
⑨
Sealing strap for left end plate
⑩
Left end plate
