Installation
172/293 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • 802-9081.9

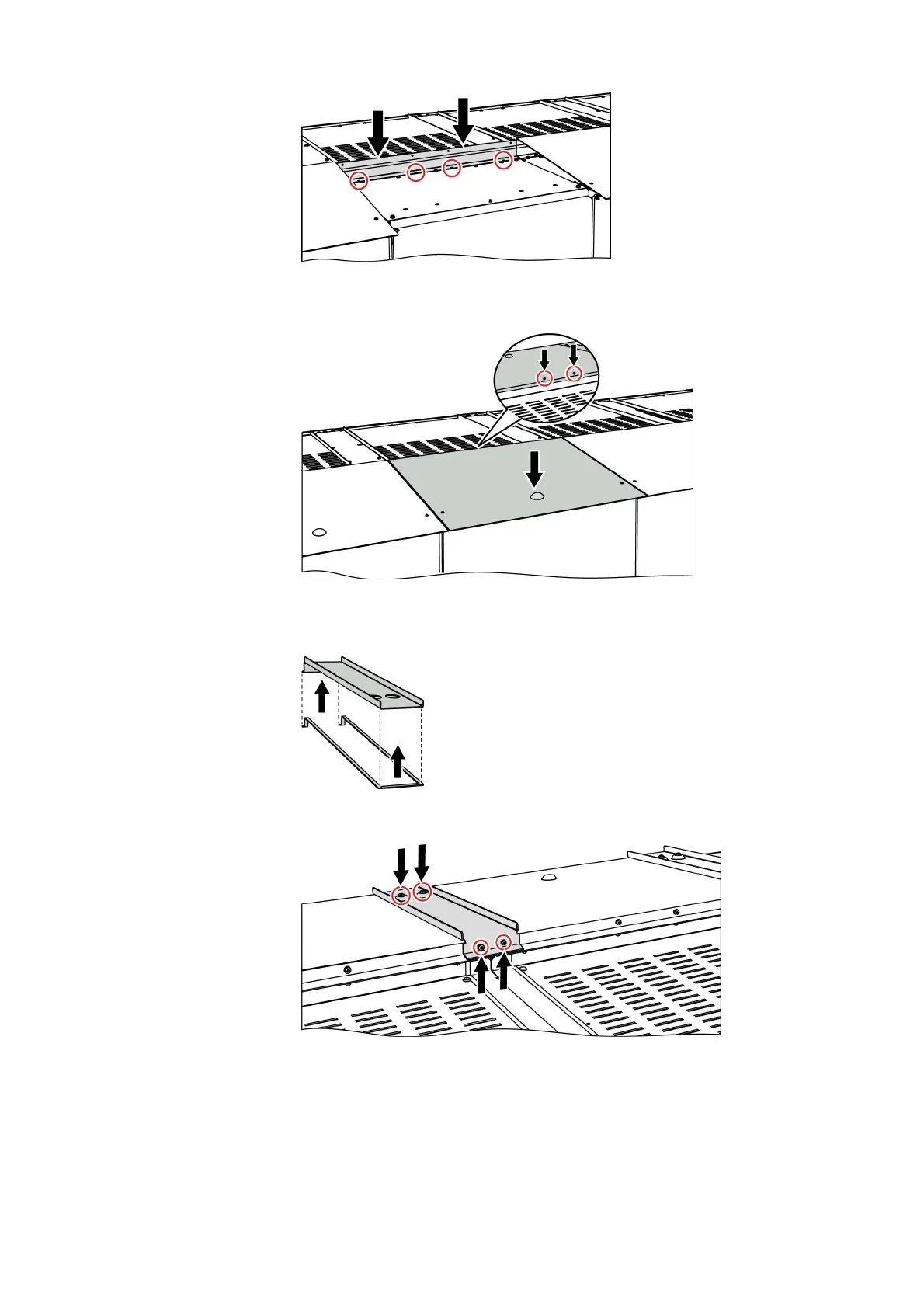

Fig. 134: Mounting the angle plate
➭ Align the roof plate on the low-voltage compartment, and fasten it.
Fig. 135: Fastening the roof plate (view from the rear)
➭ Stick sealing strap on connecting plates.
➭ Bolt the connecting plates together with the roof plates and the angle plates on the right
and on the left. To do this, use 4 self-tapping bolts M5x16.
Fig. 136: Fastening the connecting plates (view from the rear)
