Installation

112/293 Revision 11 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • 802-9081.9

Phase sequence

①

Mounting plate of low-

voltage compartment

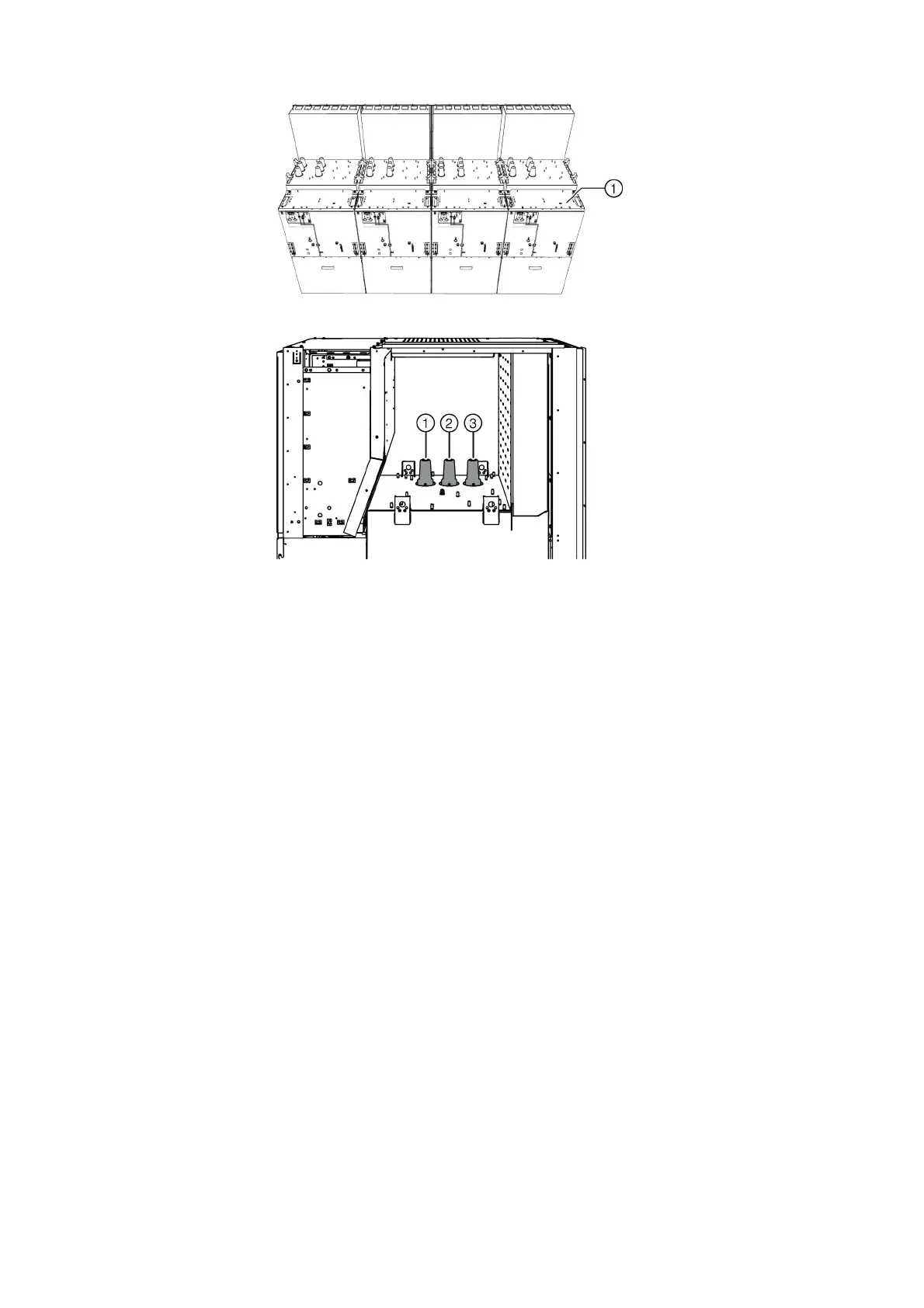

Fig. 69: Phase sequence of bushings (view from the right)

①

Phase L1

②

Phase L2

③

Phase L3

Default Chapter3
