802-9081.9 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • Revision 11 117/293
Installation

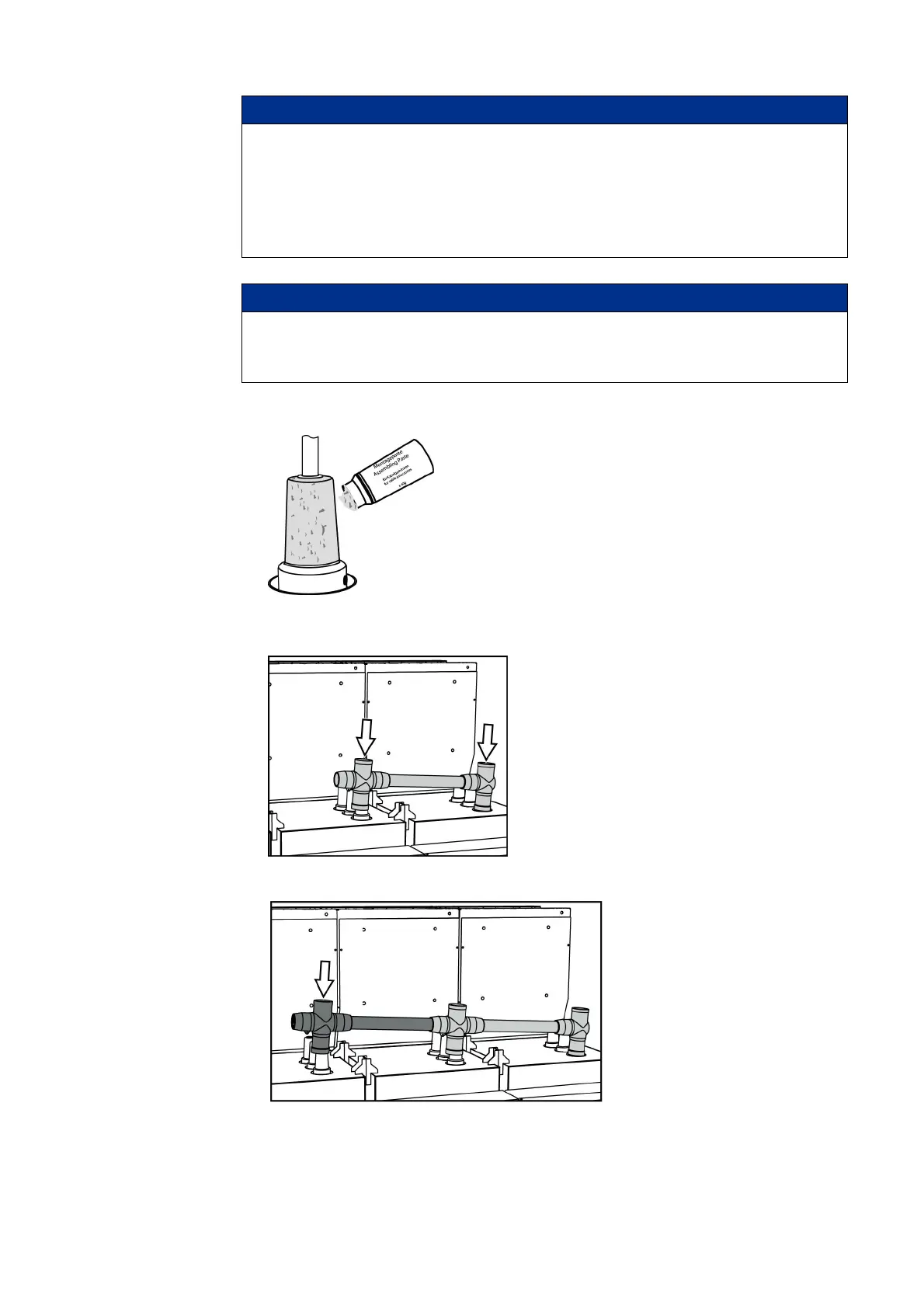

Mounting the busbar run
➭ Apply mounting paste to the bushing.
➭ Plug the busbar section loosely over the threaded studs on the bushings of the first two
panels.
➭ Insert another busbar section into the first busbar section.
➭ Insert further busbar sections until the complete busbar run is loosely plugged on the
bushings.
NOTICE
Pollution through abrasion
Can lead to flashovers and damage the switchgear.
Abrasion can be produced by canting of the busbar units when pushing them onto the
bushings.
➭ Do not cant busbar units.
➭ Push busbar units carefully and slowly onto the bushings.
NOTICE
Damage to the end adapters or cross adapters caused by the threaded stud
Can lead to flashovers and damage the switchgear.
➭ Avoid touching the threaded stud while pushing on the end adapters or cross adapters.
