802-9081.9 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • Revision 11 125/293
Installation
Installation on
busbar ≥ 1600 A
For busbars with busbar current ≥ 1600 A, the current transformers are supplied with the
accessories.

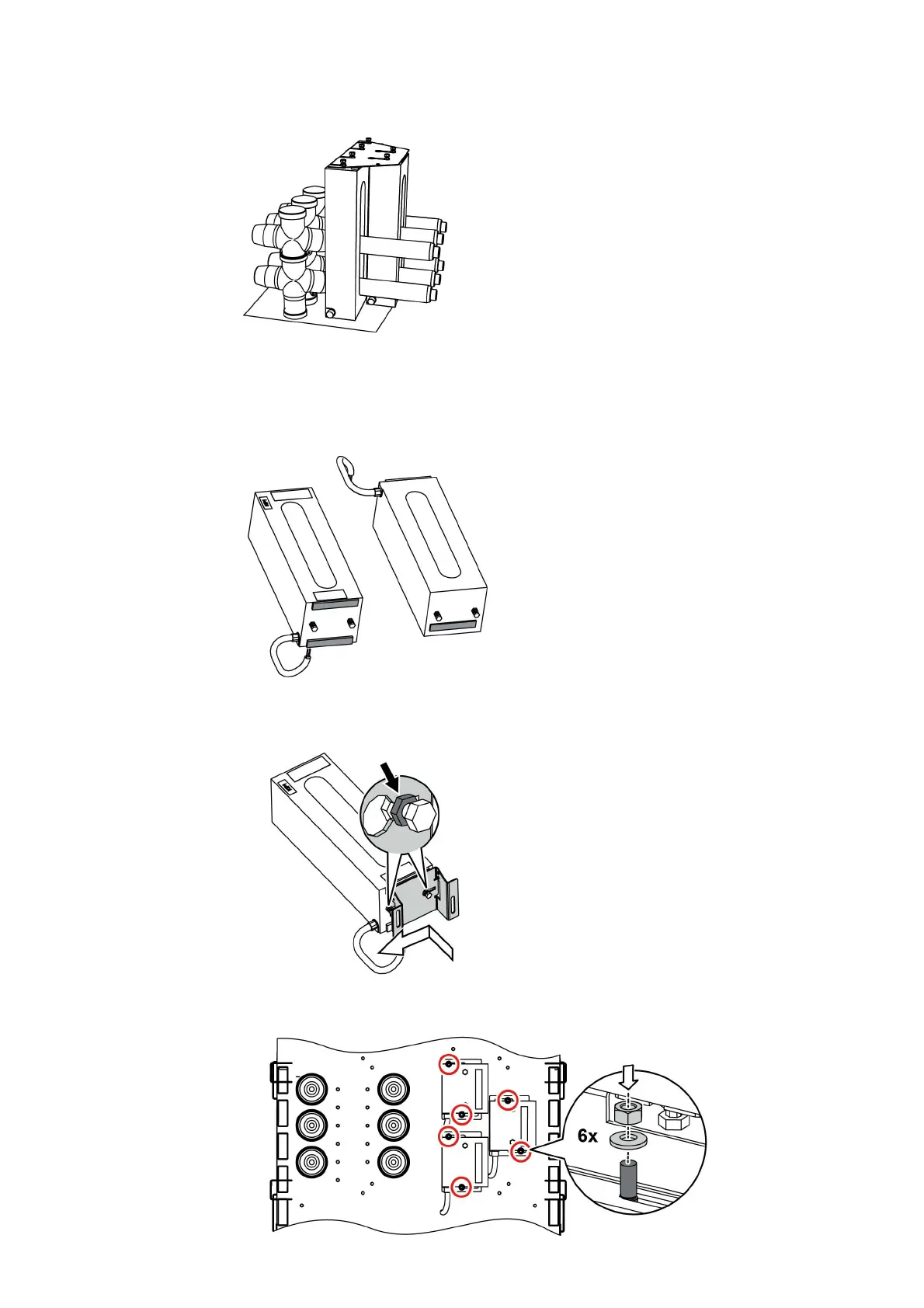

Fig. 85: Installed busbar current transformers ( ≥ 1600 A)
➭ Cut the felt strips to size and stick 2 of them at the bottom and 1 of them on top of the
current transformers.
➭ Place the current transformer mounting plate onto the current transformers and tighten the
nuts.
➭ Mount the current transformers on the switchgear together with the current transformer
mounting plate. While installing the current transformers, observe the direction of side P1.
At the bottom At the top
