Operation
Adapter for emergency
operation
➭ Push emergency operation adapter on operating lever for three-position switch.

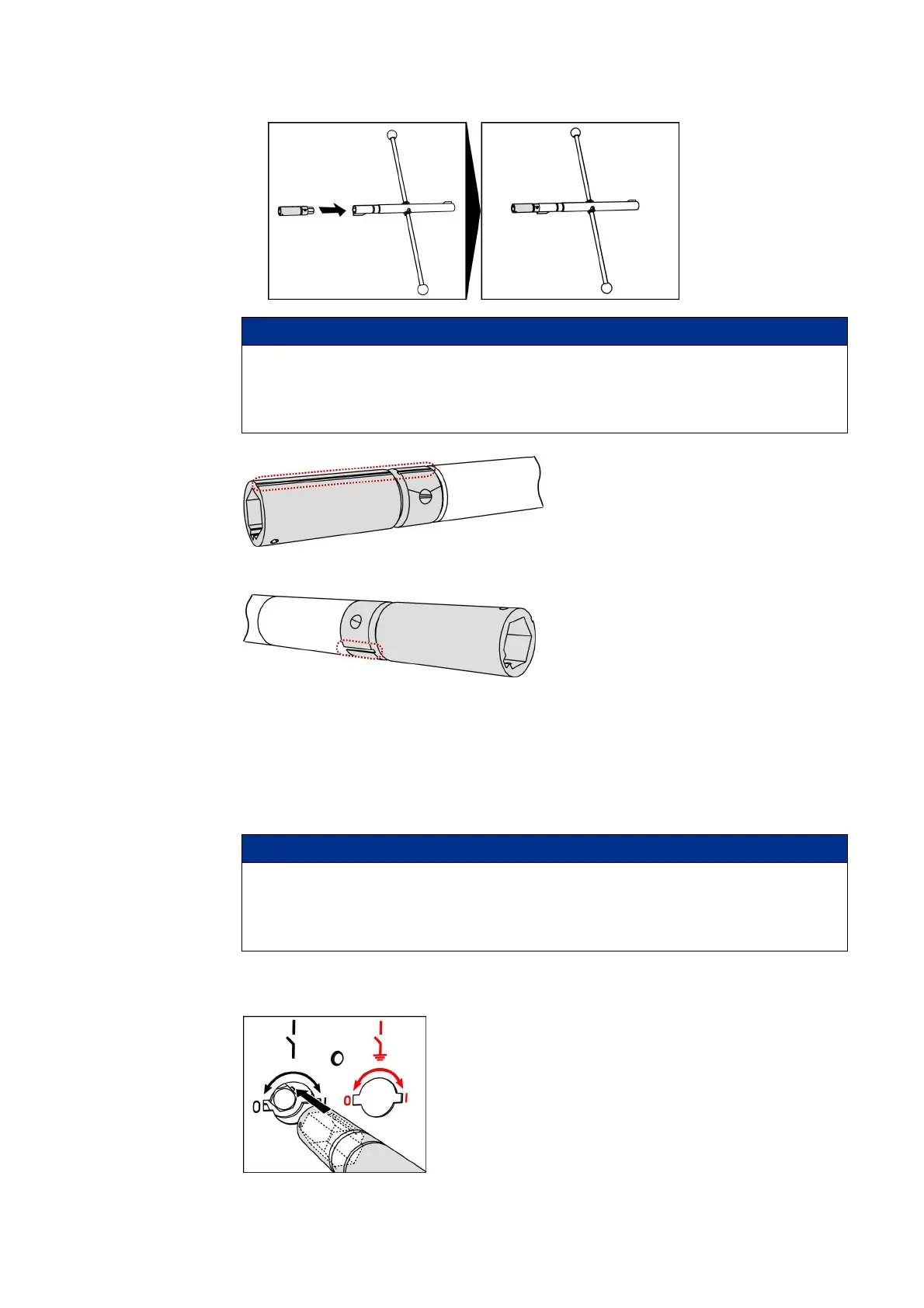

Fig. 162: Marking (long slot) on operating lever with pushed-on adapter
Fig. 163: Marking (short slot) on operating lever with pushed-on adapter
The noses of the operating lever are not significant for evaluating the position of the
operating mechanism.
End positions of the three-position switch while switching with the operating lever
with pushed-on adapter
Insert the operating lever with pushed-on adapter in such a way that the inner slot of the
adapter fits on the pin of the operating shaft.
Fig. 164: Inserting the operating lever with pushed-on adapter
NOTICE
Incorrect alignment of the operating lever
The noses of the operating lever can damage the position indicator or the operating
mechanism of the three-position switch.
➭ Align the operating lever with pushed-on adapter by the slots of the adapter.
NOTICE
The operating lever does not have a stop.
Switching beyond the end position of the three-position switch will damage the three-
position switch if the adapter is pushed on.
➭ Observe the markings on the adapter of the operating lever.
