802-9081.9 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • Revision 11 199/293
Operation

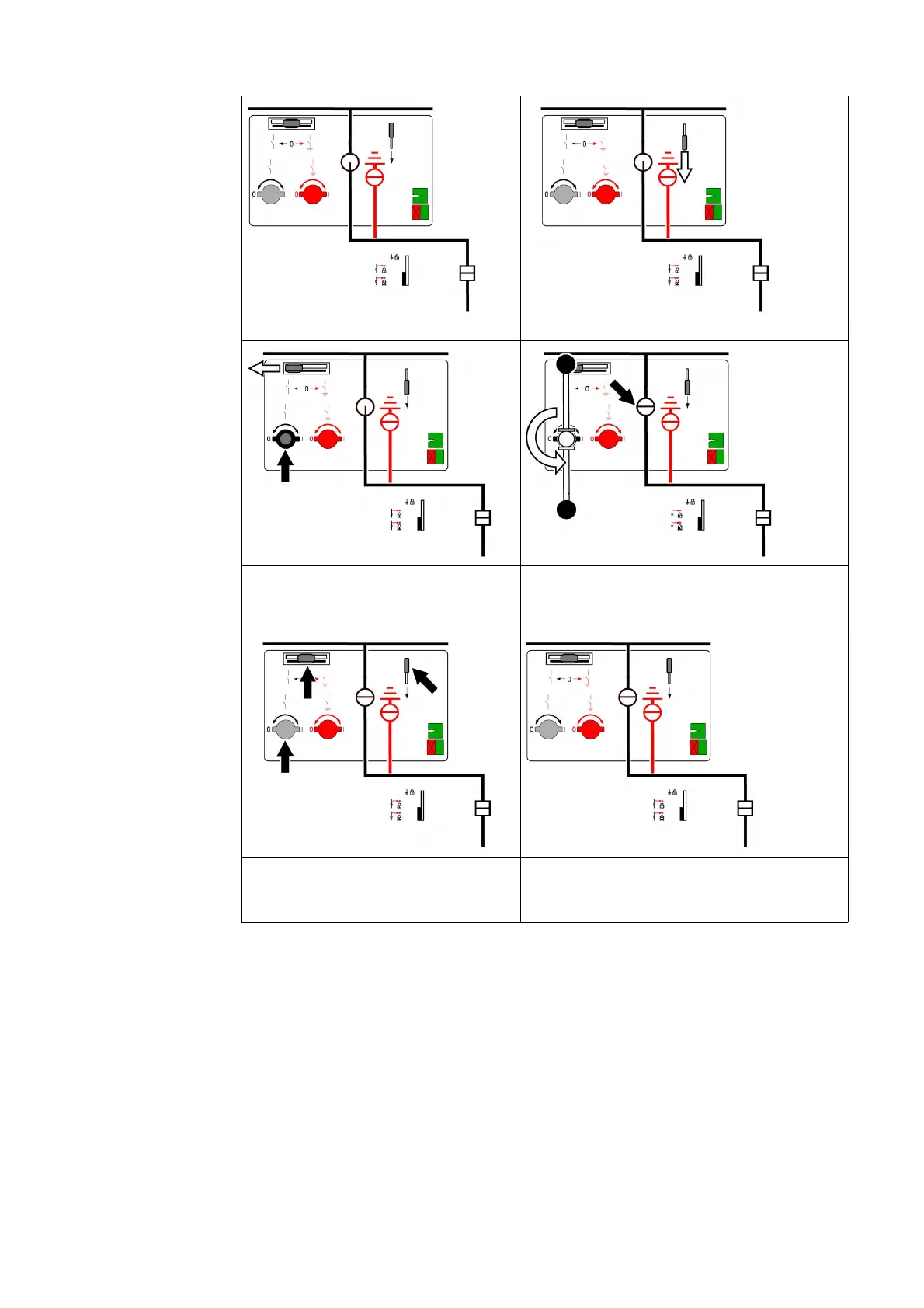

Initial situation Push the interrogation lever downwards and hold it
Push the control gate to the left (the interrogation
lever locks in lower position. The actuating
opening for the DISCONNECTING function opens)
To open the disconnector, insert the operating lever with
pushed-on adapter and turn counter-clockwise until the
slots at the adapter are horizontal to the actuating opening
(the position indicator is in OPEN position)
Remove the operating lever with pushed-on
adapter. (The interrogation lever and the control
gate return to their initial position. The actuating
opening closes)
End position
Remove the adapter from the operating lever and lay it back
into the service flap
