Siemens NXPLUS C User Manual

802-9081.9 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • Revision 11 215/293
Operation

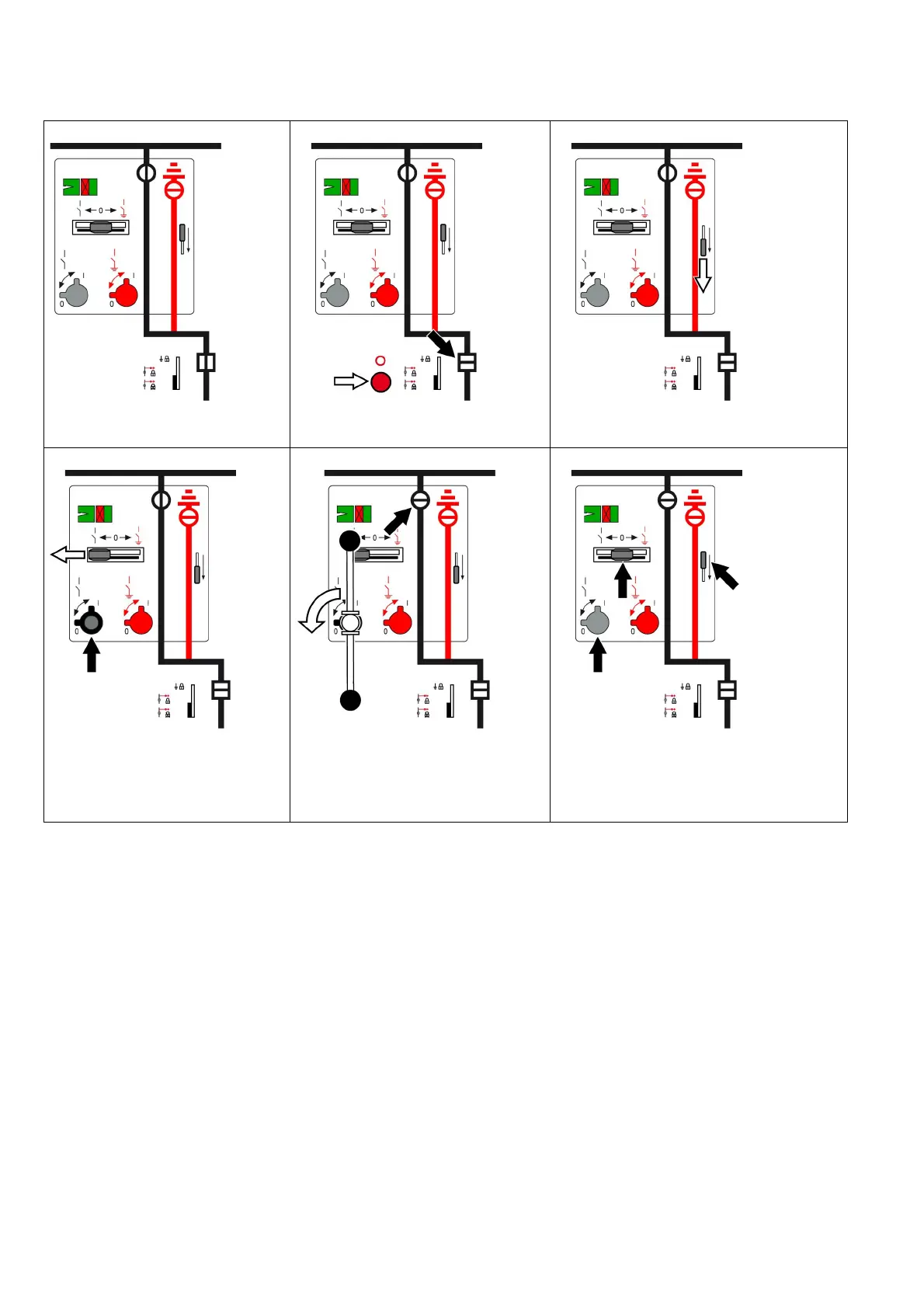

Circuit-breaker panel: Disconnecting the feeder from the busbar
1
Initial situation
2
➭ To disconnect the feeder from the busbar,
open the circuit-breaker.
3
➭ Push the interrogation lever downwards and hold
it.
4
➭ Push the control gate to the left and
hold it (the interrogation lever locks in
lower position. The actuating opening
for the DISCONNECTING function
opens).
5
➭ Switch the three-position disconnector to
OPEN position (insert the operating lever
and turn 90° counter-clockwise).
6
➭ Remove the operating lever (the interrogation
lever and the control gate return to their initial
position. The actuating opening closes).
