Siemens NXPLUS C User Manual

802-9081.9 • INSTALLATION AND OPERATING INSTRUCTIONS • NXPLUS C • Revision 11 231/293
Operation
Switch-disconnector, disconnector, ring-main or metering panels: Disconnecting the
feeder from the busbar

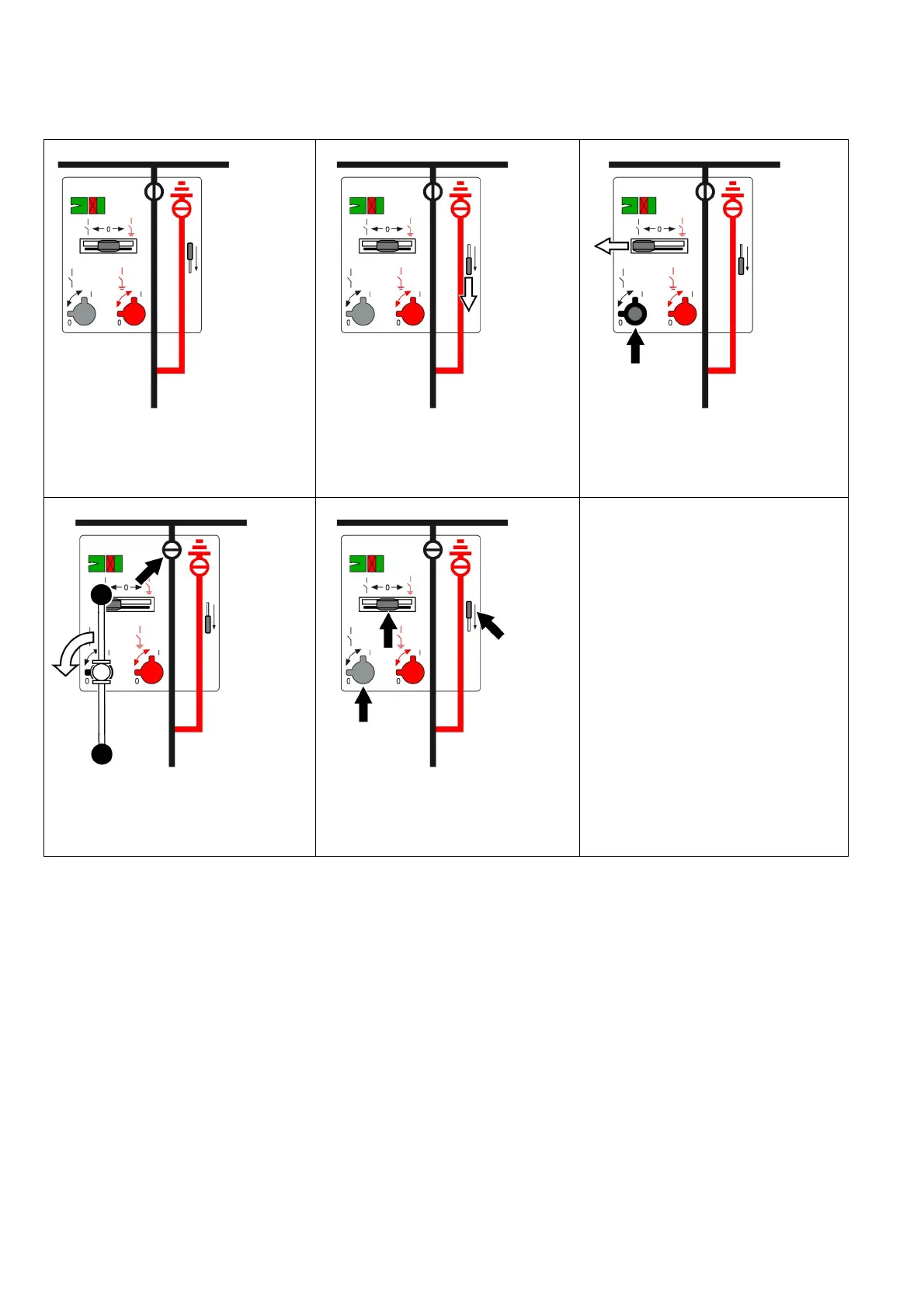

1
Initial situation
2
➭ Push the interrogation lever downwards
and hold it.
3
➭ Push the control gate to the left (the
interrogation lever locks in lower position.
The actuating opening for the
DISCONNECTING function opens).
4
➭ Switch the three-position switch-
disconnector to OPEN position (insert the
operating lever and turn 90° counter-
clockwise).
5
➭ Remove the operating lever (the
interrogation lever and the control gate
return to their initial position).
