Landis & Staefa Division CC1B7865E February 10, 2000 21/56
5. Operating modes
C111: XX1X ... XX3X
Outside sensor
Heating curve slope H
Setting: 0.0 ... 4.0
C112: XX0X
SP1 via buttons
C112: XX1X
SP1 via outside sensor
C111: XXX2
Section 5.4.4 "Exter-
nal setpoint, binary
setpoint shift"
C111: XXX1
Setpoint changeover
C111: XXX0
No function
Setpoint SP2
SP2 via buttons
C111: X6XX ... XAXX
Analog setpoint shift
SPL
SPH
C111
and
C112
are
described in chapter 8
Weather-dependent
setpoint shift:
No Yes
D2 open
D2 closed
+
Active setpoint
The setpoints SP1 and SP2 are
entered at the user level.
Section 6.2 "User level"
Connection of binary input D2
Section 4.2 "Assignment of terminals"
7865f05e/1199

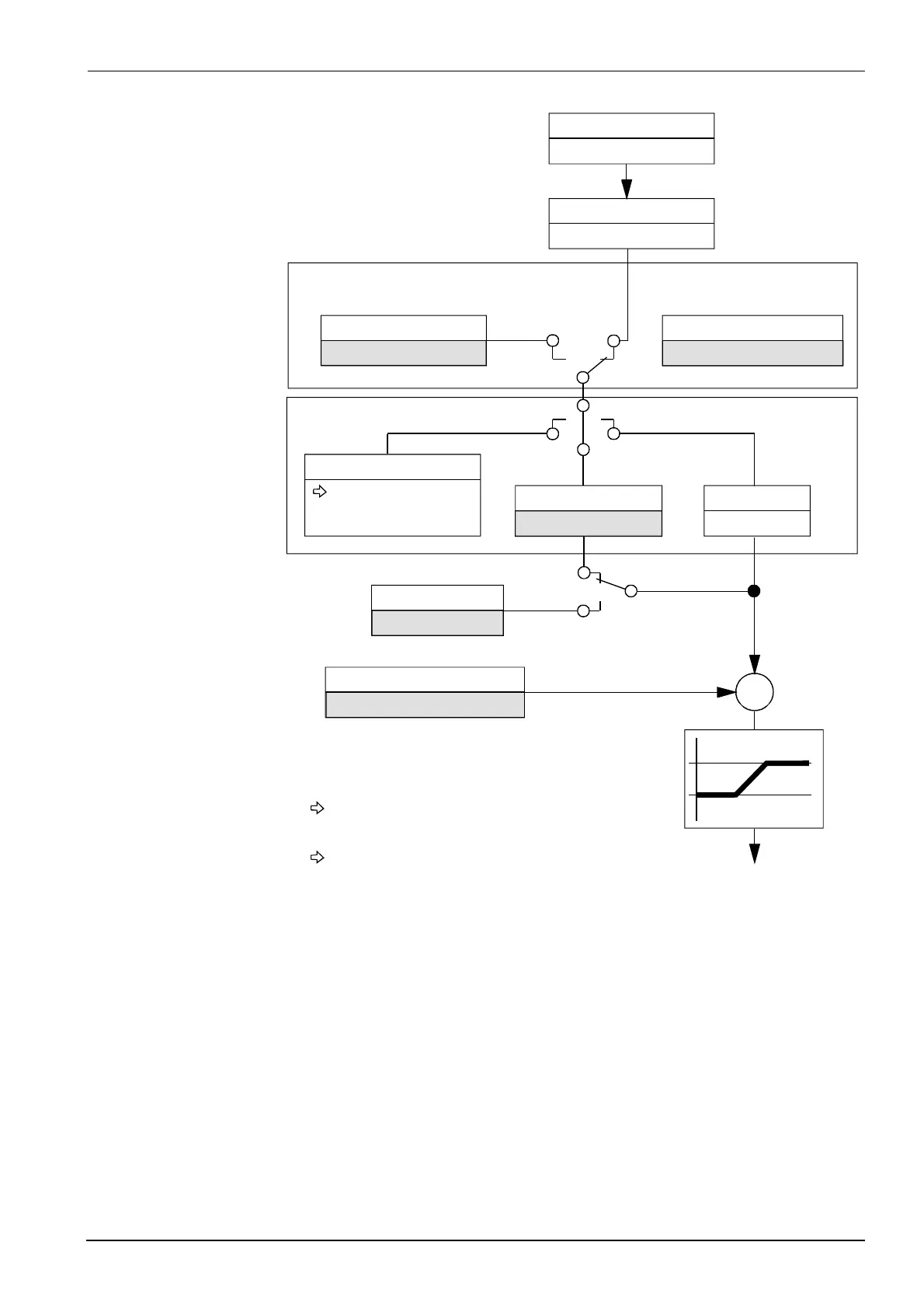

5.4.1 Setpoint changeover «SP1 / SP2», analog setpoint shift
)
