Siemens RWF40 Series User Manual

Landis & Staefa Division CC1B7865E February 10, 2000 25/56
5. Operating modes
The RWF40... can be configured in such a way that if a Landis & Staefa Ni1000 outside
sensor (e.g. QAC22) is connected, a weather-dependent setpoint shift is implemented.
The minimum and maximum setpoint values can be set by the lower setpoint limit
«SPL» and the upper setpoint limit «SPH». Parameter «P» can be used to apply a
parallel displacement to the heating curve.
*
Each RWF40... must have its own separate outside sensor connected (no
parallel connection)!
Ö
Chapter 7 «Parameter settings»
0
20
40
60
80
100
120
140
160
4
3.8
3.6
3.4
3.2
3
2.8
2.6
2.4
2.2
2
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
20
17.5
12.5
10
7.5
5
2.5
0
-2.5
-5
-7.5
-10
-12.5
-15
-17.5
-20
15
7865d02e/1199
Boiler temperature setpoint (°C)
Outside temperature (°C)
Heating curve slope
SPL
SPH

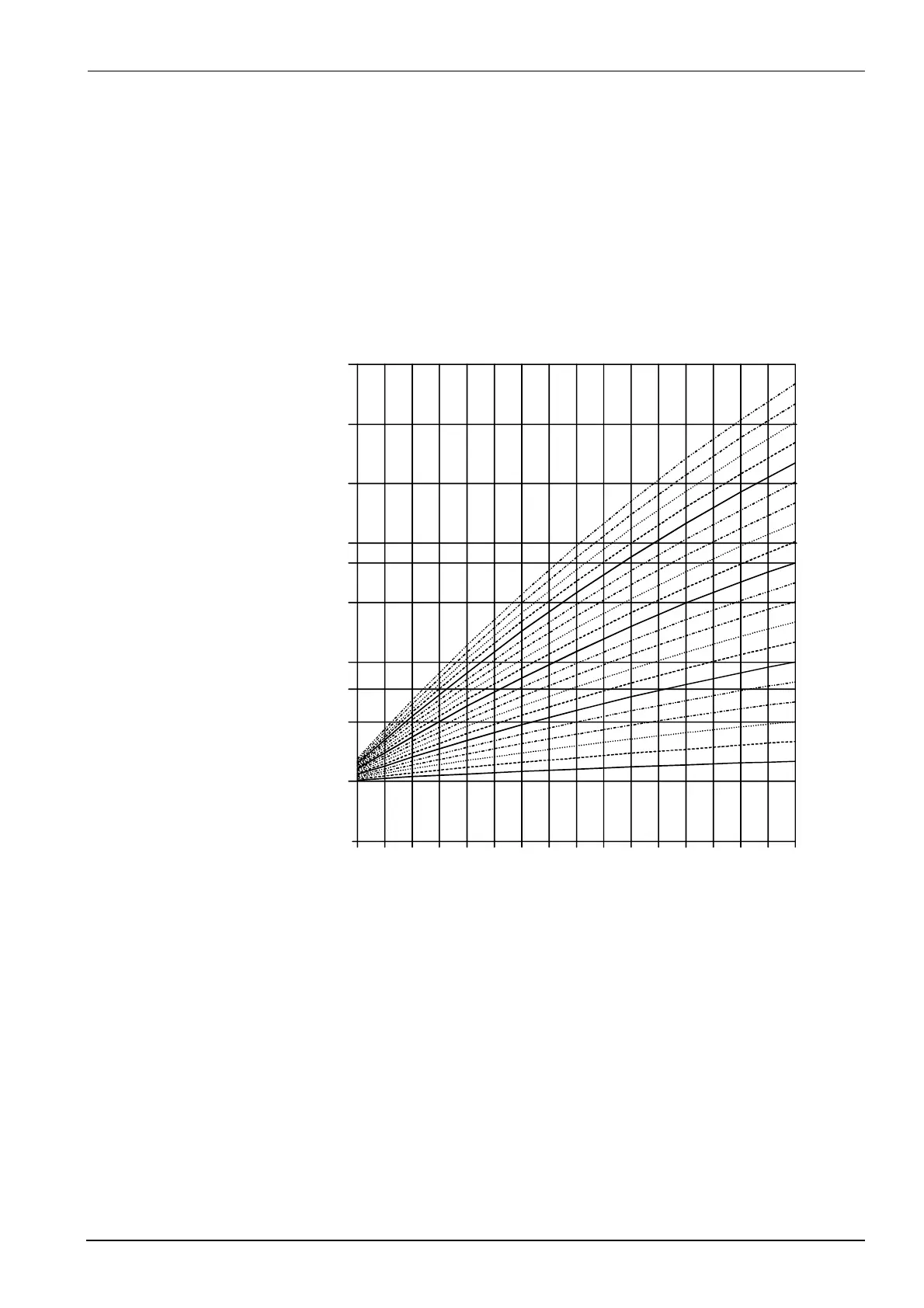

5.5 Weather-dependent setpoint shift
Parallel displacement of
the heating curve
