6. Operation
All levels can be accessed from the basic display via the
PGM
button, as shown in the
diagram.
The upper actual value display (red) indicates the actual value and the parameter values
for the various levels.
The setpoint and the parameters are indicated in the lower setpoint display (green).

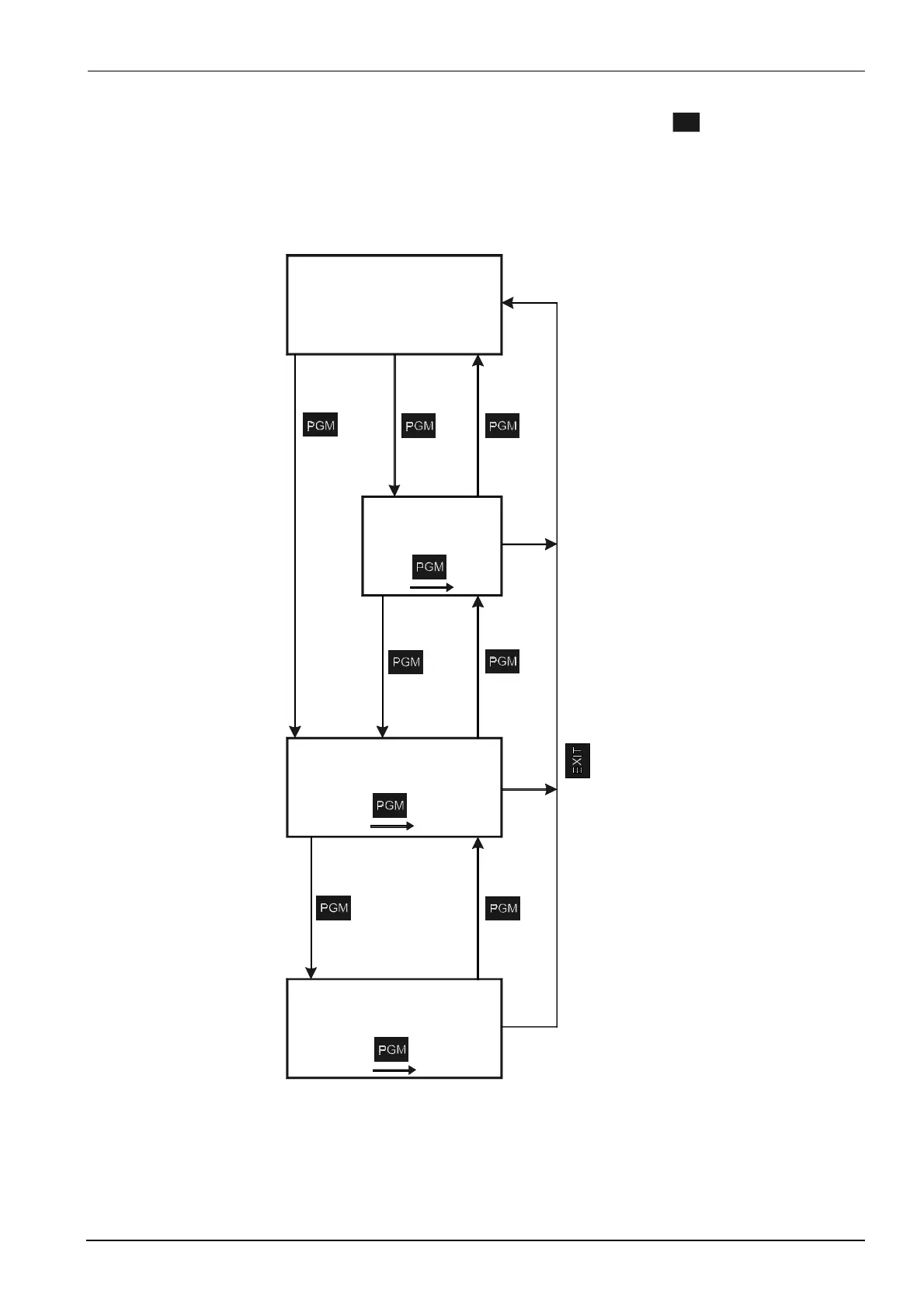

BASIC DISPLAY
USER
LEVEL
PARAMETER LEVEL
CONFIGURATION
LEVEL
1.
1.
1.
Min. 2 s
Min. 2 s
Min. 2 s
or time-out (approx. 30 s)
7865f08e/1299
1)
After using «PGM» to step through all the parameters of a level, an automatic return
occurs after the last parameter has been confirmed.
