40/56 CC1B7865E February 10, 2000 Landis & Staefa Division
8. Configuration
0000
C112
7865p04/020
0
Limit comparator
No function (lk off) 0
lk1, input 1 1
lk2, input 1 2
lk3, input 1 3
lk4, input 1 4
lk5, input 1 5
lk6, input 1 6
lk7, input 1 7
lk8, input 1 8
lk7, input 2 9
lk8, input 2 A
lk7, input 3 b
lk8, input 3 C
Controller type
3-position controller 0
Modulating controller DC 0…20 mA 1
Modulating controller DC 4…20 mA 2
Modulating controller DC 0...10 V 3
Setpoint «SP1»
«SP1» via buttons 0
«SP1» with outside sensor (analog input 3 must be configured) 1
Locking
No locking 0
Locking of configuration level 1
Locking of parameter level 2
Locking of buttons
3
*
Locking of the buttons can be entered only
once
and adapted with
PGM
. After this,
all button operations are locked and can only be enabled again by the manufacturer!
Factory setting 0 0 1 0

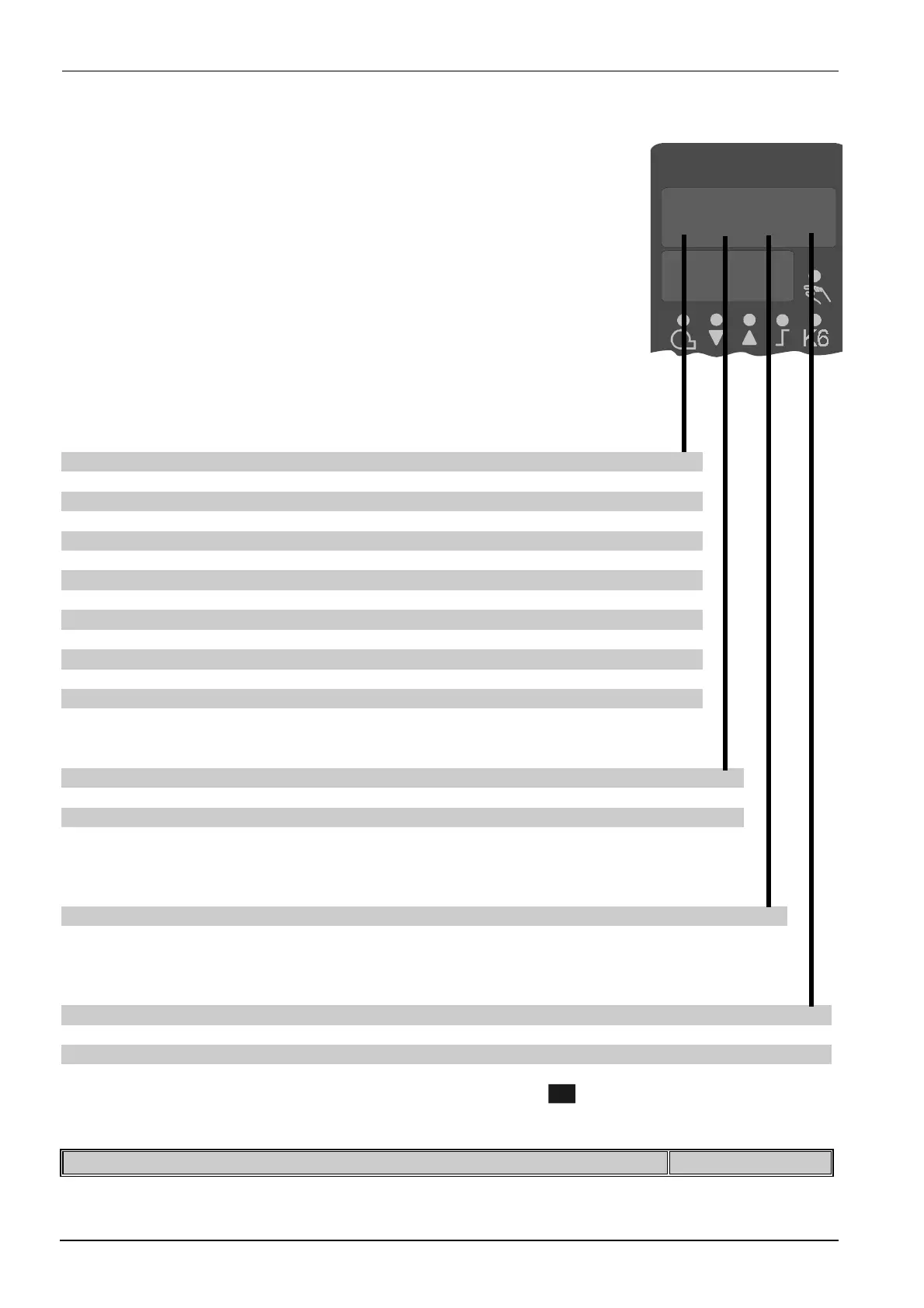

8.2 C112 limit comparator, controller type, setpoint «SP1», locking
