Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
138 Configuration Manual, 08/2018, C79000-G8976-C267-13
6.4.8.3

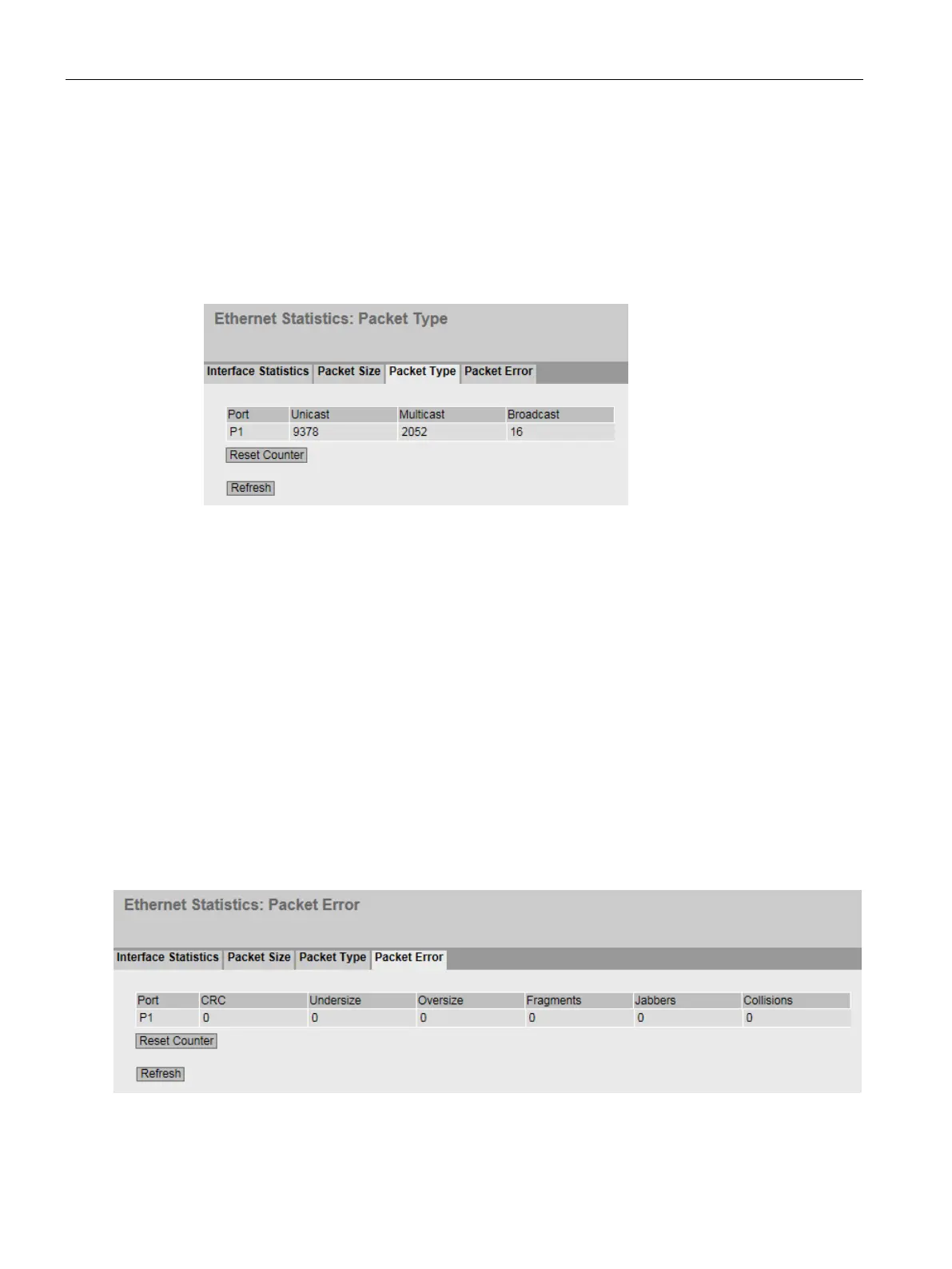

Frame Type
Received frames sorted by type
This page displays how many frames of the type "UnicastUnicast", "MulticastMulticast", and
"BroadcastBroadcast" were received at each port. You cannot configure anything on this
page.
Description
The table has the following columns:
●
Port
Shows the available ports.
●
Unicast/Multicast /Broadcast
The other columns after the port number contain the absolute numbers of the incoming
frames according to their frame type "Unicast", "Multicast" and "Broadcast"
6.4.8.4
Packet Error
Bad received frames
This page shows how many bad frames were received per port. You cannot configure
anything on this page.
