Configuring with Web Based Management
6.5 "System" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
186 Configuration Manual, 08/2018, C79000-G8976-C267-13
6.5.3
Agent IPv4
Configuration of the IP addresses

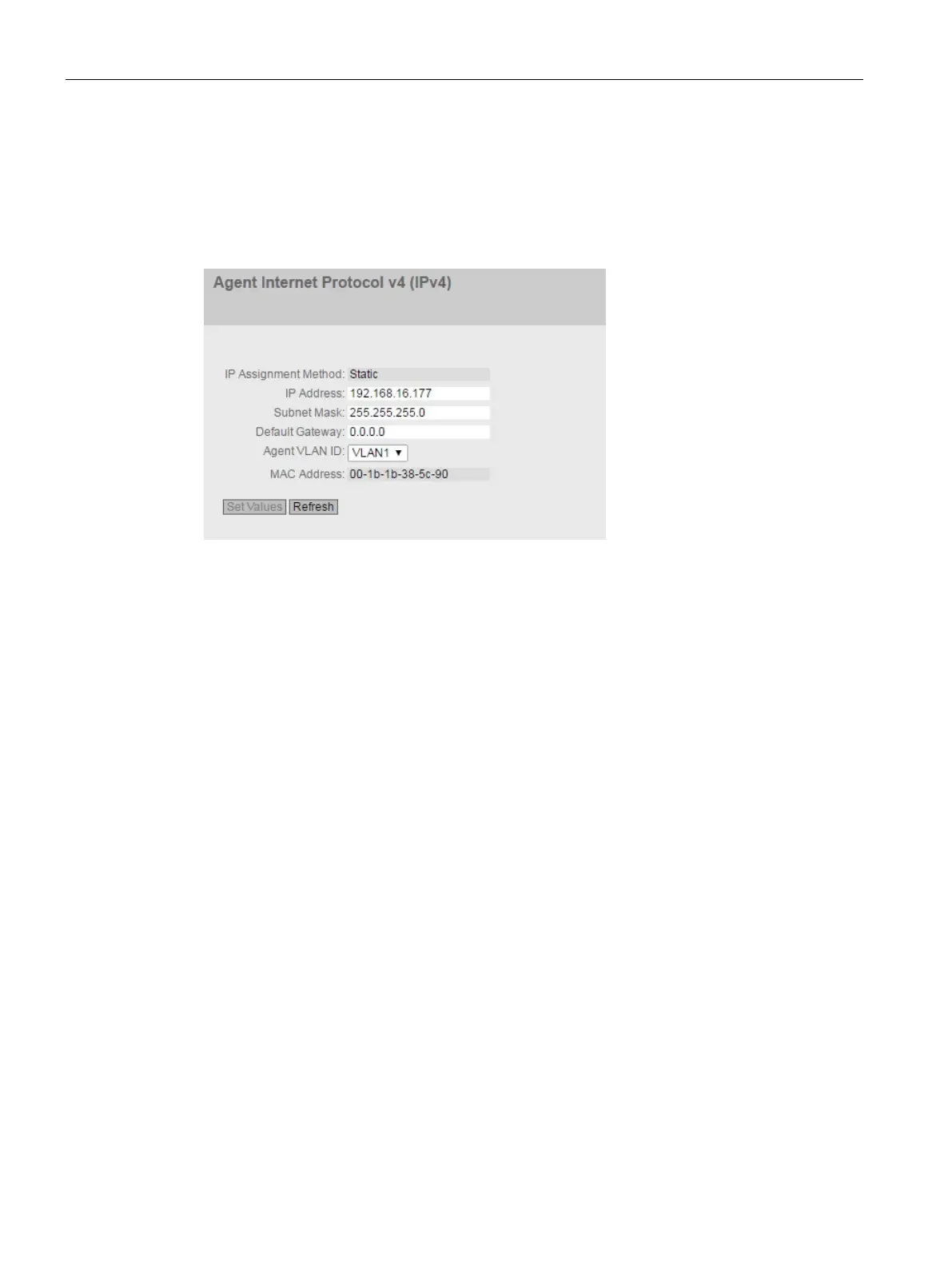

On this WBM page, you configure the IPv4 address for the device.
Description
The page contains the following boxes:
●
IP Assgn. Method
● Shows how the IPv4 address is assigned.
– Static
The IPv4 address is static. You enter the IP settings in the input boxes "IP Address"
and "Subnet Mask".
– Dynamic (DHCP)
The device obtains a dynamic IPv4 address from a DHCP server.
●
IP Address
Enter the IPv4 address of the device.
After clicking the "Set Values" button, this IPv4 address is also displayed in the address
bar of the Web browser. If this does not take place automatically, you will need to enter
the IPv4 address in the address bar of the Web browser manually.
●
Subnet Mask
Enter the subnet mask of the device.
●
Default Gateway
Enter the IPv4 address of the default gateway to be able to communicate with devices in
another subnet, for example diagnostics stations, e-mail server.
●
Agent VLAN ID
Select the VLAN ID from the drop-down list. The drop-down list is available only if the
"Base Bridge Mode" parameter is set to "802.1 Q VLAN Bridge". You configure the
