6.9 "Security" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
Configuration Manual, 08/2018, C79000-G8976-C267-13
389
6.9.6
IP ACL
6.9.6.1
Rules Configuration
Introduction

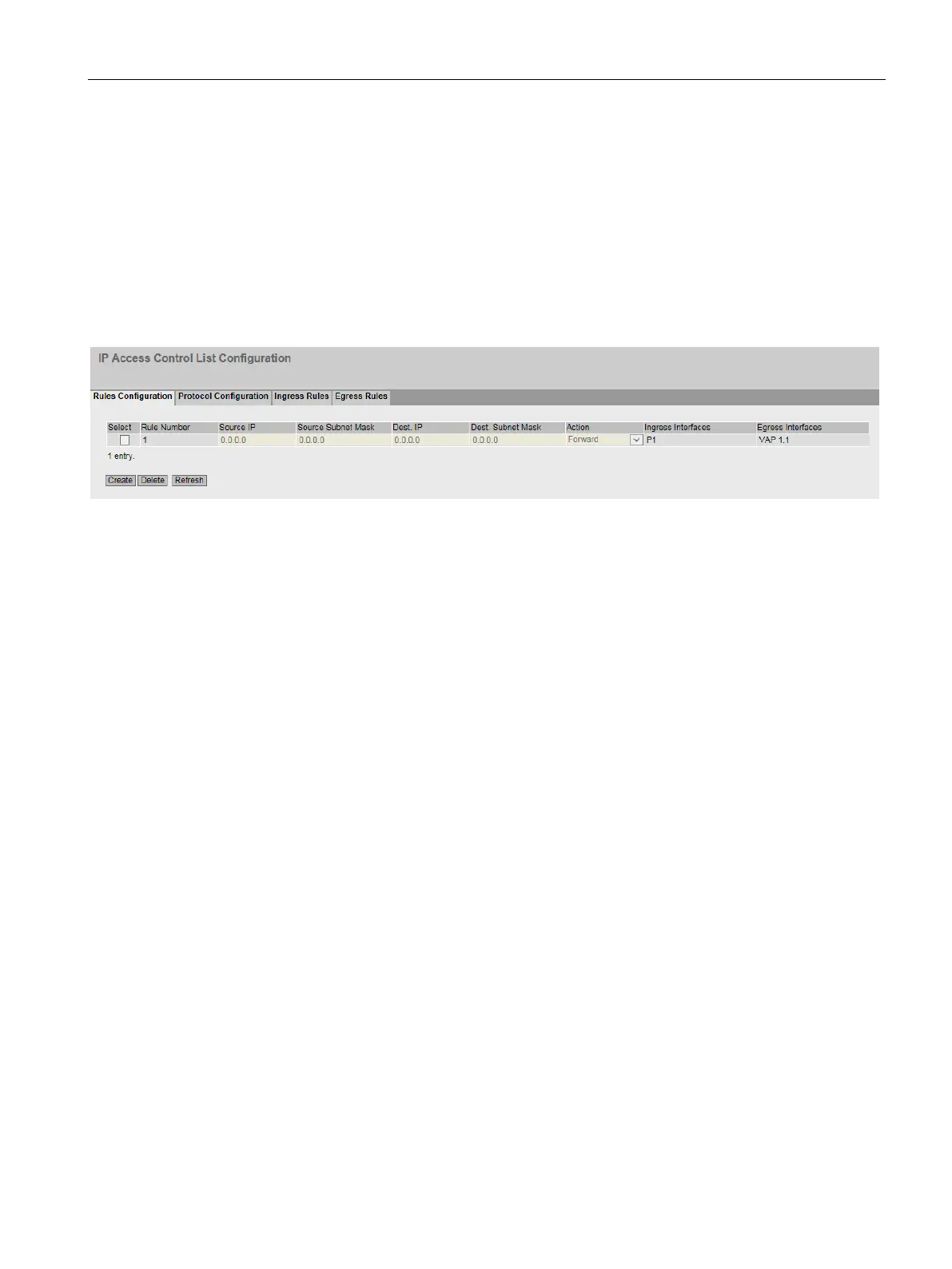

On this page, you specify the rules for the IP-based Access Control List. Using the IP-based
ACL, you can specify whether frames of certain IPv4 addresses are forwarded or discarded.
Description of the displayed boxes
The table has the following columns:
●
Select
Select the row you want to delete. If this entry is used, this is grayed out and you cannot
delete it.
●
Rule Number
Shows the number of the ACL rule. If you create a new entry, a new line with a unique
number is created.
●
Source IP
Enter the IPv4 address of the source.
●
Source Subnet Mask
Enter the subnet mask of the source.
●
Dest. IP
Enter the IPv4 address of the destination.
●
Dest. Subnet Mask
Enter the subnet mask of the destination.
●
Action
Select whether the frame is forwarded or rejected when it corresponds to the ACL rule.
– Forward
If the frame complies with the ACL rule, the frame is forwarded.
– Discard
If the frame complies with the ACL rule, the frame is not forwarded.
