6.7 "Layer 2" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
338 Configuration Manual, 08/2018, C79000-G8976-C267-13
●
Click this button to reset the counters on this page.
●
Layer-2 Tunnel Admin Edge Port (Only available in access point mode)
Select this check box if there can be an end device on a layer 2 tunnel port. Otherwise a
reconfiguration of the network will be triggered whenever a link to this port is modified.
The L2T clients should be interconnected.
●
Layer-2 Tunnel Auto Edge Port (Only available in access point mode)
Select this check box if you want to detect automatically whether or not an end device is
connected at all layer 2 tunnel ports.
1. Enter the data required for the configuration in the input boxes.
2. Click the "Set Values" button.

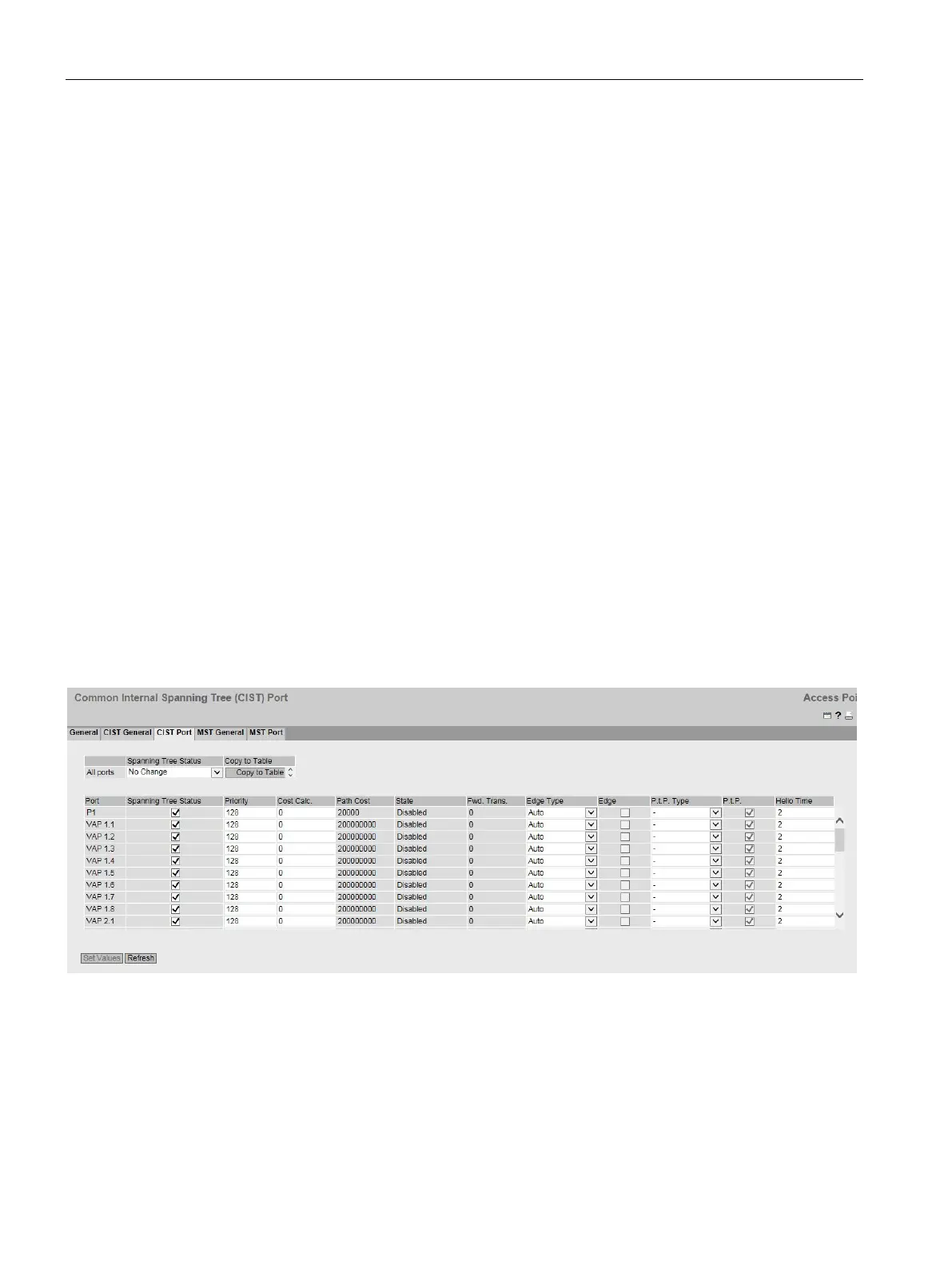

CIST Port
MSTP-CIST port configuration
When the page is called, the table displays the current status of the configuration of the port
parameters.
To configure them, click the relevant cells in the port table.
To Next Page
