Configuring with Web Based Management
6.6 "Interfaces" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
324 Configuration Manual, 08/2018, C79000-G8976-C267-13

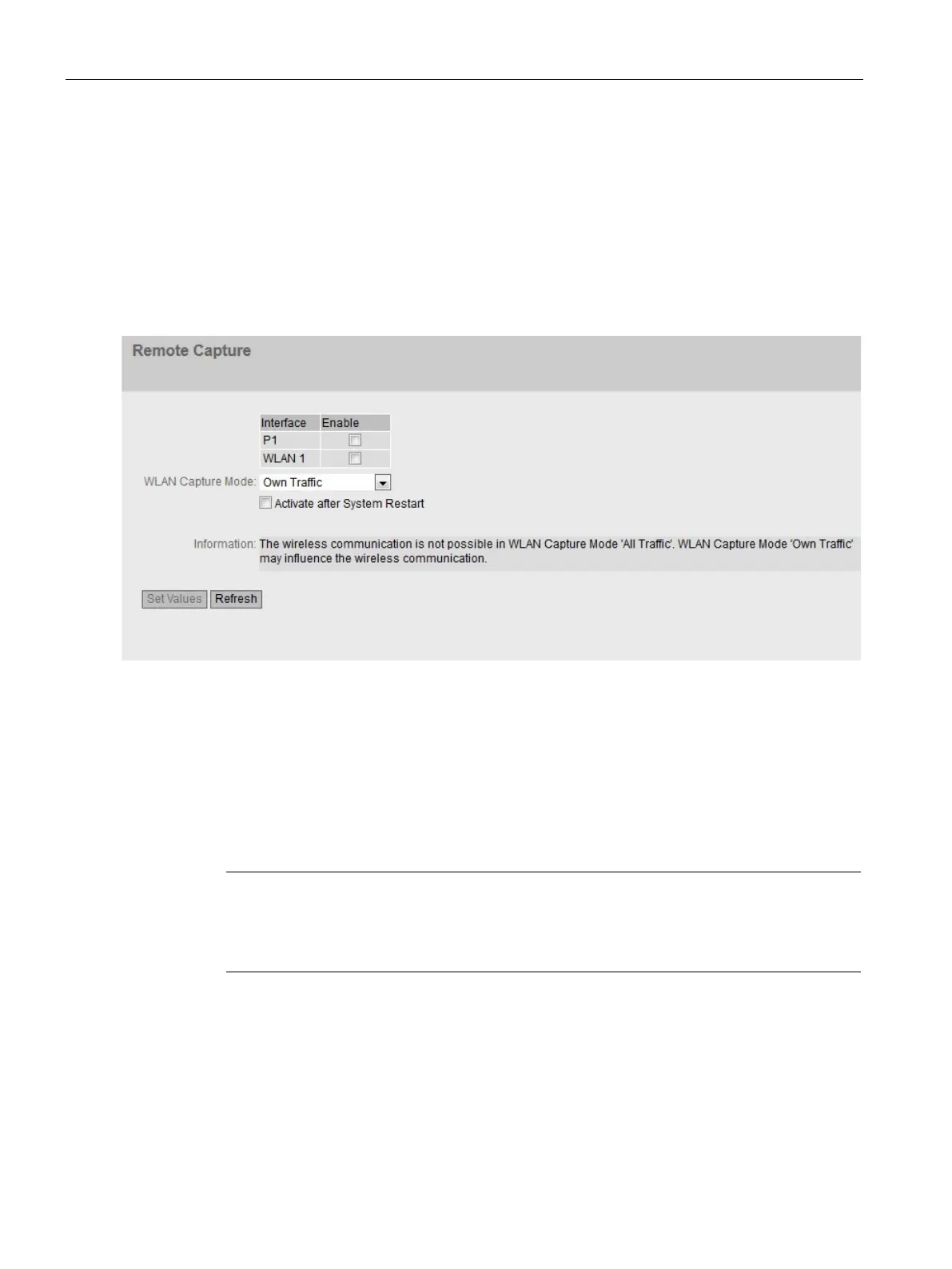

On this WBM page activate the function "Remote Capture" on the interface (Ethernet,
WLAN). The function is for network diagnostics via a connected PC, e.g. to detect transfer
errors.
You can also enable the function on several interfaces at the same time. When the function
is enabled the interface can be linked in Wireshark. For a period Wireshark record the data
traffic over the interface. Afterwards from the recording you can see the content of the
frames or filter according to certain contents.
This table contains the following columns:
●
The interface to which the entry relates.
●
Enable or disable the "Remote Capture" function. As default, the function is disabled.
Note
Performance
Enable the fun
ction only for diagnostics purposes. The increased data traffic could
influence the performance of the device.
