Configuring with Web Based Management
6.7 "Layer 2" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
344 Configuration Manual, 08/2018, C79000-G8976-C267-13

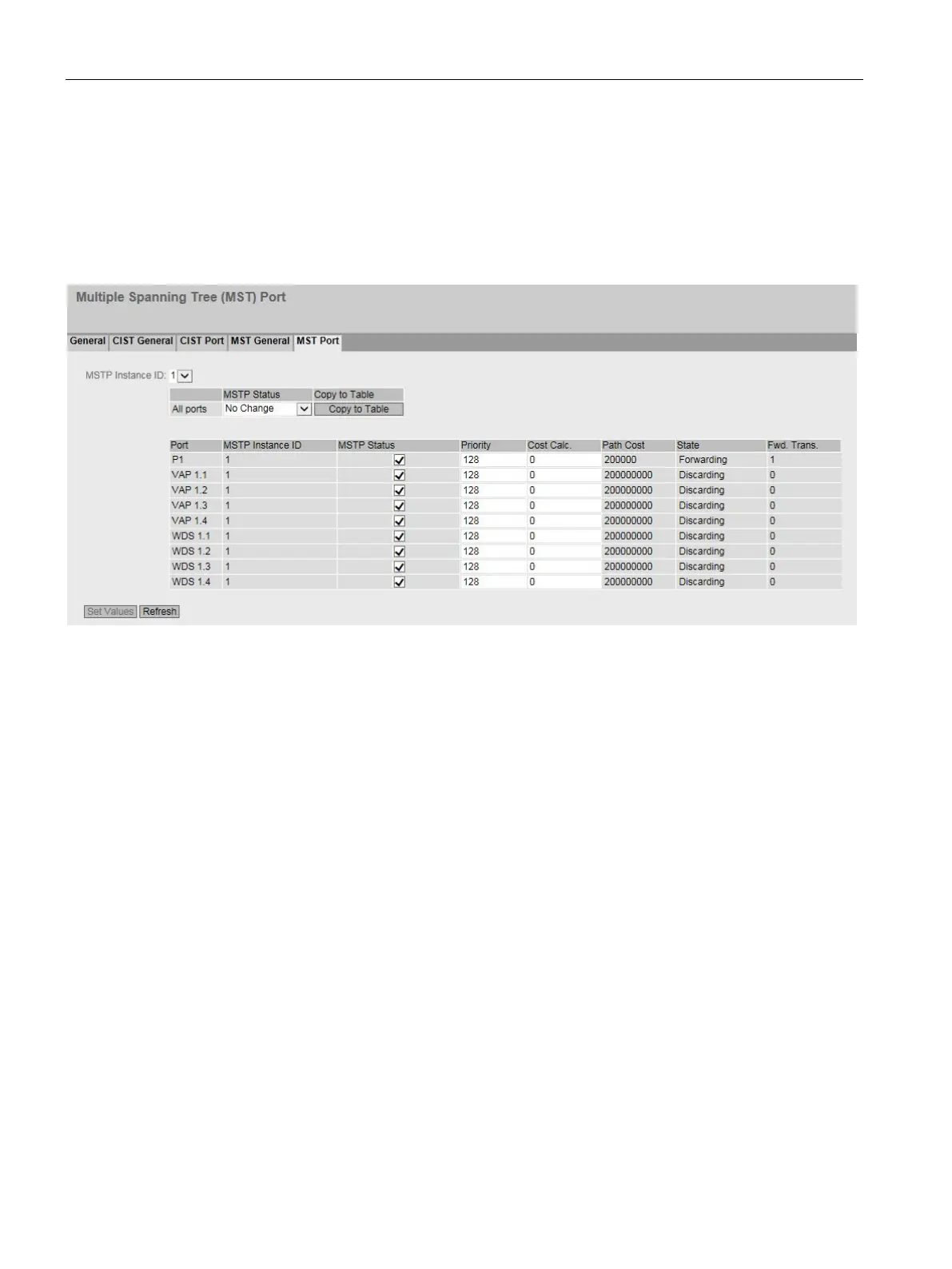

MST Port
Configuration of the Multiple Spanning Tree port parameters
On this page, you set the parameters for the ports of the configured multiple spanning tree
instances.
The page contains the following box:
●
In the drop-down list, select the ID of the MSTP instance.
Table 1 has the following columns:
●
Shows that the settings are valid for all ports of table 2.
●
In the drop-down list, select the setting for all ports. If "No Change" is selected, the entries
of the corresponding column in table 2 remain unchanged.
●
● If you click the button, the setting is adopted for all ports of table 2.
Table 2 has the following columns:
●
Shows all available ports and interfaces.
●
Shows the ID of the MSTP instance.
