Configuring with Web Based Management
6.9 "Security" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
Configuration Manual, 08/2018, C79000-G8976-C267-13
385
You cannot delete active entries.
1. Enable "Select" in the row to be deleted.
2. Click the "Delete" button. The entry is deleted.

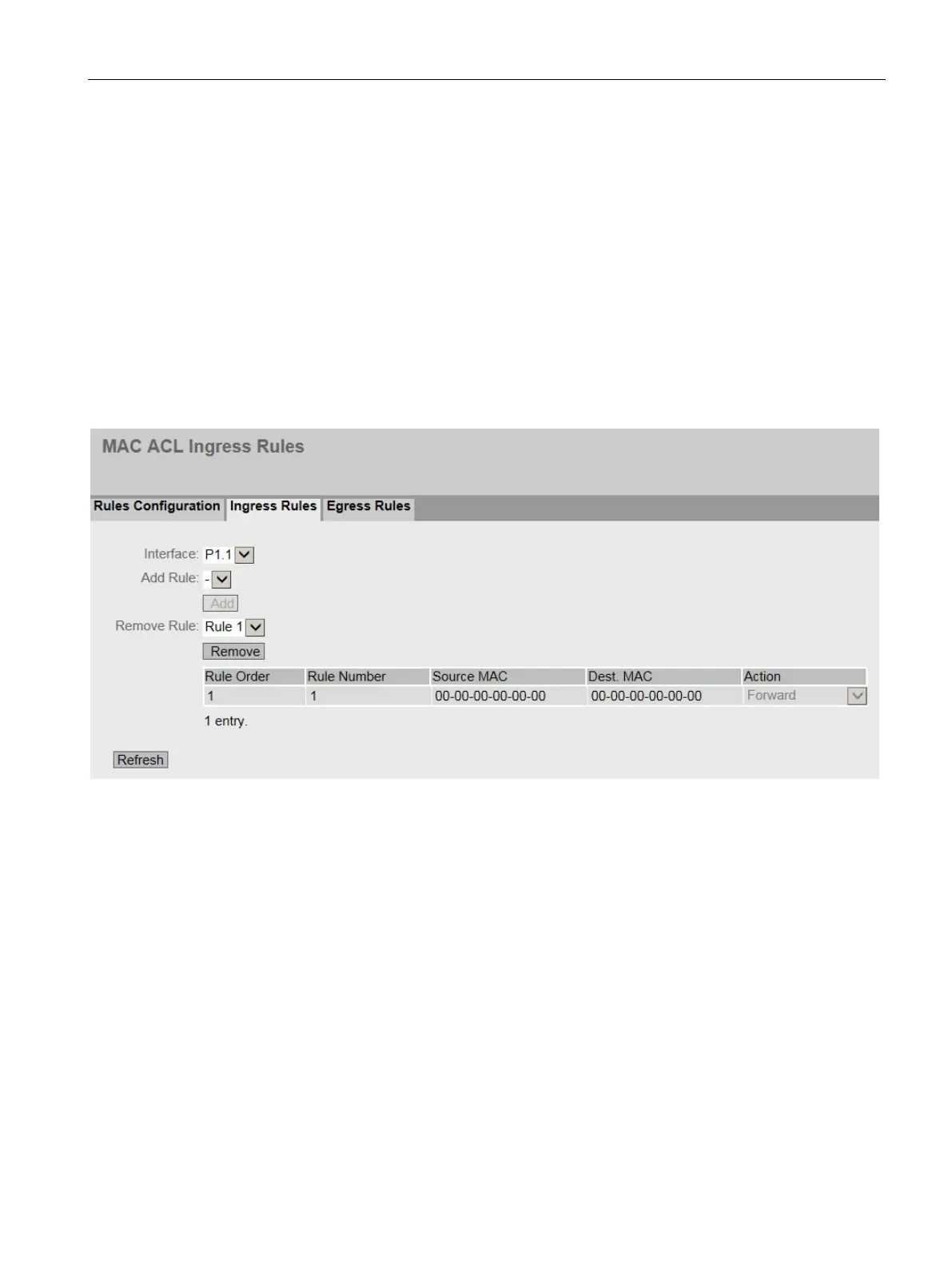

Ingress Rules
Introduction
On this page, you specify the ACL rule according to which incoming frames are filtered at
interfaces. You specify the ACL rules in the "Rules Configuration" tab.
Description of the displayed boxes
The page contains the following boxes:
●
Select the required interface from the drop-down list. The available interfaces (Page 49)
depend on your device.
●
In the drop-down list select the ACL rule to be assigned to the interface.
●
To assign the ACL rule to the interface, click the "Add" button. The configuration is shown
in the table.
●
From the "Remove rule" drop-down list, select the ACL rule to be deleted.
●
To remove the ACL rule from the interface, click the "Remove" button.
