Configuring with Web Based Management
6.4 "Information" menu
SCALANCE W780/W740 to IEEE 802.11n Web Based Management
174 Configuration Manual, 08/2018, C79000-G8976-C267-13

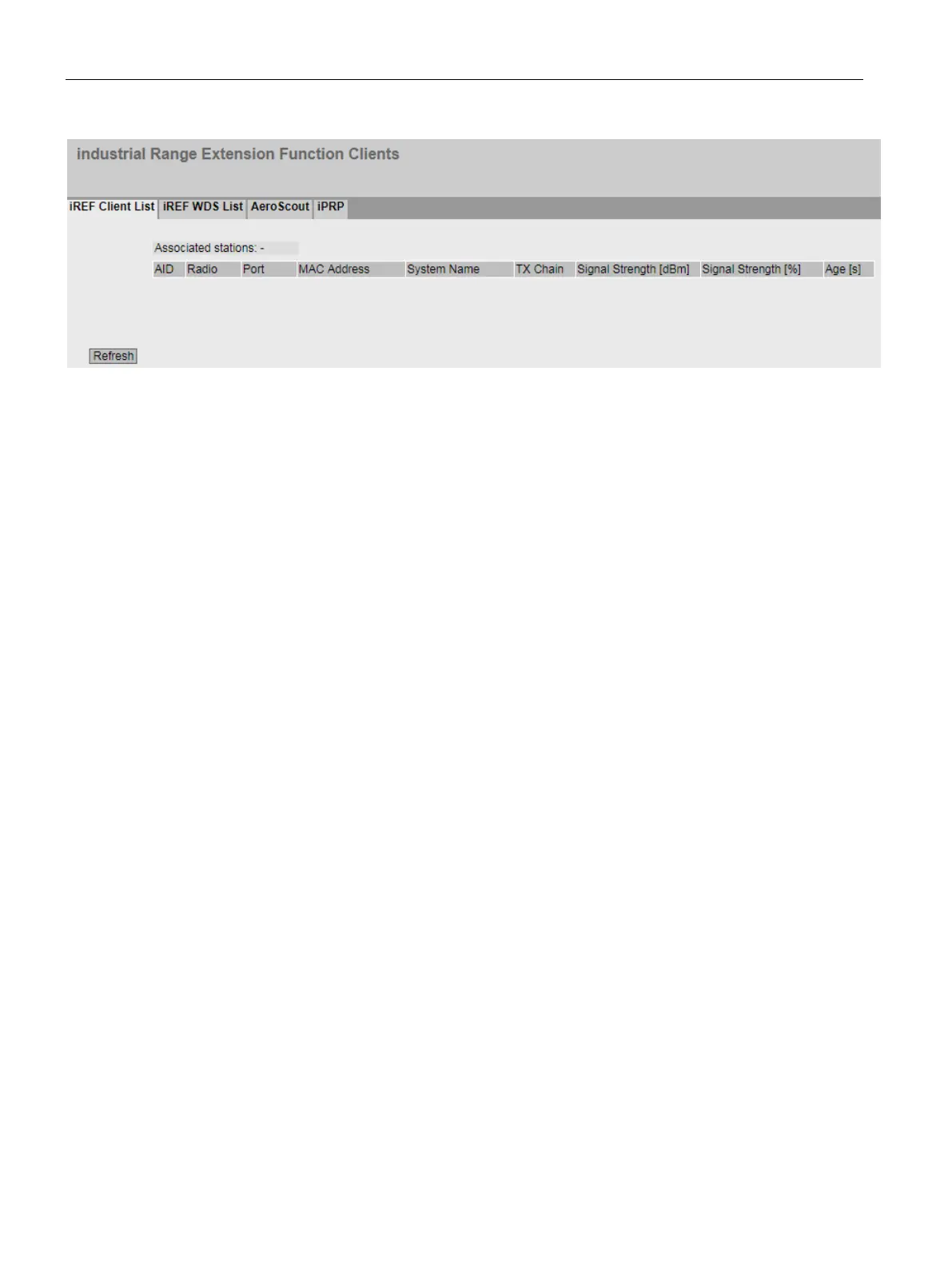

Description
The page contains the following box:
Logged-on Clients
Shows the number of clients logged on to the access point
The table has the following columns:
AID
(Associated ID)
Shows the connection ID of the client. If the client connects to the access point via the
VAP interface, the client is assigned a connection ID. The connection ID is unique within
a VAP interface. If two clients log on at different VAP interfaces, both clients can receive
the same ID.
Radio
Shows the available WLAN interfaces.
Port
Shows the VAP interface.
MAC Address
Shows the MAC address of the client.
System Name
Shows the system name of the client if the client communicates this to the access point.
Not all clients support this parameter.
Tx Chain
Shows the antenna connector over which the client communicates with the access point.
Signal Strength [dBm]
Shows the signal strength of the connected client in decibel milliwatts.
Signal strength [%]
Shows the signal strength of the connected client as a percentage.
Age [s]
Shows the age of the listed client.
