Dimension drawings
SCALANCE X-100
70 Operating Instructions, 12/2016, A2B00060666-08

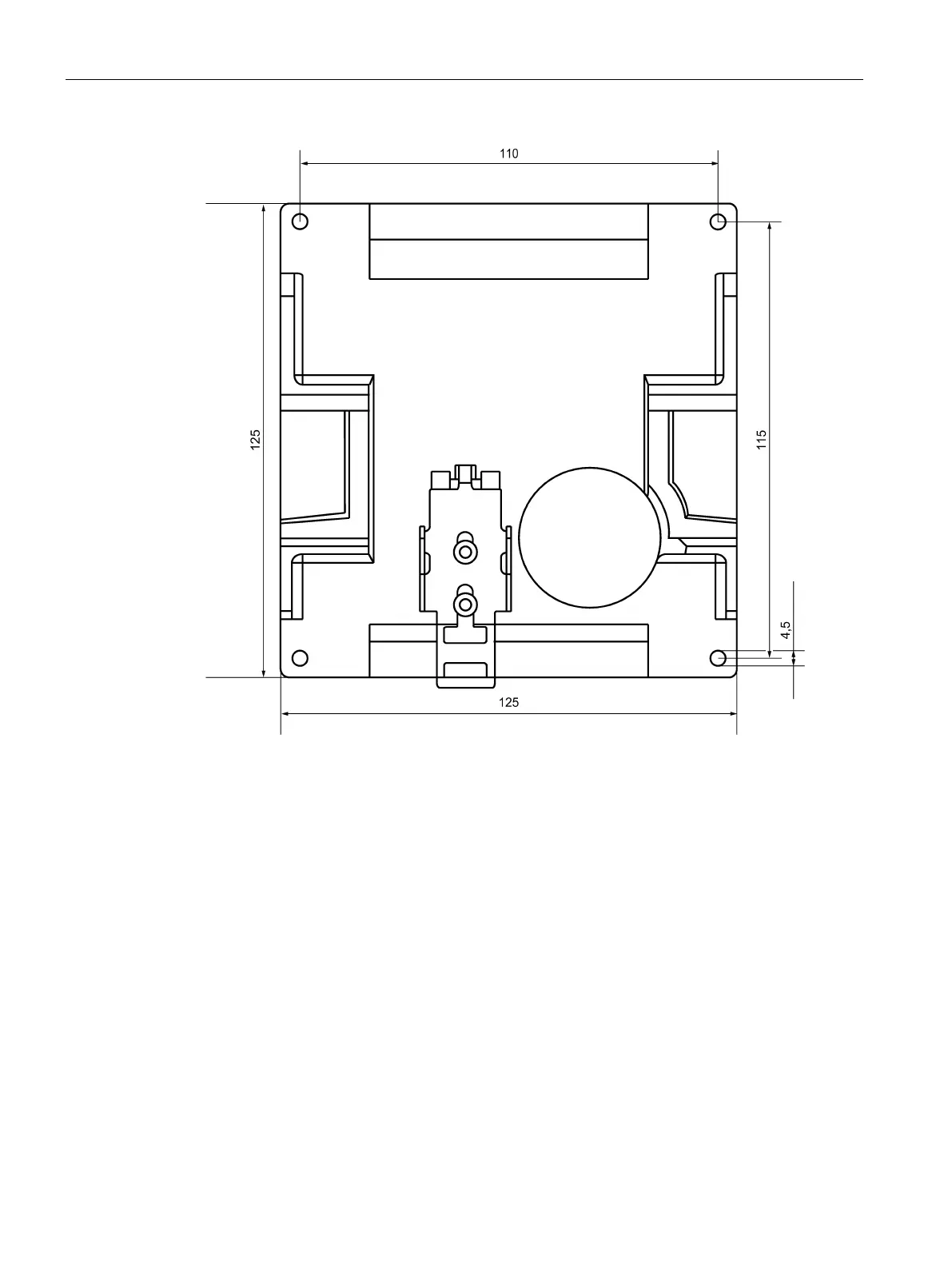

Figure 9-2 Dimension drawing, rear of the SCALANCE X116, X112-2
