Dimension drawings
SCALANCE X-100
Operating Instructions, 12/2016, A2B00060666-08
71

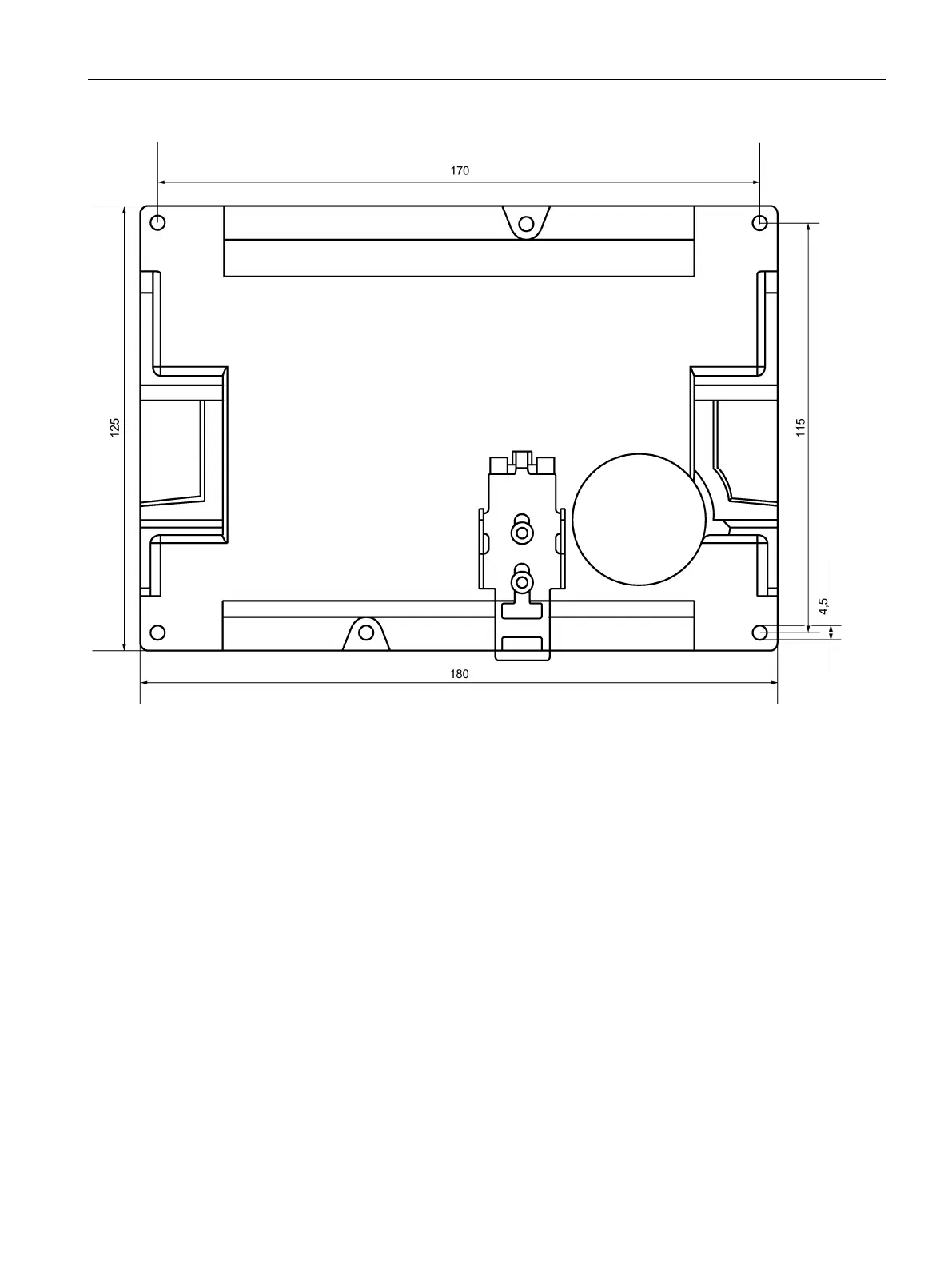

Figure 9-3 Dimension drawing, rear of the SCALANCE X124
