Description
2.3 Average values and counters
PAC3120 and PAC3220
Equipment Manual, 10/2019, L1V30425208F-01
25
Output of limit violations
● Indication of limit violation on the display:
"MAIN MENU > SETTINGS > ADVANCED > LIMITS > LIMIT LOGIC"
Limit value currently violated ( = yes, = no)

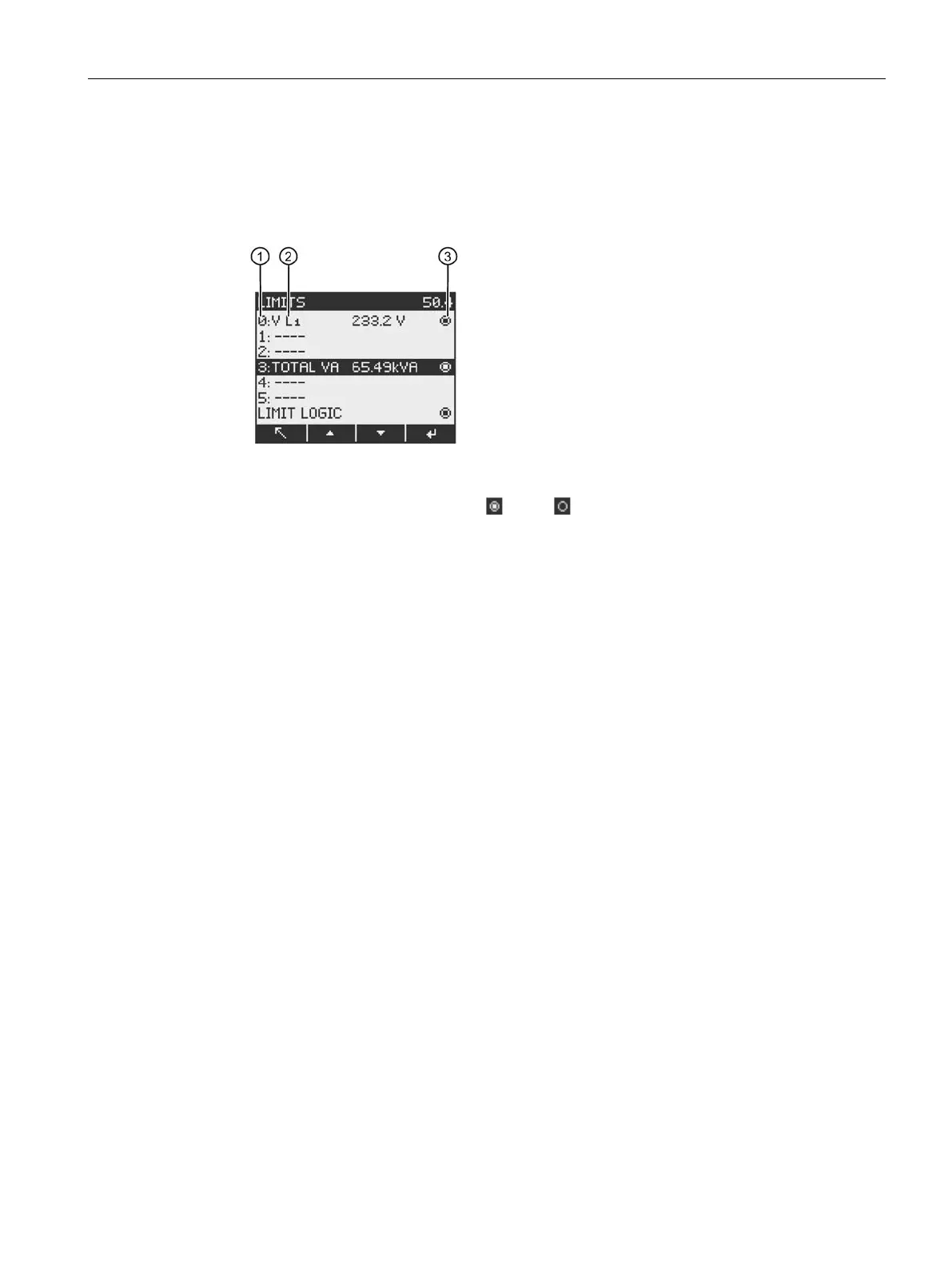

Figure 2-2 Display of limit violation
● Output of the limit violation at the digital output
● Output of limit violations via the interface
● Counting limit violations with the universal counter
