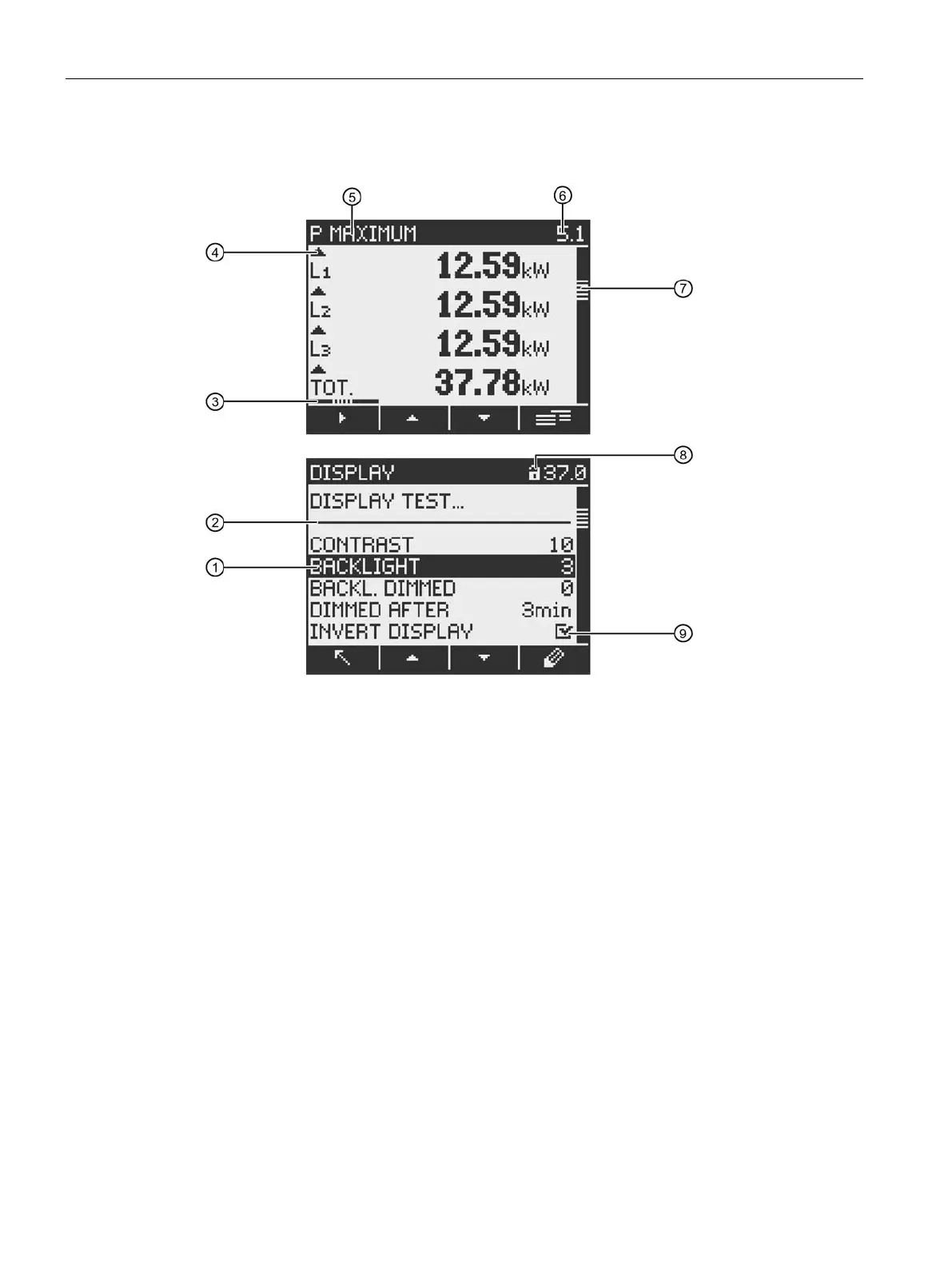

6.1.2 Special display elements
Line separating the start and end of the list
Scroll bar of function key F1 (multiple assignments of key F1)
Arrow up: Maximum value
Arrow down: Minimum value
Scroll bar (display can be scrolled upwards/downwards)
Device protection symbol
• Open padlock: Protection deactivated
• Closed padlock: Protection activated
Activation/deactivation symbol
• Symbol with check mark: function activated
• Symbol without check mark: function deactivated
Figure 6-2 Special display elements
