SICAM FCM with Connecting Cable (only for 6MD2322-1AA00-1AA0)
[le_sfcm-capconncbl, 2, --_--]

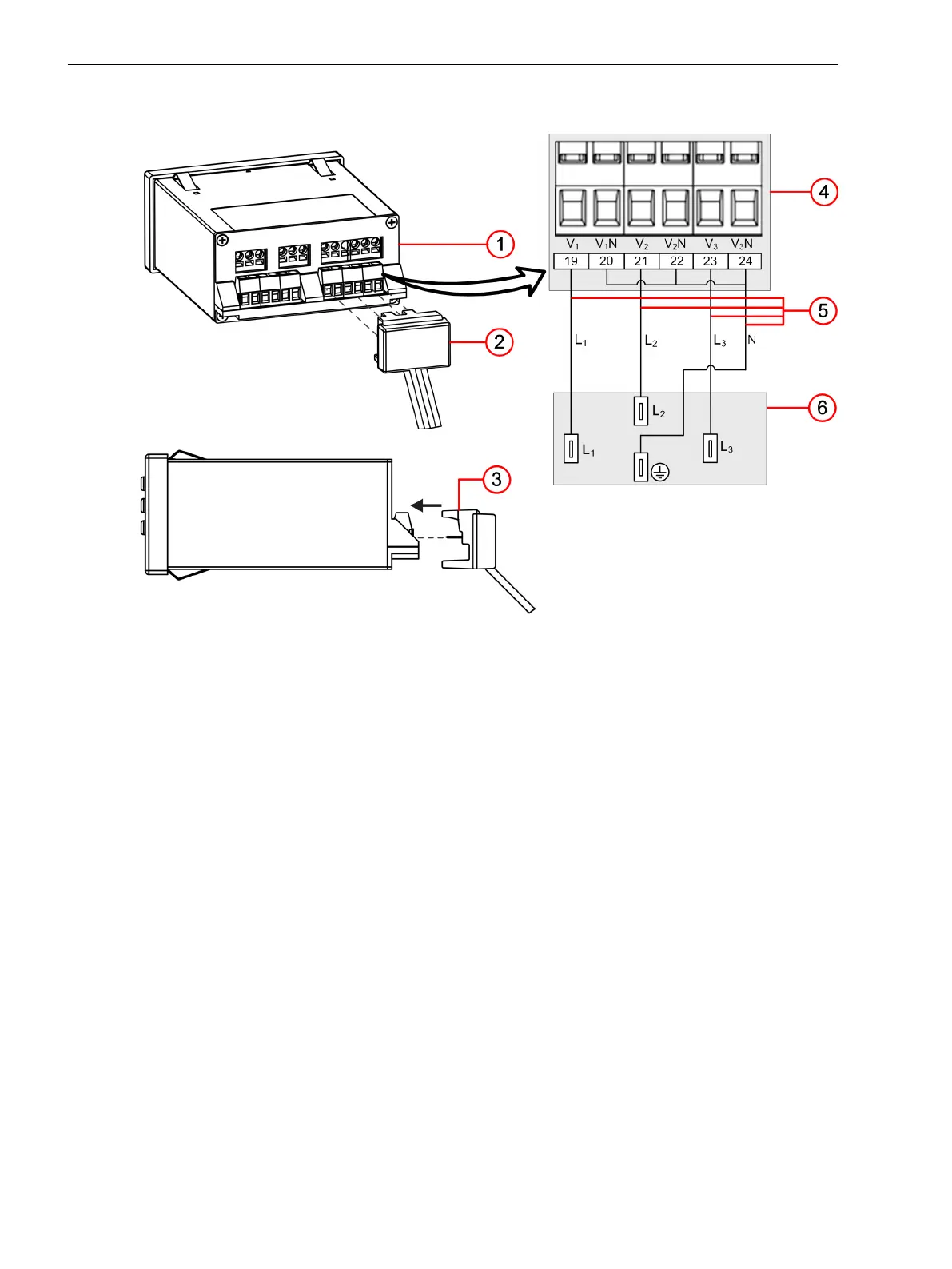

Figure 3-7
Connecting Cable of SICAM FCM
(1) SICAM FCM
(2) Connecting cable (6MD2322-0AA80-0AB3); necessary for 6MD2322-1AA00-1AA0
(3) Orientation of connecting cable to SICAM FCM voltage-input terminals
(4) SICAM FCM voltage-input terminals
(5) Connecting cable (L
1
, L
2
, L
3
, ground)
(6) Voltage-detection system
Hardware Components and Drawings
3.3 Dimensional Drawings
28 SICAM, Feeder Condition Monitor, Manual
E50417-H8940-C580-A4, Edition 03.2019
