Dimensional Drawings
This chapter shows the dimensional drawings and different views of the device.

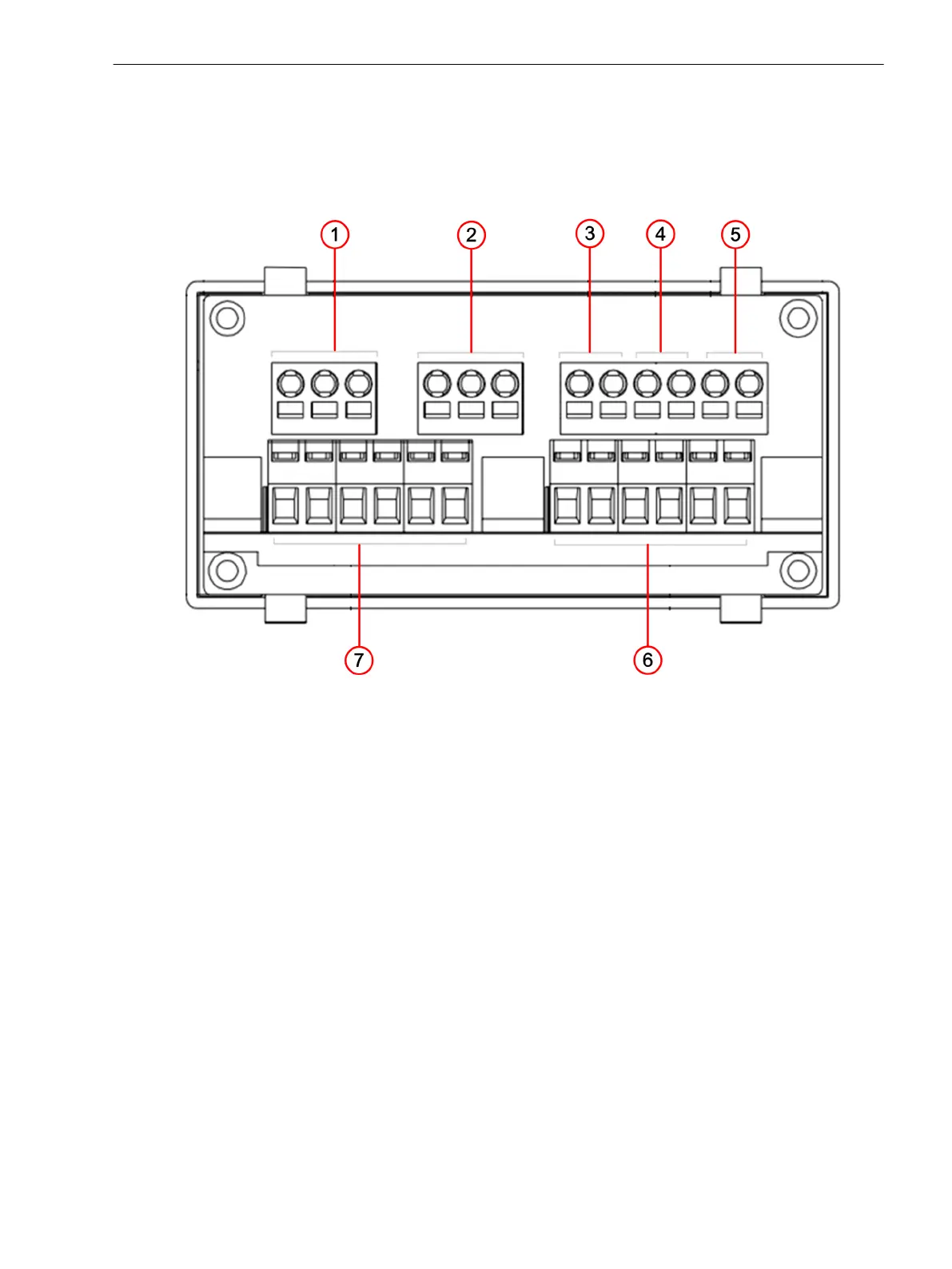

Rear View
[le_sfcmrearview, 1, --_--]
Figure 3-3
Rear View with Terminals
(1) Power supply
(2) Modbus
(3) Digital input
(4) Digital output 2
(5) Digital output 1
(6) Voltage input
(7) Current input
3.3
Hardware Components and Drawings
3.3 Dimensional Drawings
SICAM, Feeder Condition Monitor, Manual 25
E50417-H8940-C580-A4, Edition 03.2019

Siemens SICAM Specifications

General

Measurement Accuracy	±0.1%
Input Current Range	0-5A AC/DC
Frequency Range	45-65Hz
Communication Interfaces	Ethernet, RS485
Power Supply	24 V DC
Protection Class	IP20
