Modbus Connection of SICAM FCM with RTU

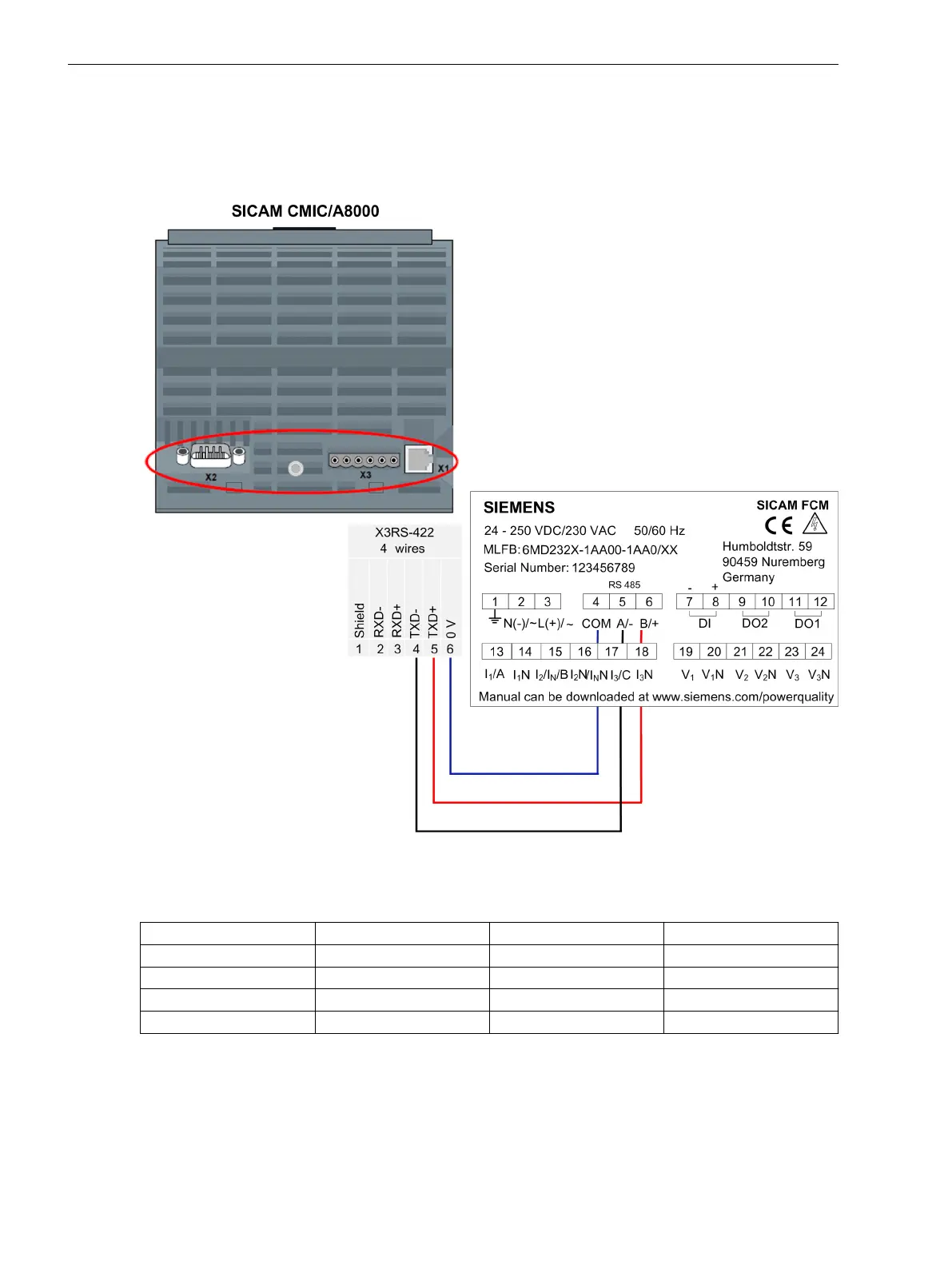

The following figure shows how the RS485 port of SICAM FCM is connected with the Remote Terminal Unit
(RTU).
[dw_connection_fcm-rtu, 1, en_US]
Figure 7-13
SICAM FCM Modbus Connection with RTU
Table 7-4 Modbus Connection with RTU
SICAM CMIC/A8000 SICAM FCM Pin Assignment
Interface X3 – –
Terminal 4 5 A/-
Terminal 5 6 B/+
Terminal 6 4 COM/0 V
7.4
Connection Diagrams
7.4 Modbus Connection of SICAM FCM with RTU
78 SICAM, Feeder Condition Monitor, Manual
E50417-H8940-C580-A4, Edition 03.2019
