System Components
Sicore II Installation and Commissioning Guide
667/HB/52600/000 Issue 2 Unrestricted
5.6. Rear Panel
The rear panel carries the following items:
• Main Connector
• Aux 1 Connector
• Aux 2 Connector
• WiFi Antenna Connector (Where WiFi option is fitted)
• SIM Card Connector (Where 3G/4G modem option is fitted)
• Earth Stud
• Status LED

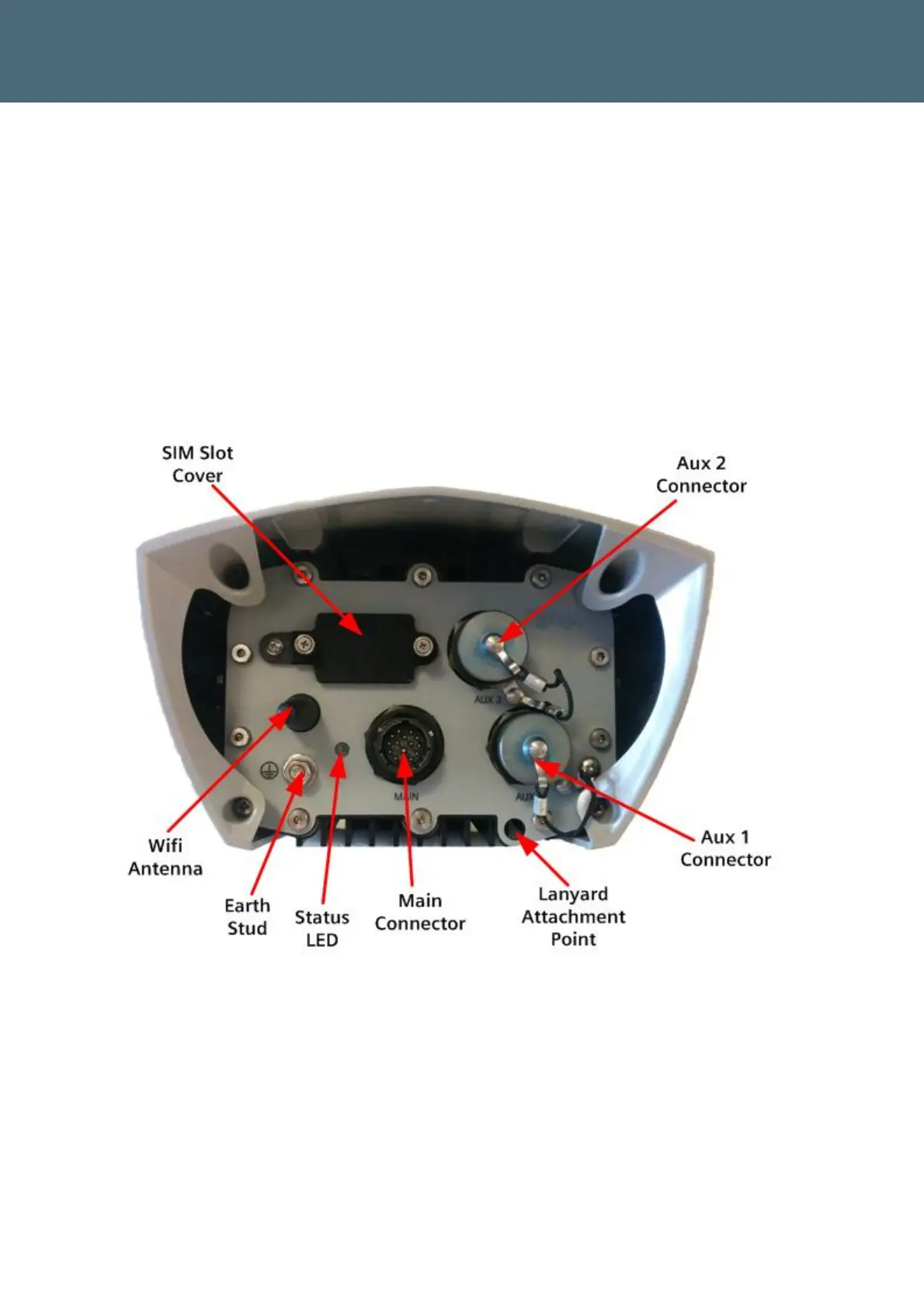

Figure 6 – Sicore II Rear Panel
The three main connectors use Canon KPTC series industrial round style connectors all with
differing pin counts to ensure that there is no possibility of swapping connectors. These
connectors are bayonet type and they MUST be fully locked during installation. It is
recommended that metal tools are NOT used to assist with connector locking as damage to
the connector plating will reduce the working life of the connector.
