Commissioning
Sicore II Installation and Commissioning Guide
667/HB/52600/000 Issue 2 Unrestricted
7.4. Monochrome Overview
This process offsets the monochrome overview camera such that it receives no illumination
from the ANPR flash, this is recommended to obtain plate readability in the overview image
but requires separate offset IR illumination. If it is intended to use the ANPR flash to
illuminate the monochrome overview then skip this section (note that the licence plate will
not be readable in the overview image in this case)
Select the Overview Camera settings menu by navigating to :
Status and Configuration / ANPR / Cameras / Overview
The following default menu will be displayed:

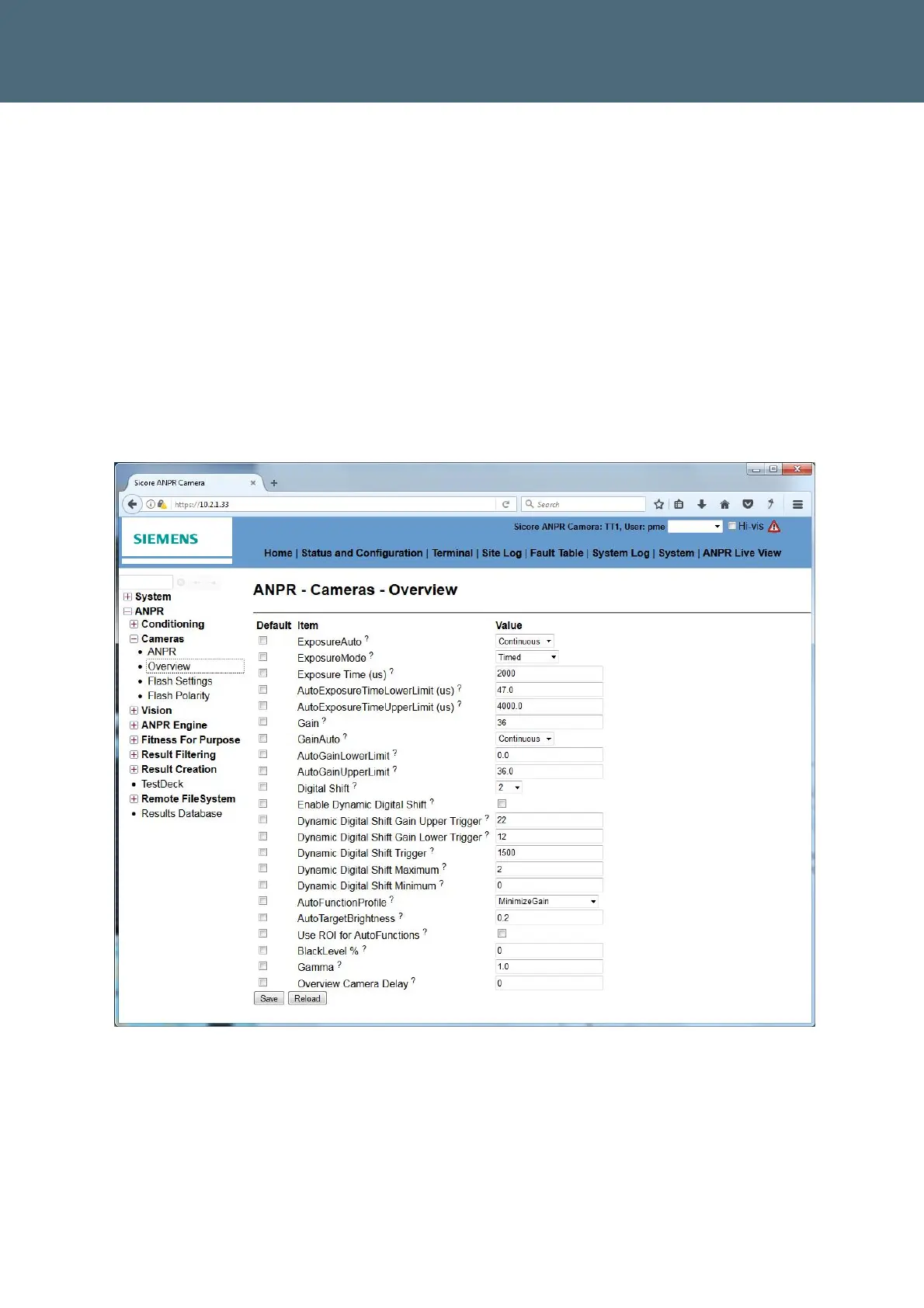

Figure 30 – Overview Menu
Set the Overview Camera Delay entry to 500
Click Save
