Commissioning
Sicore II Installation and Commissioning Guide
667/HB/52600/000 Issue 2 Unrestricted
7.5. Camera Calibration
The camera calibration page contains measurements that define the geometry between the
camera and the centre of the capture zone. This information is used by the camera plate
finder and ANPR algorithms to determine the expected plate size in the field of view. A set of
defaults are present here that will suffice for most installations however it is recommended
to configure these with values from the actual installation to optimise performance.
Select the Camera Calibration menu by navigating to :
Status and Configuration / ANPR / Vision / Camera Calibration
The following default menu will be displayed:

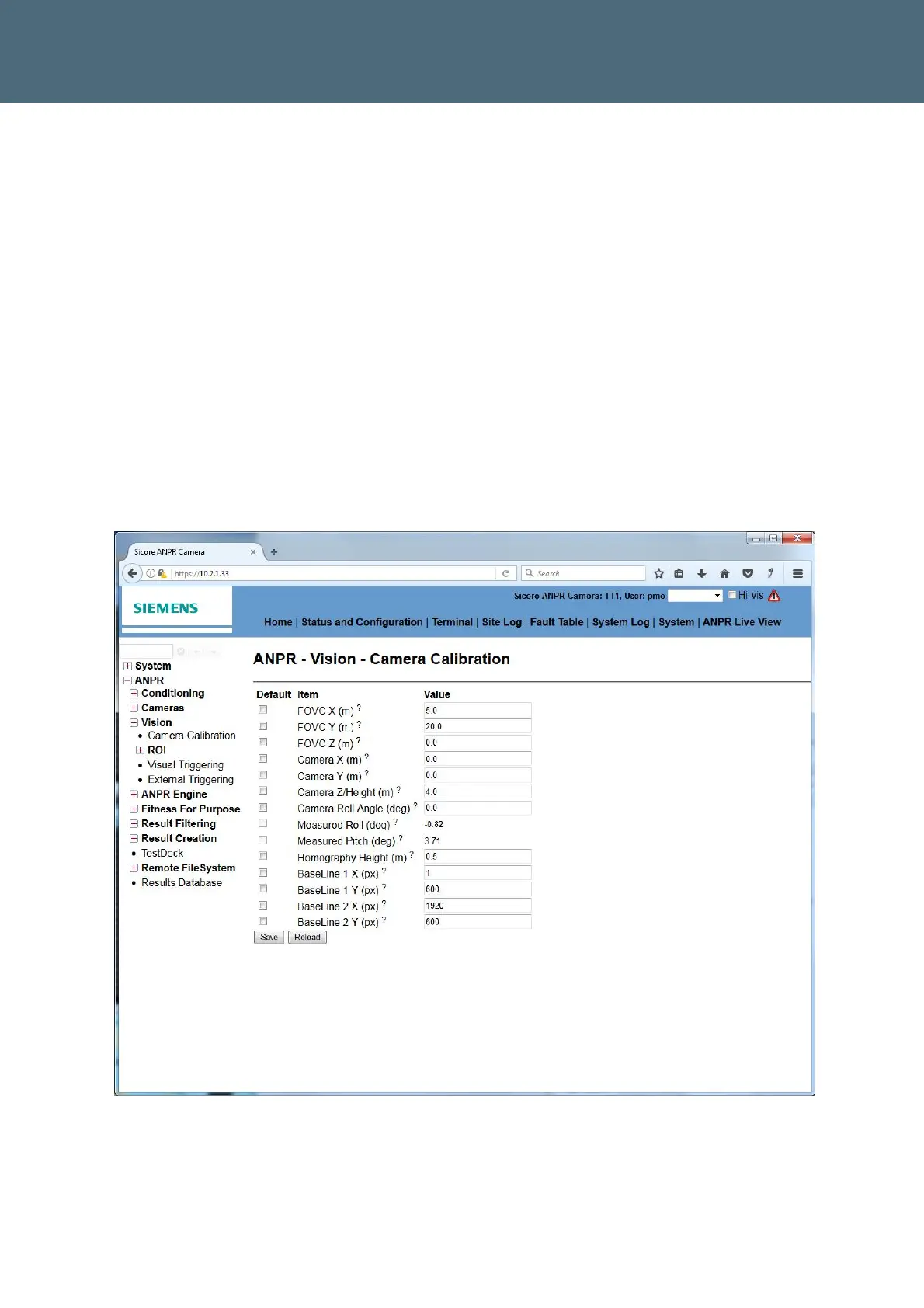

Figure 31 – Camera Calibration Menu
