Installation
Sicore II Installation and Commissioning Guide
667/HB/52600/000 Issue 2 Unrestricted
6.6. Torque Settings
Ensure that the following Torque settings are used for the camera bracket
assembly / installation
Camera mounting onto bracket
PUT 3 DROPS OF LOCTITE 270 ON EACH THREAD BEFORE ASSEMBLY. TIGHTEN TO 7.5 Nm
USING A TORQUE WRENCH.
Bracket U bolt onto pole
PUT 3 X DROPS OF LOCTITE 270 ONTO THREADS BEFORE ASSEMBLY. TIGHTEN WITH TORQUE
WRENCH TO 14 Nm.
Camera pan / tilt adjustment fixings
USE 3 DROPS OF LOCTITE 270 PER BOLT AND TIGHTEN M8 HARDWARE WHEN FINISHED TO 14
Nm.
6.7. Lens Protective Label
The camera is supplied with a protective label over the front lens, this must be removed prior
to use.

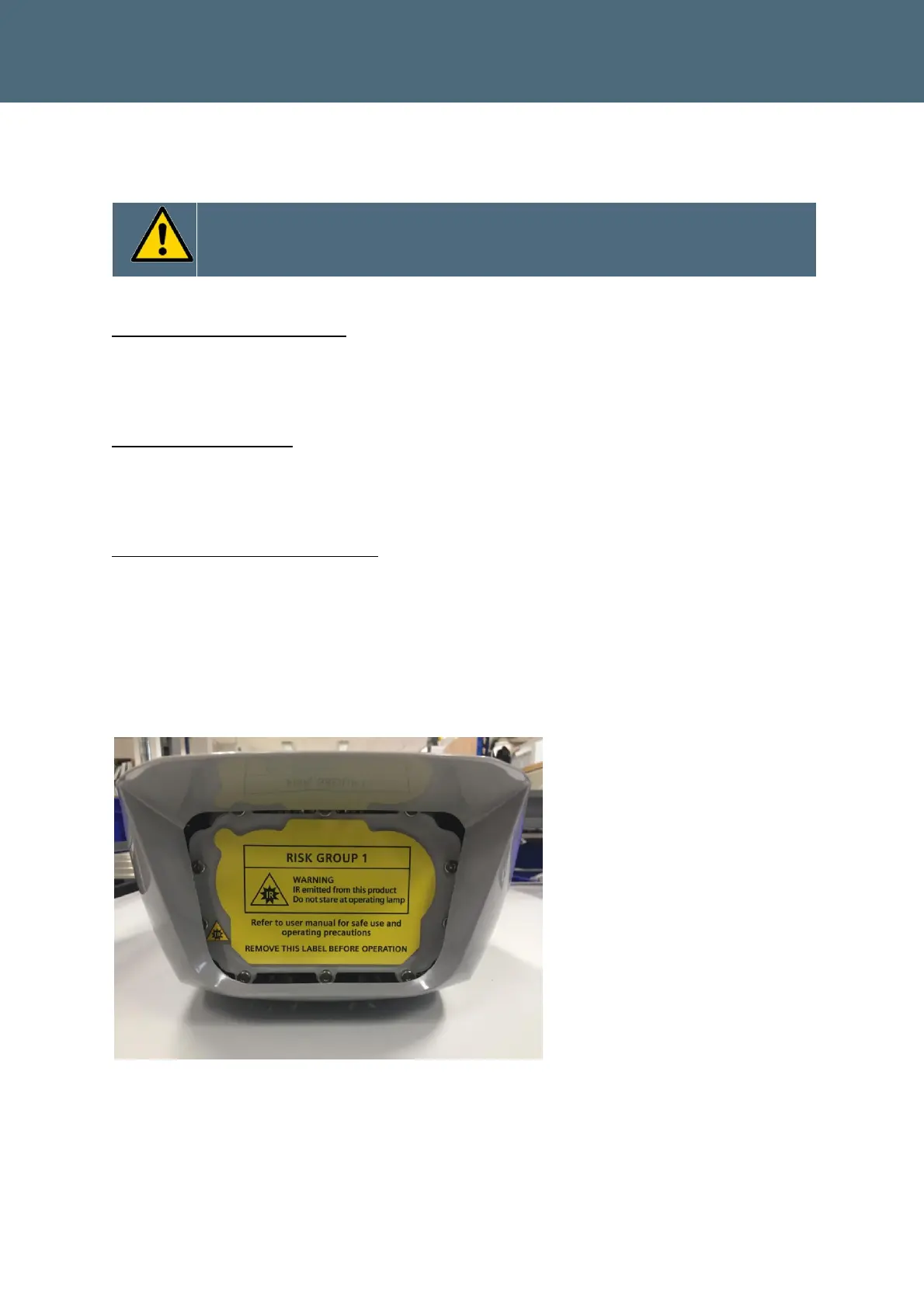

Figure 12 – Sicore II Protective Label
