Siemens SIMATIC ET 200SP Equipment Manual

Connecting
3.1 Wiring and block diagram
ET 200SP F-TM Count 1x1Vpp sin/cos HF (6ES7136-6CB00-0CA0)
Equipment Manual, V1.0, 01/2021, A5E47073911-AA
27

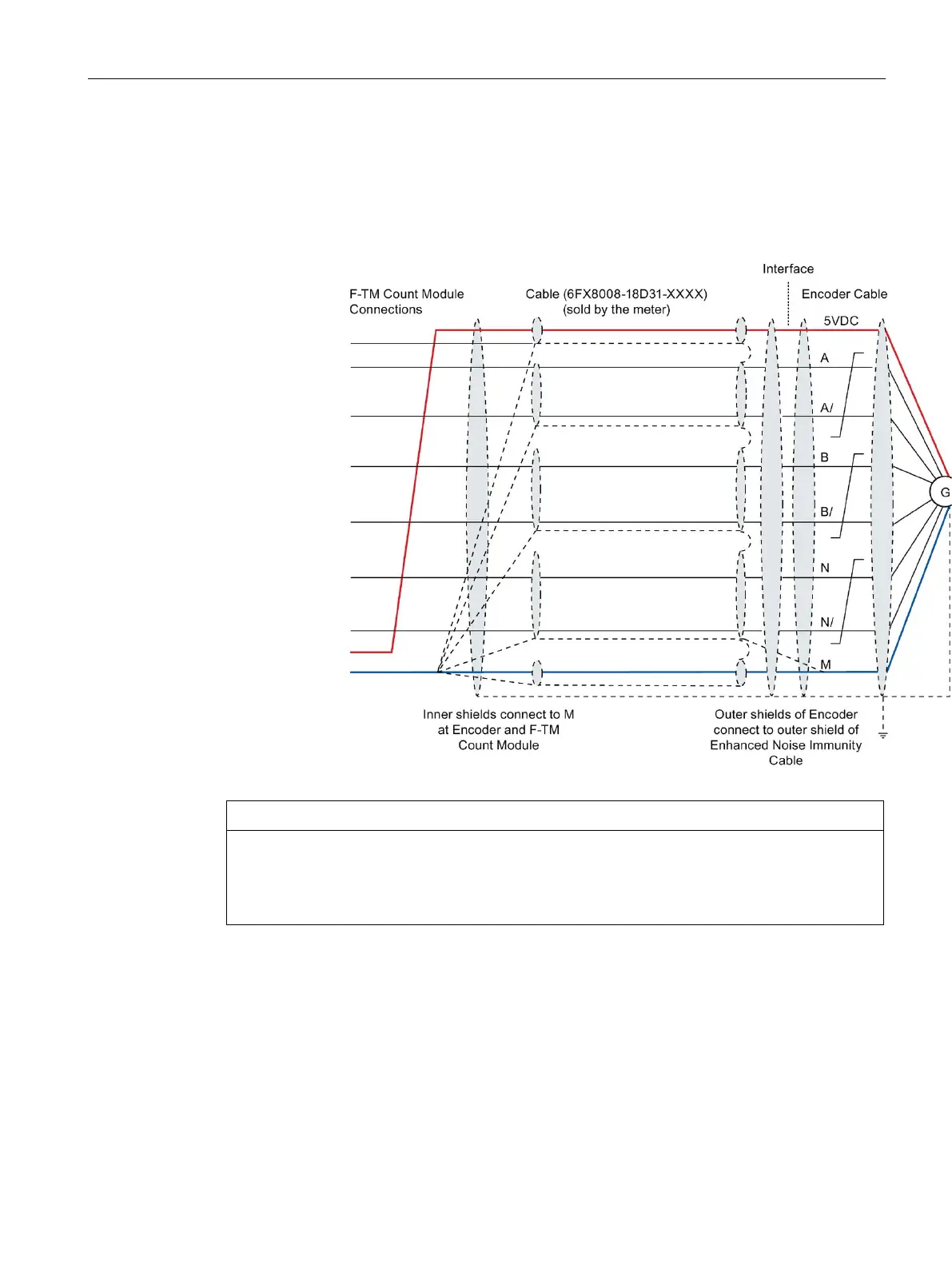

Wiring using the cable is shown in the following figure:
NOTICE
The right side of the F-TM Count module may exhibit some sensitivity to electrostatic
discharge (ESD).
Care should be taken to avoid exposure to ESD. If possible, it is recommended the F-TM
Count module is not the last module on the right of the mounted configuration.

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
