Parameters/address space
4.9 Safety functions
ET 200SP F-TM Count 1x1Vpp sin/cos HF (6ES7136-6CB00-0CA0)
52 Equipment Manual, V1.0, 01/2021, A5E47073911-AA
4.9.1.1 Function of SOS
The SOS function monitors the count value
and notifies the user if the encoder/count
deviates more than a defined amount from
the stopped position.

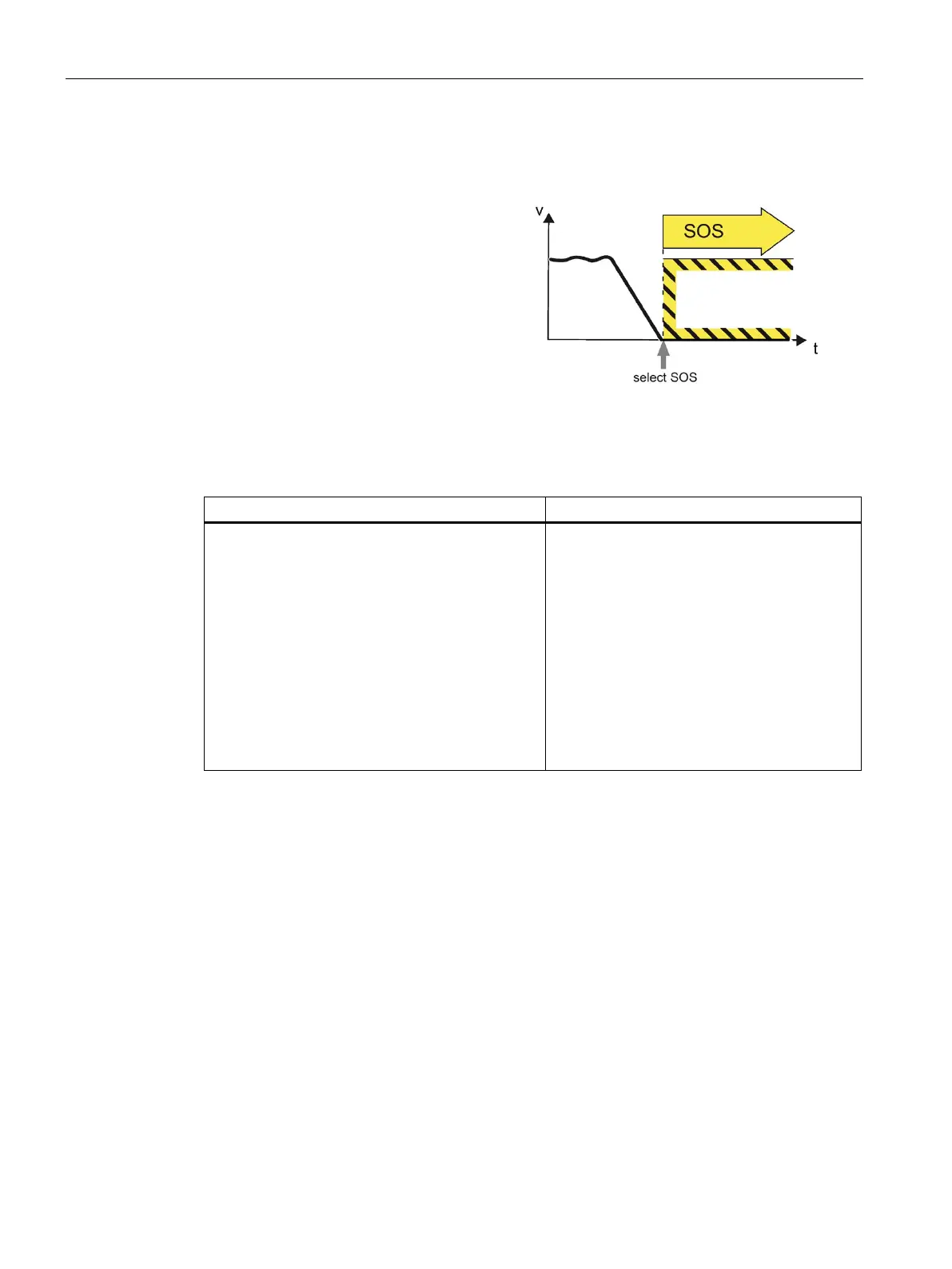

SOS Selection
Example of how the function can be used
Example
Possible solution
A protective door can only be opened if a machine
is in the safe standstill state.
• Stop the movement of the hazard from your
safety program.
• Ensure no further movement as follows:
– Engage/energize (brake/motor)
– Engage the safety related actuator
• Enable SOS monitoring in the counter mod-
ule via the safety program in the F-CPU
• Disable the door lock to permit access to the
machine
• Perform an appropriate safety reaction if the
"Safe Stop Event" ever occurs

Siemens SIMATIC ET 200SP Specifications

General

System Type	Distributed I/O System
Mounting	DIN Rail
Communication Protocol	PROFINET, PROFIBUS
IP Rating	IP20
Category	I/O Systems
Supply Voltage	24 V DC
Modularity	Yes
Hot Swapping	Yes
Storage Temperature	-40°C to +70°C
Digital Inputs	Yes
Digital Outputs	Yes
Analog Inputs	Yes
Analog Outputs	Yes
Communication Interface	PROFINET, PROFIBUS
Number of Modules	Up to 64
Relative Humidity	5 to 95% (non-condensing)
Operating Temperature	-25°C to +60°C
