4.7 Behavior at the counting limits
ET 200SP F-TM Count 1x1Vpp sin/cos HF (6ES7136-6CB00-0CA0)
48 Equipment Manual, V1.0, 01/2021, A5E47073911-AA
Examples

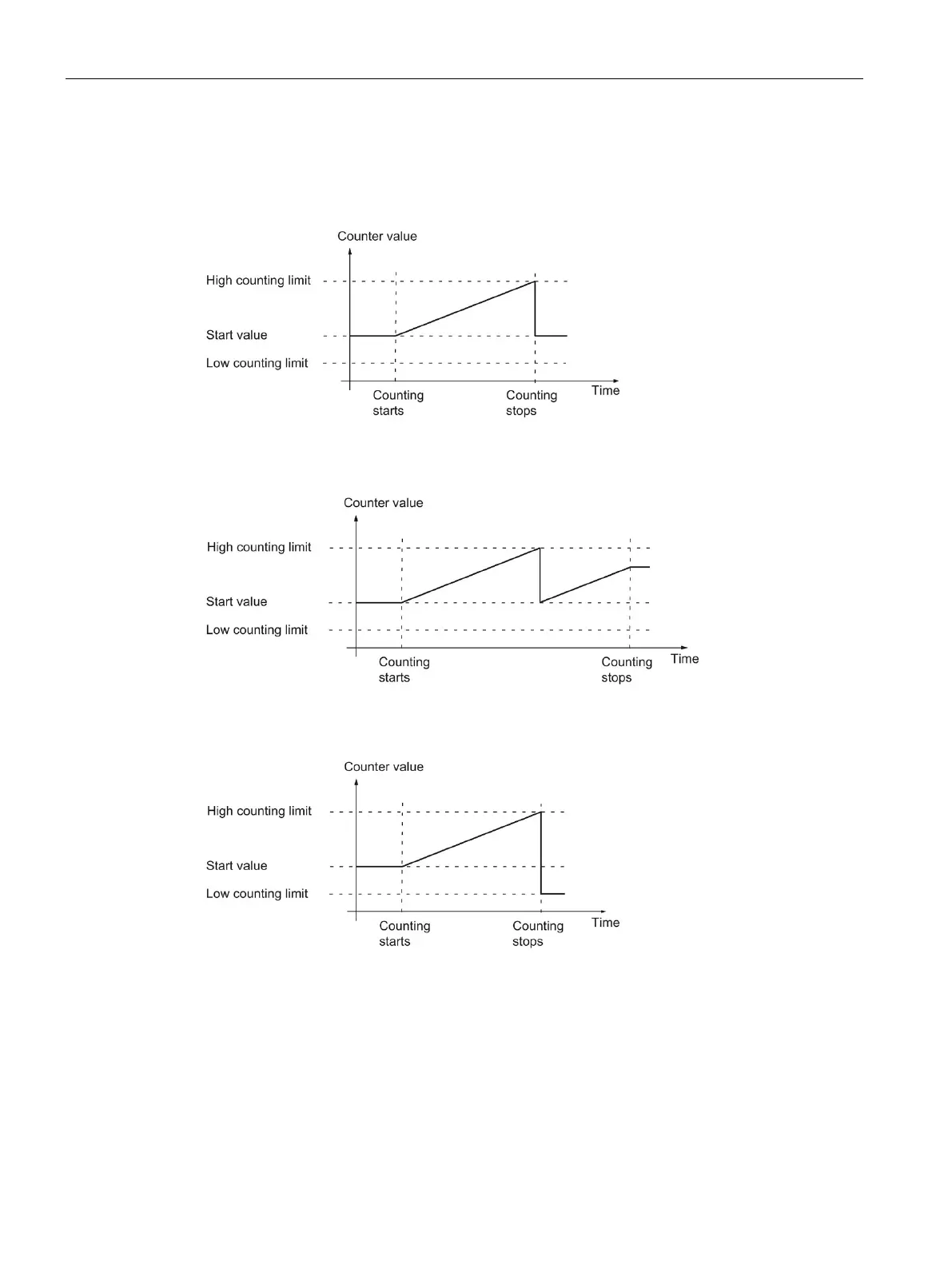

The figure below shows an example for terminating the counting process after an overflow
and setting the counter to the start value:
The figure below shows an example for continuing the counting process after an overflow
and setting the counter to the start value:
The figure below shows an example for terminating counting after an overflow and setting
the counter to the opposite counting limit:
