Connection Diagrams
B-5
FM 351 Positioning Module
C79000-G7076-C351-02
B.4 Connection Diagram for Absolute Encoder Siemens 6FX 2001-5
(Up=24V; SSI)
Connection Diagram

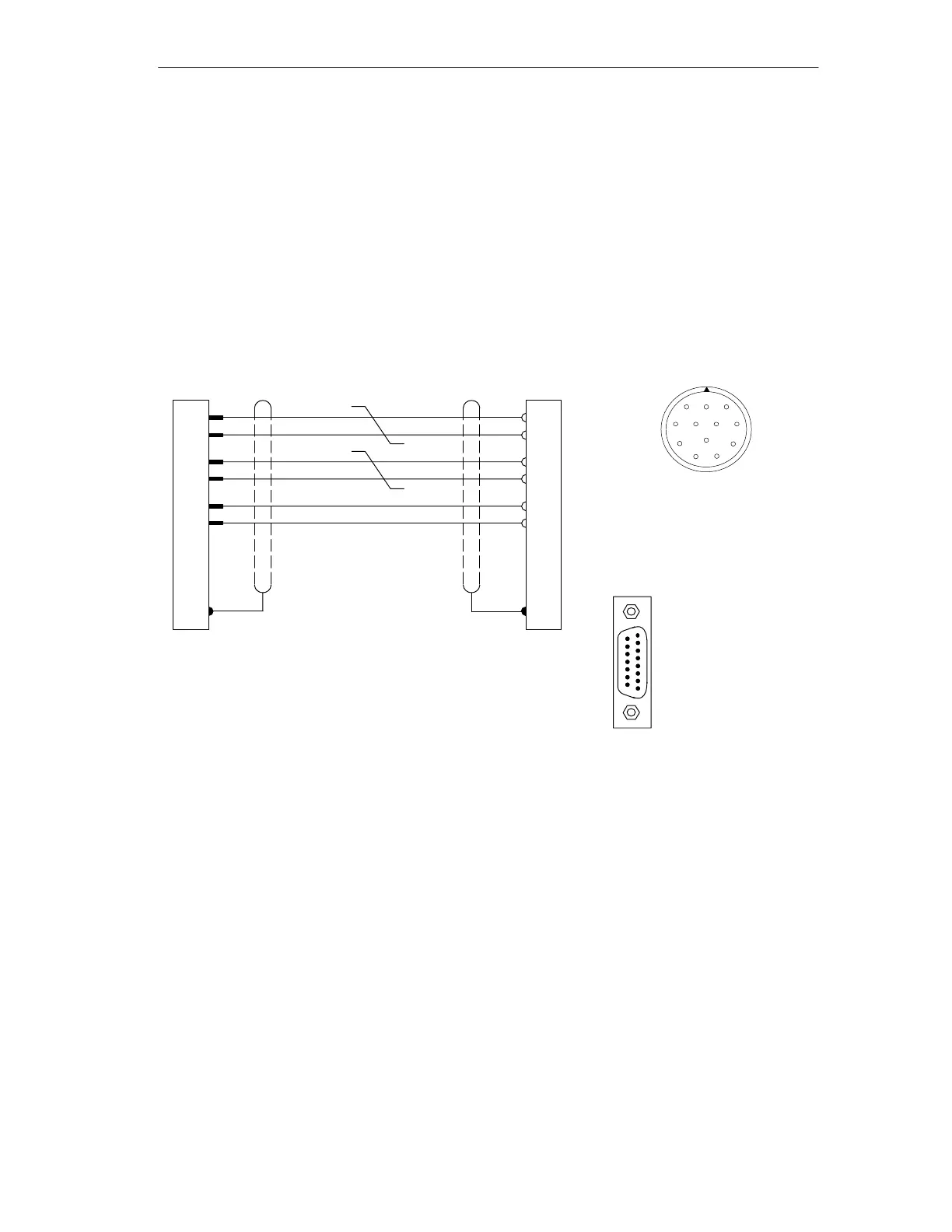

The following illustration shows the connecting diagram for the absolute encoder
Siemens 6FX 2001-5(Up=24 V; SSI):
Twisted pair
Round 12-pin socket
Siemens 6FX 2003-0CE12
solder side
1
2
3
45
6
7
8
9
10
11
12
15
14
2
3
7
5
CLS
FM 351 Encoder
+24 V
Shield on
housing
Wire 4 2 0.5 mm
2
Ground
CLS
DAT
DAT
3
4
2
1
12
11
15-pin
sub-D male
connector
Solder side metallized
casing secured by
screws
6FC9 341-1HC
15
9
8
1
Shield on
housing
