Siemens SIMATIC IPC327G - Interfaces of the Device

Overview
1.2 Structure of the devices
SIMATIC IPC327G
Operating Instructions, 09/2021, A5E51366275-AA
11

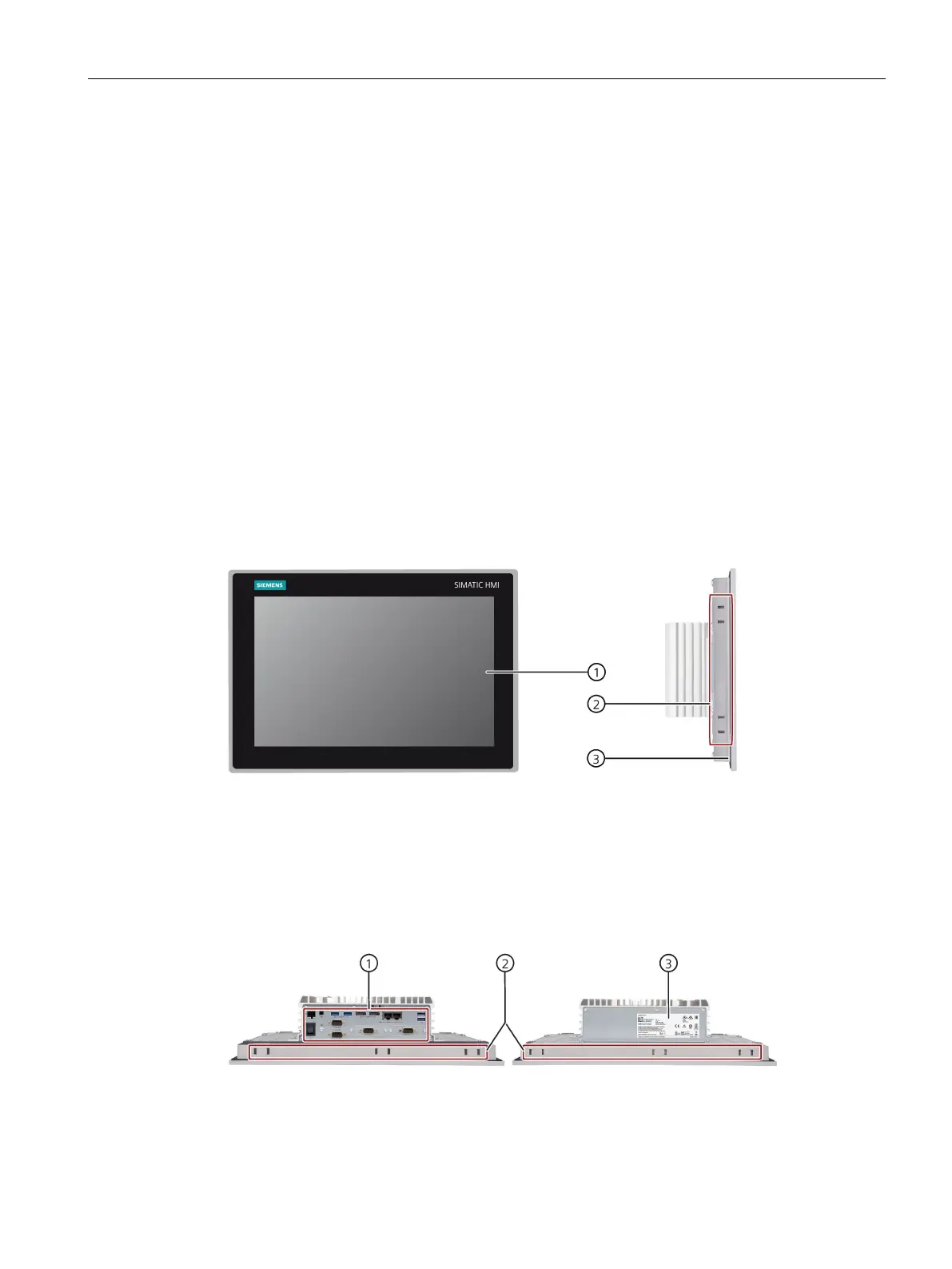

Bottom view
①
Function earth connection
②
Interfaces
1.2.2 Interfaces of the device
①
Power supply
Connection for a 24 V DC power supply
②
Audio (optional)
Connection for analog audio source and speaker
③
USB 3.1 port (X60/X61)
2 × USB 3.1 port, high current
④
DPP (X70/X71)
2 × DisplayPort connection
⑤
LAN (X1P1/X2P1)
2 × RJ45 Ethernet connections for 10/100/1000 Mbps
⑥
USB 3.1 port (X62/X63)
2 × USB 3.1 port, high current
⑦
COM (Optional)
2 × Serial interface, 9-pin RS232 D-sub connector
⑧
COM (X30/X31)
2 × Serial interface, 9-pin RS232/RS422/RS485 D-sub connector
⑨
Function earth
Connection for function earth
⑩
On/Off switch
Switch on; Switch off
