Siemens SIMATIC IPC327G

Installing and connecting the device

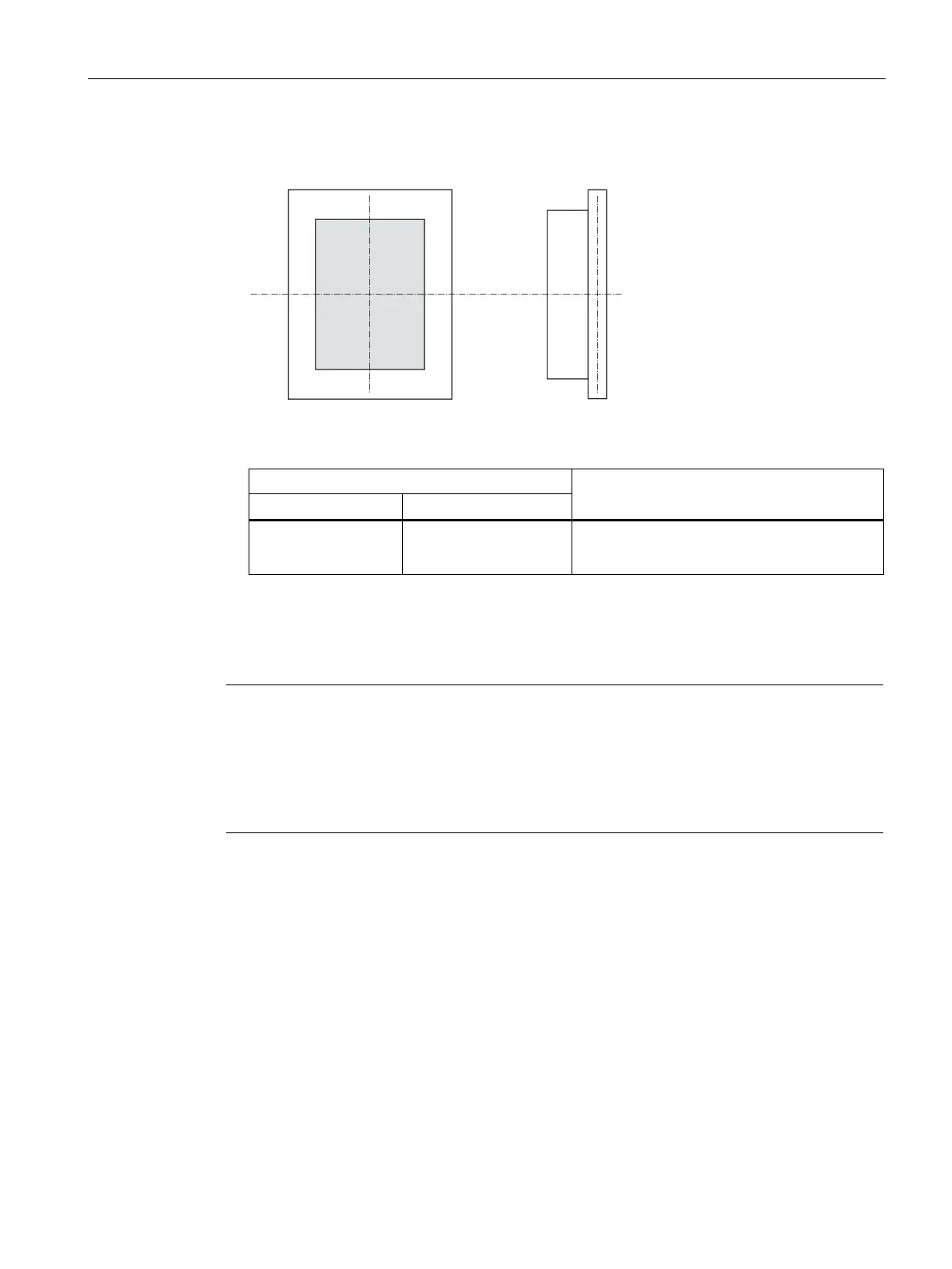

3.2 Mounting the device
SIMATIC IPC327G
Operating Instructions, 09/2021, A5E51366275-AA
23
NOTICE
Incorrect fixing elements
If you use anchors and screws other than those specified below for wall and vertical
mounting, safe mounting is not guaranteed. The device can fall and may be damaged.
Use only the anchors and screws specified in the following table.
Material
Bore diameter
Fixing element
Concrete
Select according to the
specification of the
mounting elements used
• Anchor, ∅ 6 mm, 40 mm long
• Screw, ∅ 4-5 mm, 40 mm long
Plasterboard,
min. 13 mm thick
Toggle plug, ∅ 12 mm, 50 mm long
Metal,
min. 2 mm thick
• Screw M4 × 15
• M4 nut
WARNING
Personal injuries or material damage in the case of insufficient load-bearing capacity
of wall
The device could fall if the wall to which it is mounted has insufficient load-
bearing capacity.
This can result in personal injuries or material damage.
Ensure that the wall is capable of bearing four times the total weight of the device
(including the brackets and expansion modules). The total weight of the device is
approximately 1.8 kg.
3.2.2 Mounting on a standard rail
Mounting on a standard rail is suitable for horizontal mounting of the device.
Requirements
• A SIEMENS 35 mm standard rail TH35-15 conforming to EN 60715:2001
The standard rail is mounted.
• A standard rail bracket
The standard rail bracket and two screws are included in the order variant "Standard rail
mounting".
• A T10 screwdriver
