SIMATIC IPC377G
Operating Instructions, 07/2022, A5E51366314-AB
43
Expanding and assigning parameters to the device
6
6.1 Open the device
Requirements
The device is disconnected from the power supply.
All connecting cables on the device are removed.
The device is removed from the cabinet.
A T10 and a T20 screwdriver
Procedure - Opening the device

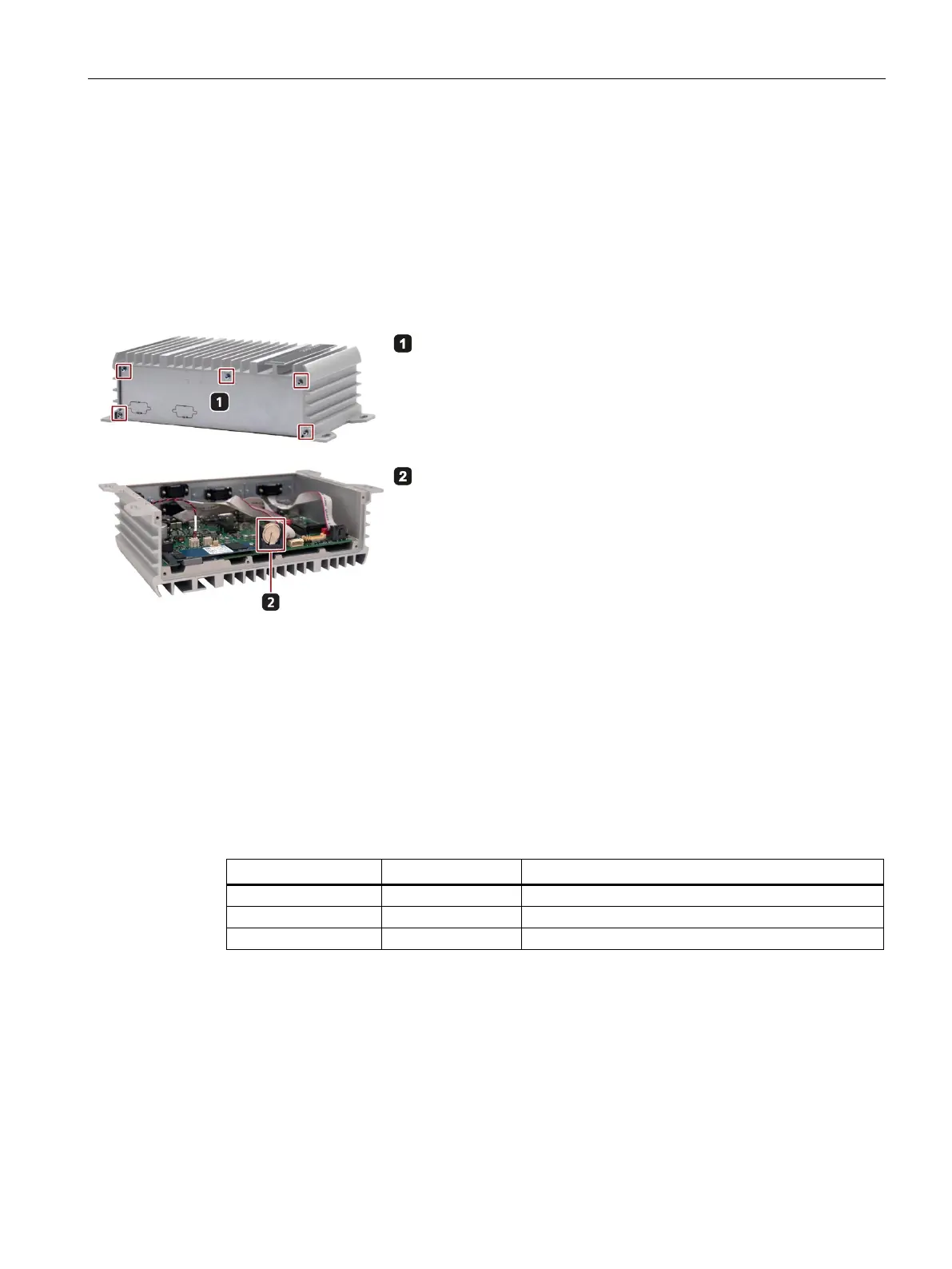

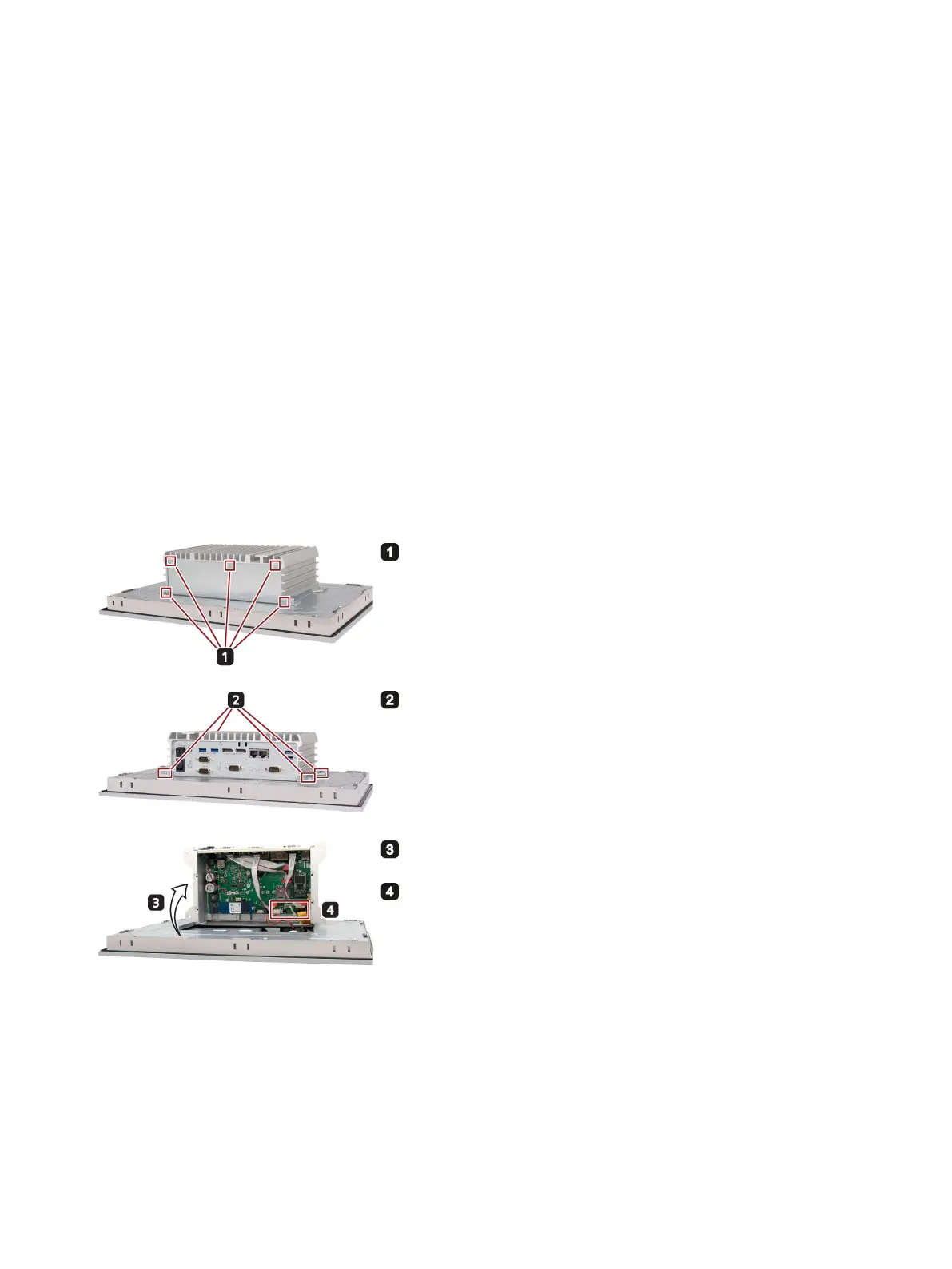

Unscrew the marked five screws with a T10 screwdriver on the shield of
the device, and remove the cover.
Unscrew the marked four screws with a T20 screwdriver on the back of
the panel PC.
Lift up the box PC from the touch panel.
Unplug the marked three cables on the motherboard.
Procedure - closing the device
To close the device, carry out the steps for opening the device in the reverse order.
