7.5.2.4 Ethernet port

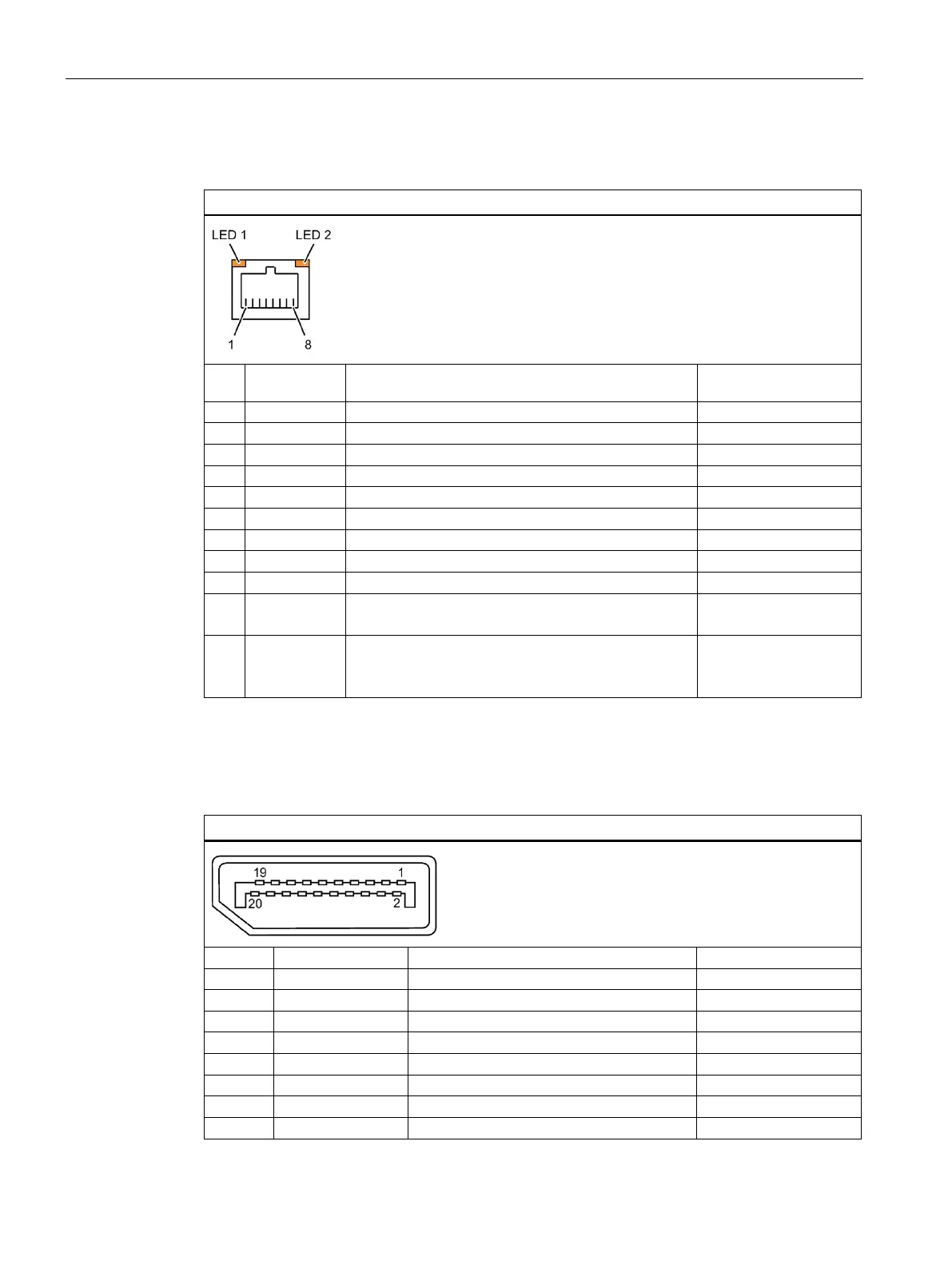

Ethernet RJ45 interface
Pin
no.
Short de-
scription
Meaning
Input / output
1
BI_DA+
Bi-directional data A+
Input/output
2
BI_DA-
Bi-directional data A-
Input/output
3
BI_DB+
Bi-directional data B+
Input/output
4
BI_DC+
Bi-directional data C+
Input/output
5
BI_DC-
Bi-directional data C-
Input/output
6
BI_DB-
Bi-directional data B-
Input/output
7
BI_DD+
Bi-directional data D+
Input/output
8
BI_DD-
Bi-directional data D-
Input/output
S
Shield
–
LED 1
Orange light:1000 Mbps
Off: Port is not active
–
LED 2 Orange light: Port is active but without data activity
Orange Blink: Port is active and there is data activity
Off: Port is not active
–
The Ethernet interface supports MDXI (auto crossover) for all transmission rates.
7.5.2.5 DisplayPort
DisplayPort interface
Pin no.
Abbreviation
Meaning
Input/output
1
ML_Lane 0+
DP data 0+
Output
2
GND
Ground
-
3
ML_Lane 0+
DP data 0+
Output
4
ML_Lane 1+
DP data 1+
Output
5
GND
Ground
-
6
ML_Lane 1-
DP data 1-
Output
7
ML_Lane 2+
DP data 2+
Output
8
GND
Ground
-
