Siemens SIMATIC IPC327G

Technical specifications
7.5 Hardware descriptions
SIMATIC IPC327G
Operating Instructions, 09/2021, A5E51366275-AA
67
DisplayPort interface
9
ML_Lane 2-
DP data 2-
Output
10
ML_Lane 3+
DP data 3+
Output
11
GND
Ground
-
12
ML_Lane 3-
DP data 3-
Output
13
CONFIG 1
CONFIG 1
-
14
CONFIG 2
CONFIG 2
-
15
AUX_CH+
Auxiliary channel+
Bidirectional
16
GND
Ground
-
17
AUX_CH-
Auxiliary channel-
Bidirectional
18
HPD
Hot Plug Detect
Input
19
GND
Ground
-
20
DP_PWR
+3.3 V (Power switch)
power out

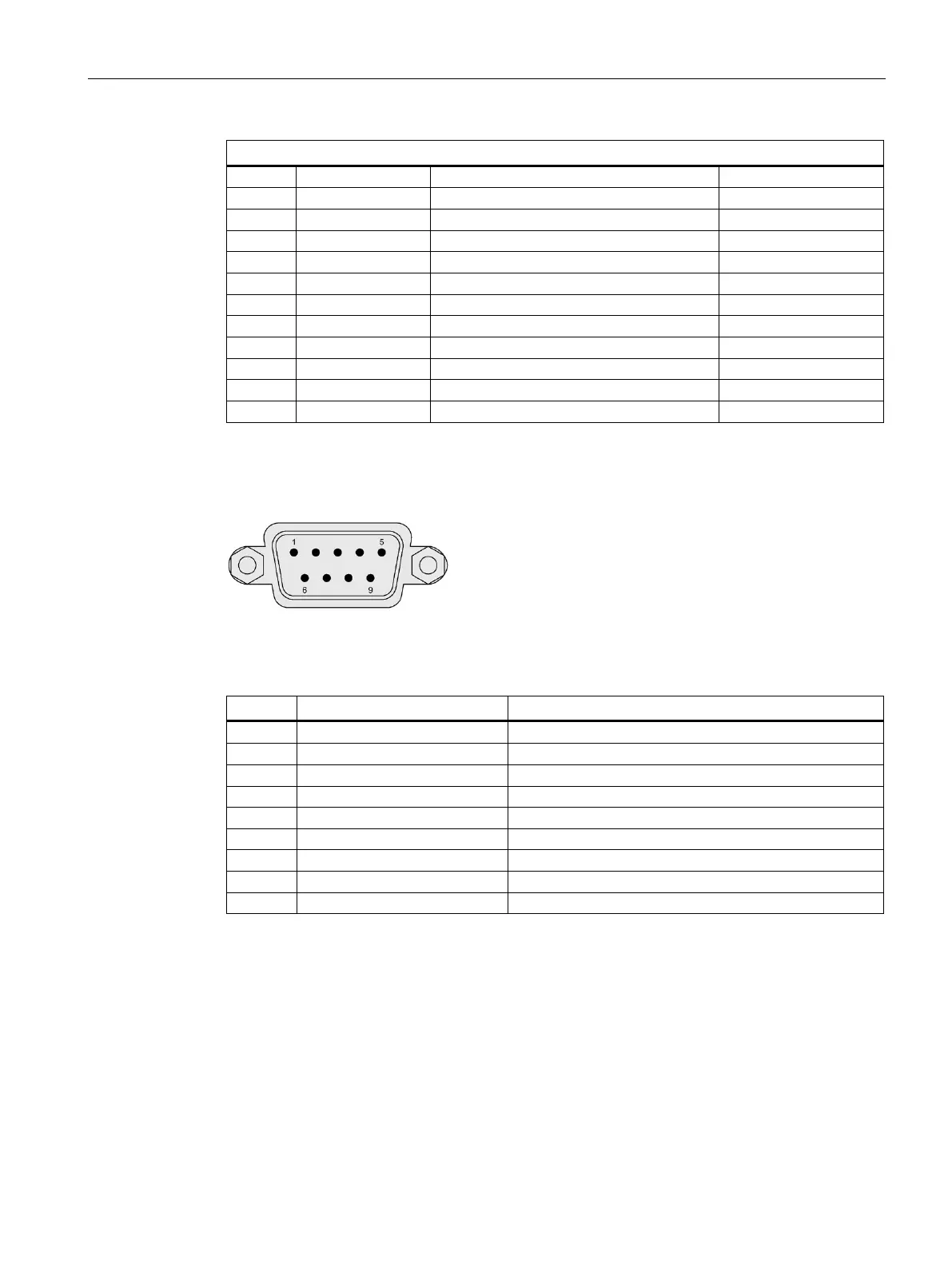

7.5.2.6 Serial interface
RS232
RS422
RS485
Pin assignment RS232
Pin
Short description
Meaning
1
DCD
Data carrier detect (I)
2
RxD
Received data (I)
3
TxD
Transmitted data (O)
4
DTR
Data terminal ready (O)
5
M
Ground
6
DSR
Data set ready (I)
7
RTS
Request to send (O)
8
CTS
Clear to send (I)
9
RI
Incoming call (I)
