5.2 Installing the M.2 Module
SIMATIC IPC327G
36 Operating Instructions, 09/2021, A5E51366275-AA

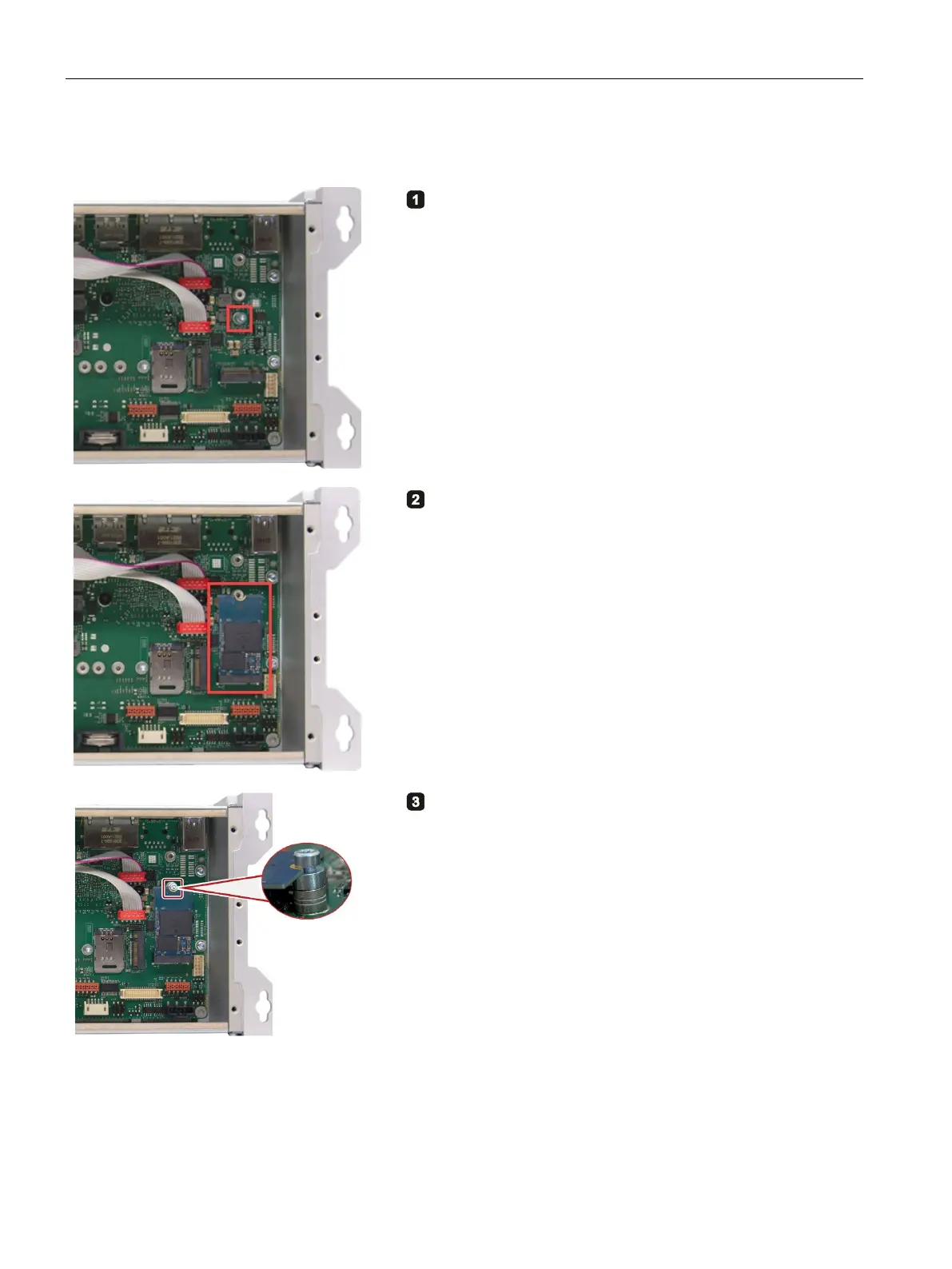

Procedure - Installing the M.2 Module
Unscrew the marked screw.
Align the golden finger on the M.2 Module on your
motherboard, and then press firmly until the M.2 Mod-
ule is completely seated on the slot.
Secure the M.2 Module with the screw which is un-
screwed in the first step.
Note: Make sure the M.2 Module board is located be-
tween head and spacer of assembly screw.
If the M.2 Module has a cable with an additional interface-card connected to the housing opening, you
need to do the following procedures:
