Expanding and assigning parameters to the device
5.3 Installing and removing M.2 NVMe/ SATA SSD
SIMATIC IPC327G
38 Operating Instructions, 09/2021, A5E51366275-AA

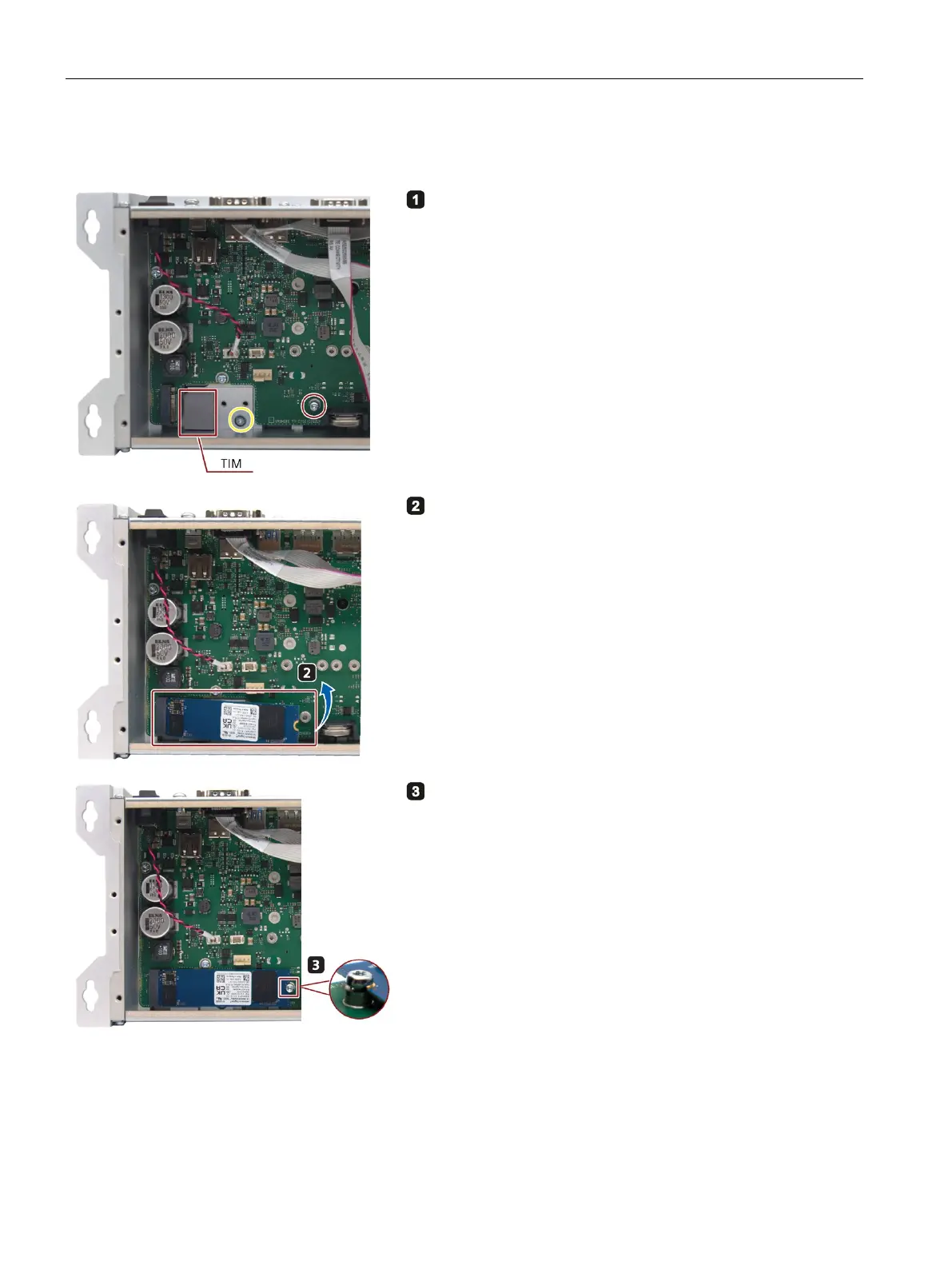

Procedure - installing the M.2 NVMe/SATA SSD
To install M.2 NVMe/SATA SSD with form factor 2280,
remove the screw marked in red.
To install M.2 NVMe/SATA SSD with form factor
2230/2242, remove the screw marked in yellow.
Note: Do not touch or remove the SSD Thermal Interface
Material (TIM) when installing the M.2 NVMe/SATA SSD.
Otherwise, it may result in the M.2 NVMe/SATA SSD mal-
function.
Align the golden finger on the M.2 NVMe/SATA SSD to the
motherboard, then press firmly until the M.2 NVMe/SATA
SSD is completely seated on the slot.
Secure the M.2 NVMe/SATA SSD with the screw which is
unscrewed in the first step.
Note: Make sure the M.2 NVMe/SATA SSD board is located
between head and spacer of assembly screw.
Procedure - removing the M.2 NVMe/SATA SSD
To remove the M.2 NVMe/SATA SSD, carry out the steps for installing the M.2 NVMe/SATA
SSD in the reverse order.
